9
7.Checktheexterioroftheterminationforbestt
and screw to exterior and caulk with high grade
exterior caulking.
8.Completeanyotherexterioruepipingneces-
sary, using 4" pellet venting.
9. Back inside, place the 2 halves of the interior
walltrimplateoveruepipe.Usingtheblack
pop rivets, fasten together, then slide it against
the wall and fasten it to the wall.
10. Replace the side door / rear cover assembly
with 6 black screws.
11. Complete the unit assembly and test.

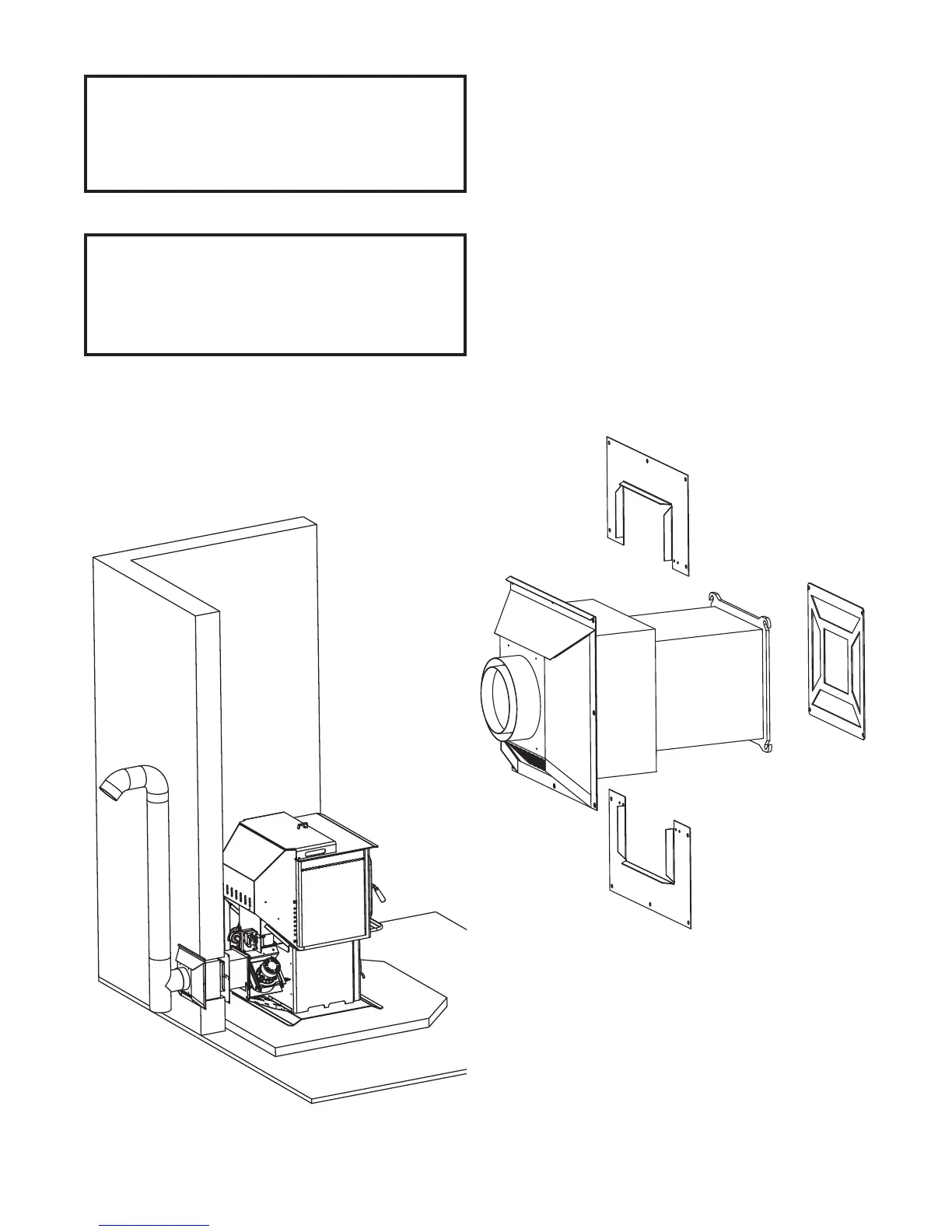

Wall Trim Plate
Wall Trim Plate
Gasket
Wall
Termiation
Installation
Open
CAUTION:
THE STRUCTURAL INTEGRITY OF THE
MOBILE HOME FLOOR, WALL, AND
CEILING/ROOF MUST BE MAINTAINED.
WARNING:
DO NOT INSTALL IN MOBILE
HOME SLEEPING ROOM
Standard Wall
Termination
g. 9
g. 8
