19

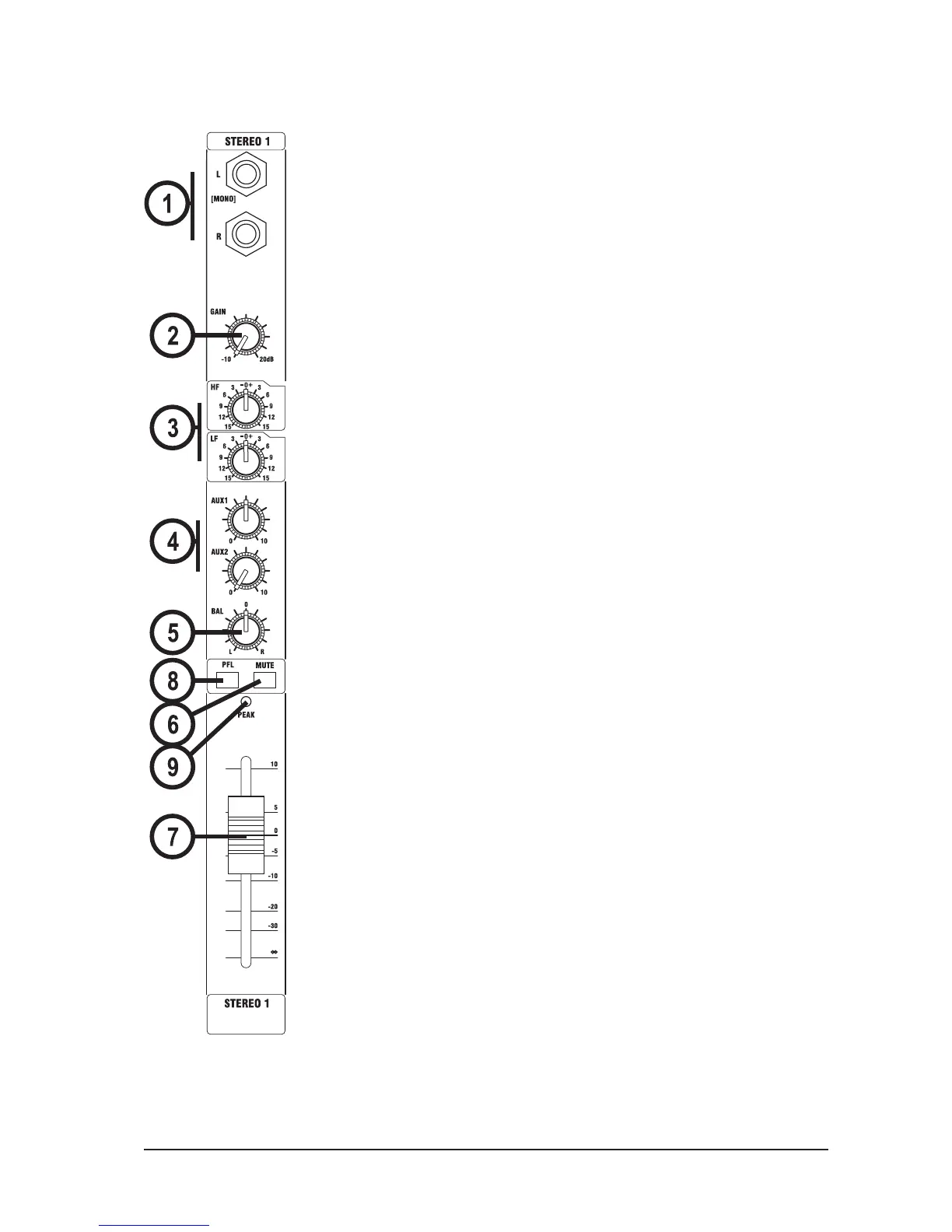

7 FADER
The 60mm FADER gives you smooth control of the overall signal level in the channel
strip, allowing precise balancing of the various source signals being mixed to the Master
Section. It is important that the input level is set correctly to give maximum travel on the
fader which should normally be used at around the “0” mark. See the “Initial Setup”
section on page 22 for help in setting the right level.
8 PFL
When the latching PFL switch is pressed, the pre-fade pre-mute signal is fed in mono to
the headphones, control room output and meters, where it replaces the MIX. The PFL
ACTIVE LED on the Master section illuminates to warn that a PFL is active. The Left
and Right meters display the PFL signal in mono. This is a useful way of listening to any
required input signal without interrupting the main mix, for making adjustments or tracing
problems.
9 CHANNEL PEAK LED
This LED will light when the signal level approaches clipping at any of the three monitored
points:
a) PRE-EQ
b) POST-EQ
c) POST-FADE
