13

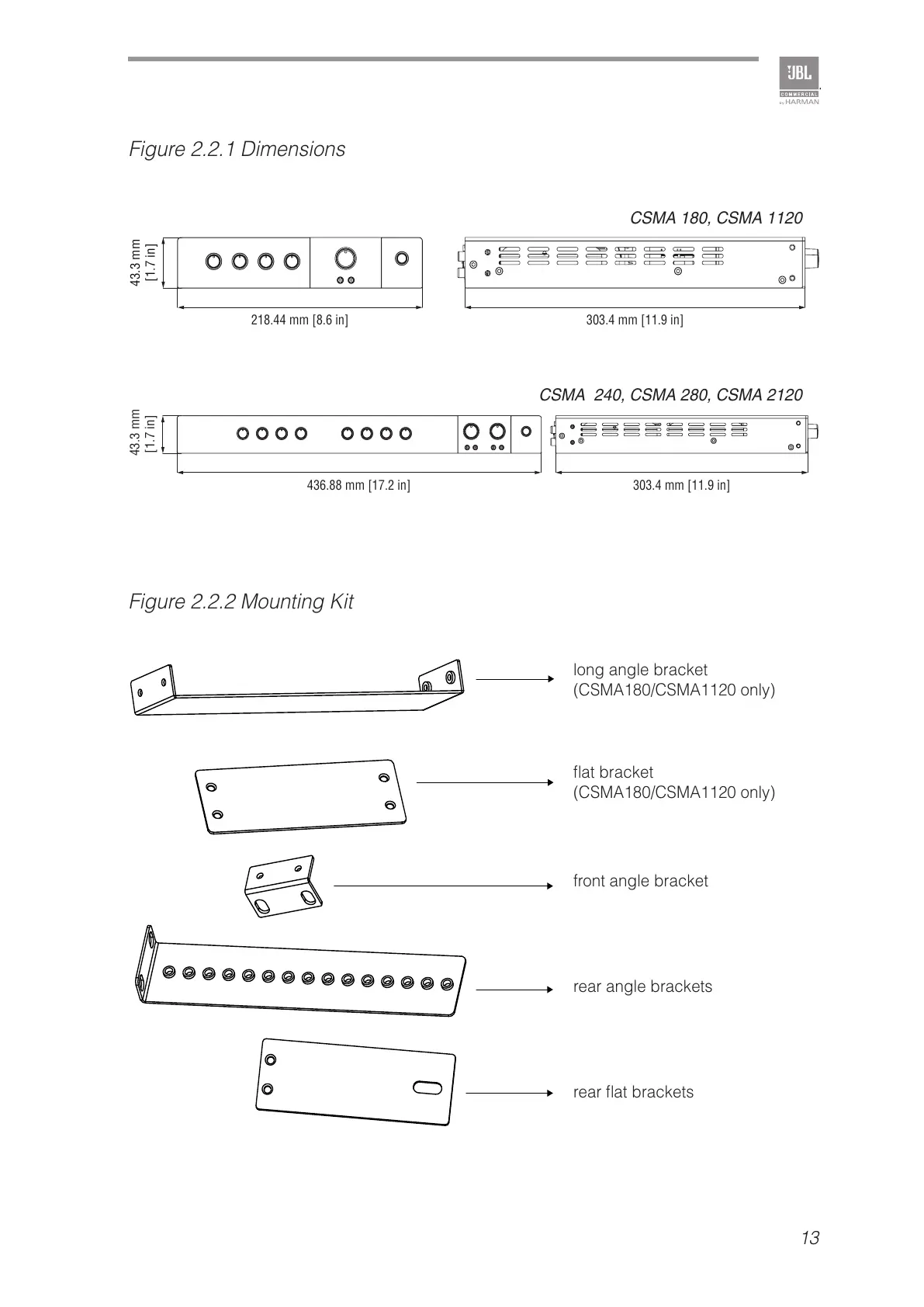

Figure 2.2.1 Dimensions
CSMA 180, CSMA 1120
CSMA 240, CSMA 280, CSMA 2120
Figure 2.2.2 Mounting Kit
long angle bracket
(CSMA180/CSMA1120 only)
flat bracket
(CSMA180/CSMA1120 only)
front angle bracket
rear angle brackets
rear flat brackets
218.44 mm [8.6 in]
303.4 mm [11.9 in]
43.3 mm
[1.7 in]
436.88 mm [17.2 in] 303.4 mm [11.9 in]
43.3 mm
[1.7 in]
