16
Solution C: Rack Mounting Full Rack Mixer Amplifier
To install a full-rack width unit, refer to Figure 2.2.5 and follow the steps below:
1. Attach the front angle brackets to each side of the front of the amplifier using the
screws provided.
2. Attach the rear flat brackets to each side of the rear of the amplifier with the
screws provided.
3. Install the unit into the cabinet using the rack mount screws through the front
angle brackets. For details of installation in the chassis of the cabinet, refer to
the user guide of your cabinet.
4. Align the rear angle brackets with the proper holes at the rear of the cabinet and
attach using rack mount screws.
5. With the rear angle brackets to the outside of the flat brackets, attach them each
using a screw passing through two washers, the rear flat bracket and the rear
angle bracket as shown in the figure.

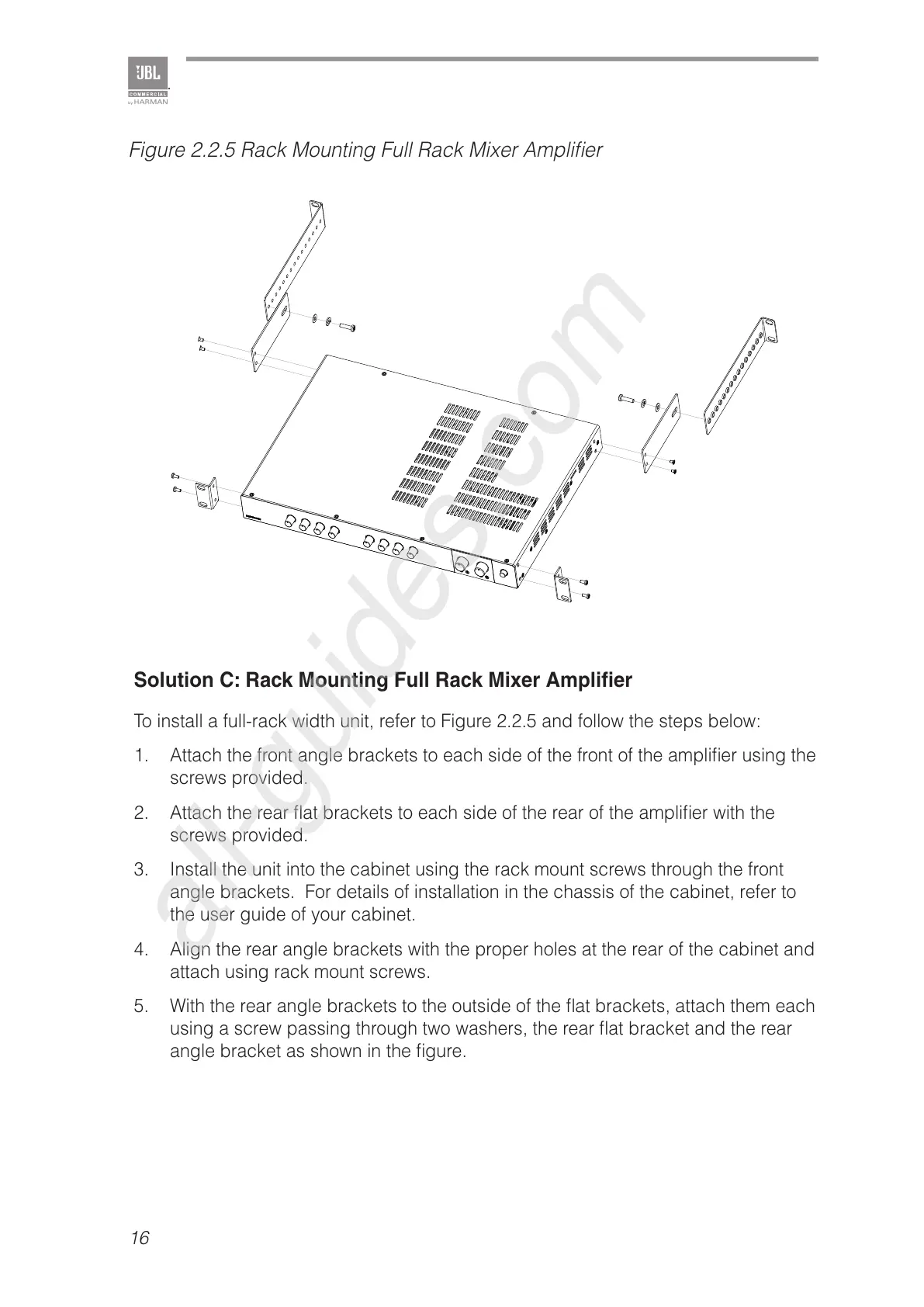

Figure 2.2.5 Rack Mounting Full Rack Mixer Amplifier
