Installing the Speakers
1. Follow the steps under Preinstallation Preparations that
apply to the installation.

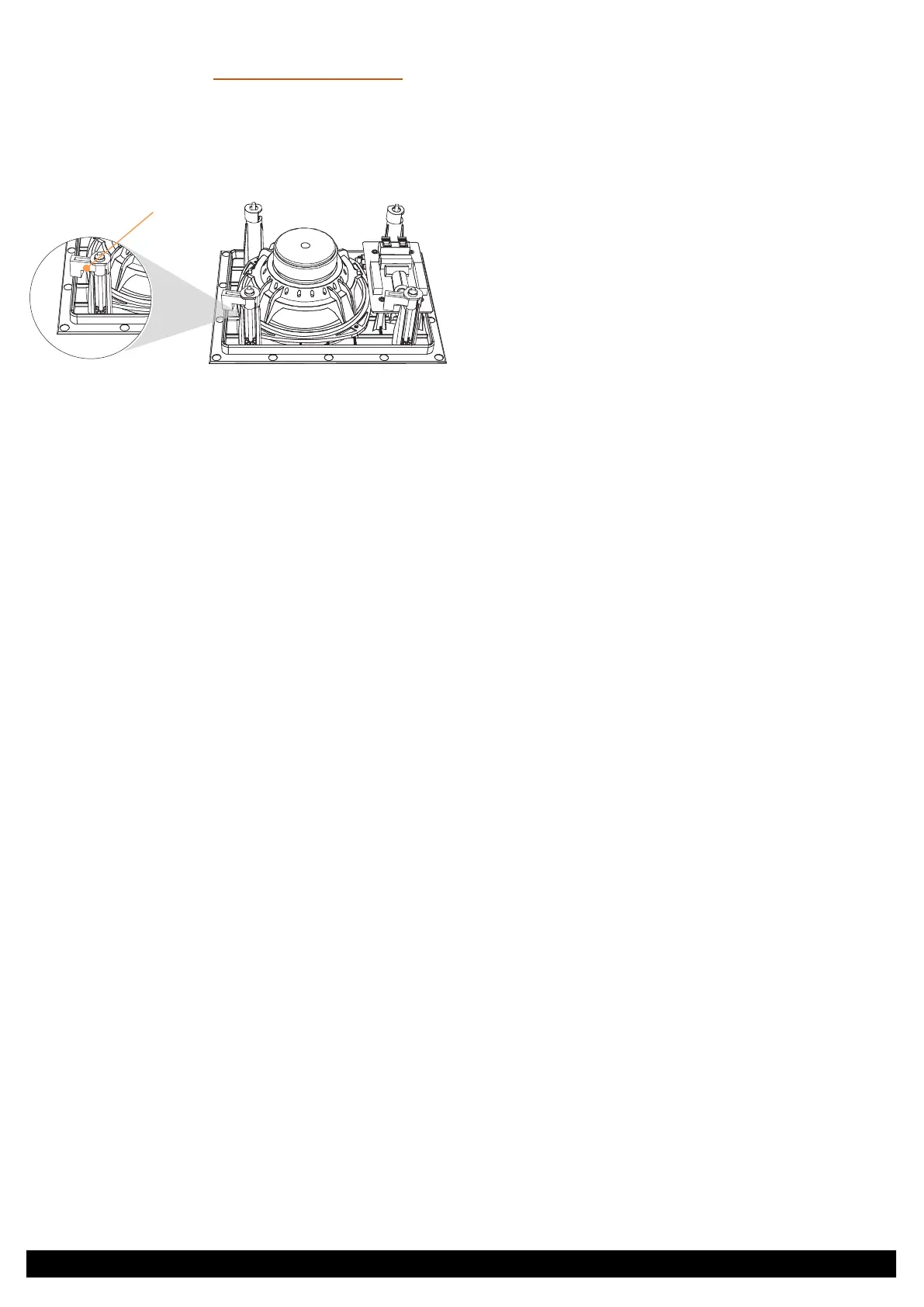

2. Set the XL-2 legs on the speaker to the installation
position. Must be inside the frame of the speaker in order
to install speaker into cutout.
XL-2 Leg inside
frame of speaker
3. Attach the included safety wire to a stud inside the wall/
ceiling near the side of the speaker with the safety ring
eyelet.
4. Pull wire through pre-construction bracket or hole in wall/
ceiling.
5. Strip ¼" (6.5mm) of insulation off each wire.
6. Starting with the negative terminal (black), gently press
down on each terminal, insert the wire, and release.
Repeat for the positive (red) terminal.
7. Installthespeakerintothecutout/bracket,holdrmlyto
wall, and tighten the screws for the XL-2 legs.
CAUTION!
Do
NOT
over tighten the screws as this can
strip the legs and cause the speaker to come
loose from the wall/ceiling.
8. Install the grille onto the speaker by gently placing it over
the speaker until the magnets click and pull the grille onto
speaker.
