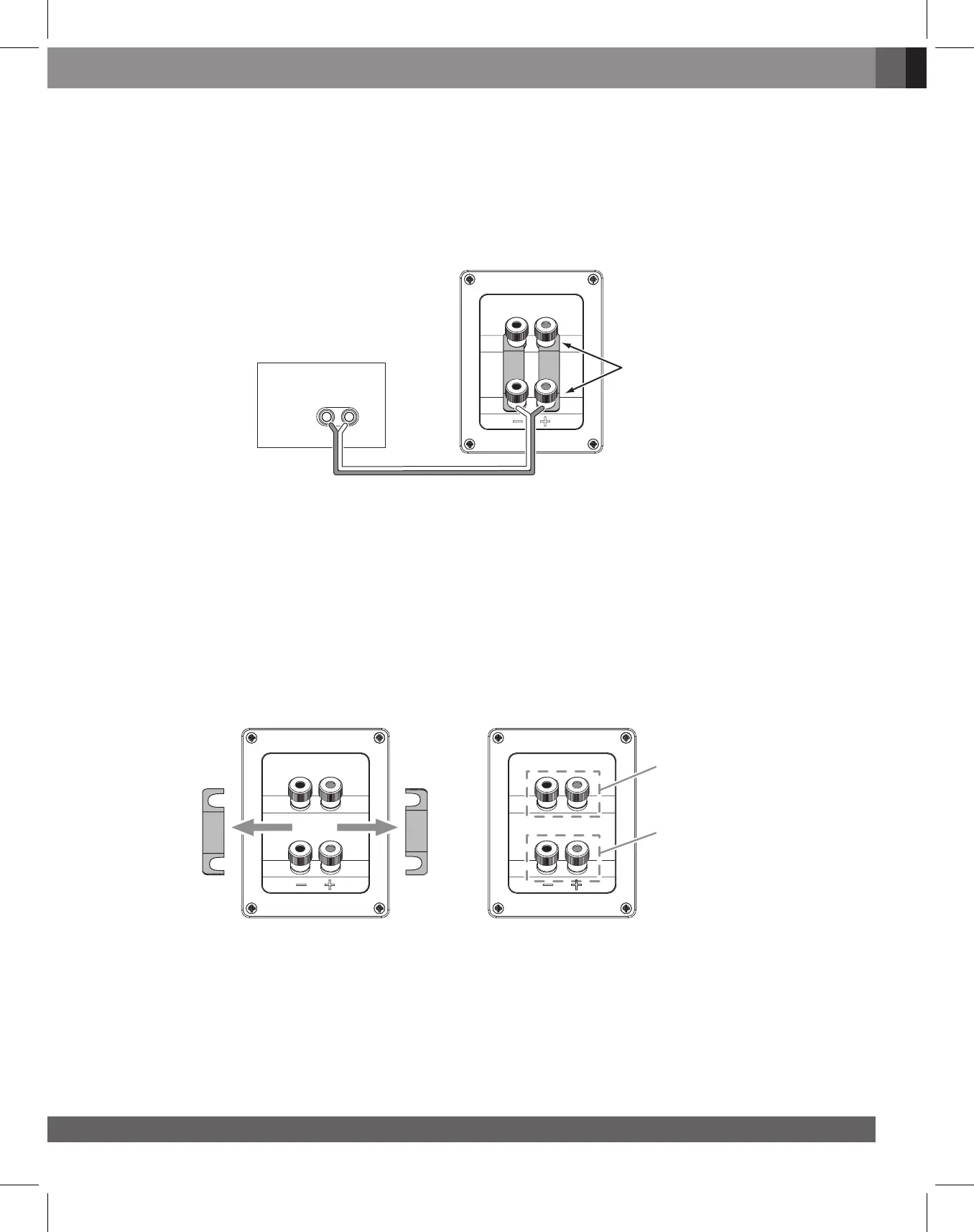

BASIC SINGLE-WIRE CONNECTION
To connect the speakers using a single wire, connect the amplifier to each speaker as shown in the illustration below.
You can use either set of connectors on the connector panel.
IMPORTANT: Do not remove the metal jumper bars from between the two sets of connectors when
connecting the speaker wires.
+–
Use Either Set
of Connectors
Do Not Remove
Jumper Bars
Receiver or Amplifier
(One Channel Shown)
Speaker
Connector Panel
BI-WIRE CONNECTION
Studio 698/690/680 speaker connector panels have two sets of input connectors that are joined by metal jumper
bars. The upper set of connectors is for the compression-driver/horn assembly, and the lower set of connectors is
for the woofer(s). This arrangement allows you to bi-wire the speakers using a single stereo amplifier or using two
stereo amplifiers. Bi-wiring can offer performance advantages and more flexibility in power-amplifier selection over a
conventional single-wire connection.
Before bi-wiring the speakers, remove the jumper bars.
Remove Jumper Bars
Compression Driver/
Horn Connectors
Woofer
Connectors
