QUICK START GUIDE
Thank you for choosing the JBL Professional VL 18. We know that you are looking forward to putting it in operation
as soon as possible, that is why you are reading this section. Next, we will help you install it as soon as possible.
Package Content
Your VL18-SUB system should include:
1 x VL18-SUB Box
1 x User´s Guide
1 x Power cable
Remove it from the Box
1)
Open the packaging top cover;
2)
Remove the top pad from the packaging;
3)
To remove the product from the packaging, we suggest:
- Tipping over the packaging to avoid unnecessary effort or removing the product from inside the packaging
with two people (able) using its handles.

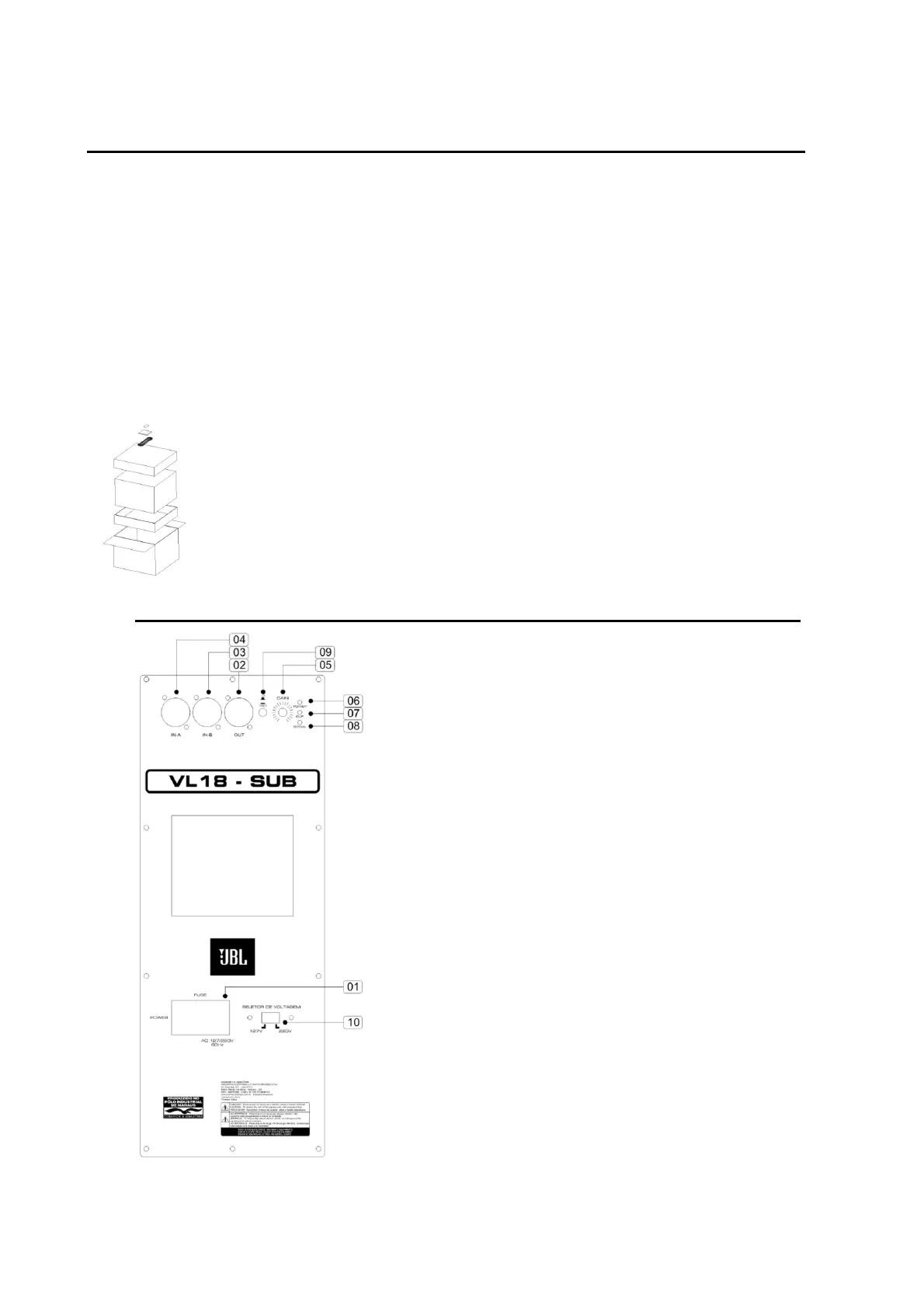

REAR PANEL
01)
ON/OFF Key – Turns the amplifier on and off
AC IN - AC / FUSE power input - 3.15A fuse.
02)
OUT - Balanced XLR line output.
03)
IN-B - Balanced XLR line input.
04)
IN-A - Balanced XLR line input.
05)
GAIN - This potentiometer adjusts the gain of the amplifier.
06)
POWER – This LED indicates the amplifier is on.
07)
CLIP - This LED, when flashing slightly, indicates that the
amplifier is operating at its distortion limit. (You shall never operate the
amplifier when this LED is lit or with severe clip).
08)
SIGNAL - This LED indicates that the signal is
reaching the amplifier.
09)
0 ° or 180 ° phase rotation switch.
10)
127 / 220V-50 / 60Hz Voltage selector switch
