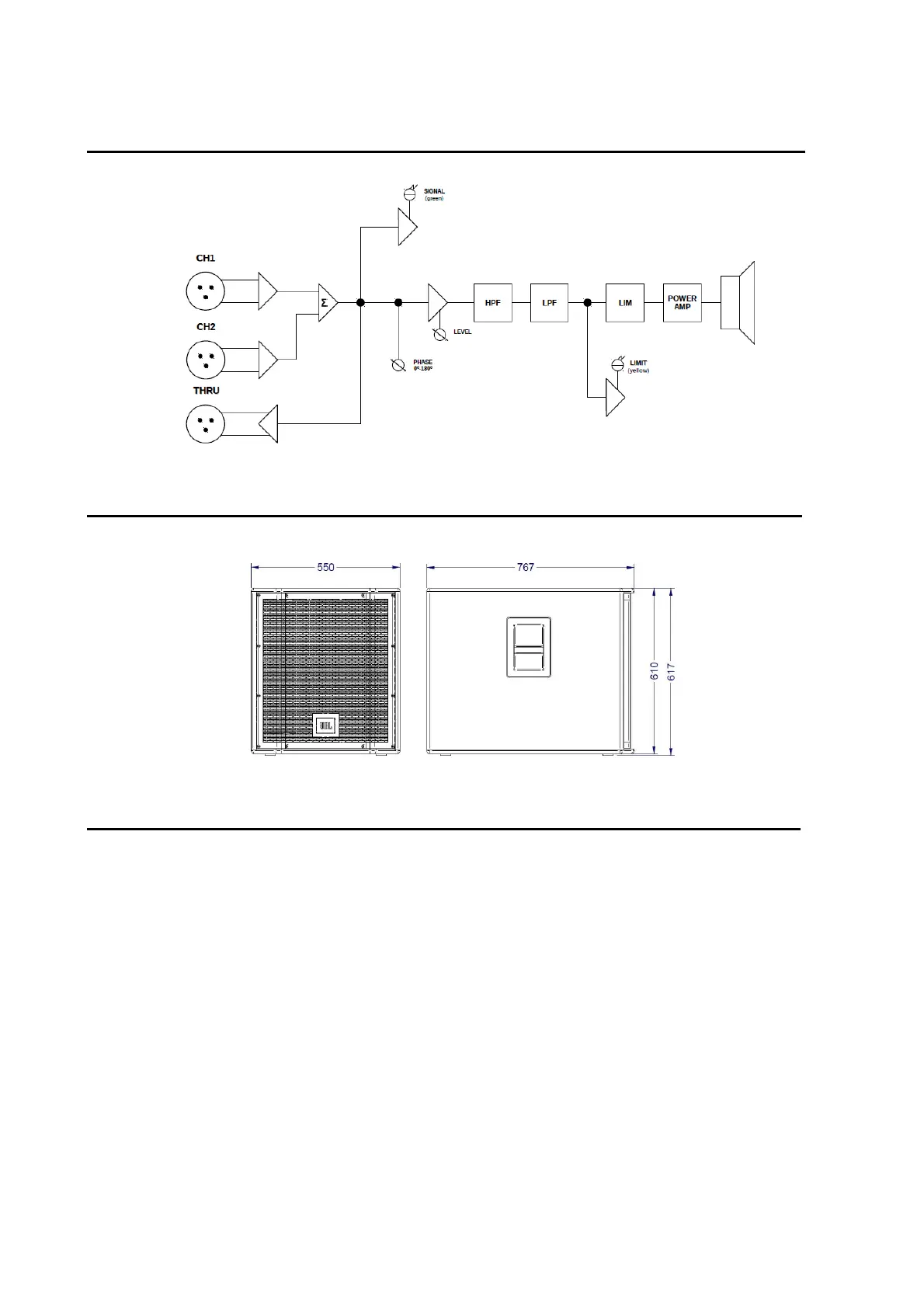

ELECTRIC DIAGRAM
VL 18-SUB BOX DIMENSIONS
VL18-SUB SPECIFICATIONS
System Specifications
System Type: Subwoofer Box
Number of copies: 1
Amplifier: Class D
Input impedance: 20KΩ (Balanced)
Line input gain: Sensitivity + 4dBu / maximum input of + 14dBu LED
Indicators: Power supply, Sign, Limit
Cooling: Passive (without fans)
AC input: 100-127VAC or 210-240VAC 50 / 60Hz (Manual Selector -
item 10, page 5)
Power (RMS): 18SW5P-4R - 700W
Power (Peak): 18SW5P-4R - 1400W
Frequency response (±10 dB): 31Hz - 150Hz
Maximum SPL (Calculated): 125.4dB
Maximum Piling: 3 boxes
Weight per box (kg): 53Kg
Basic Dimensions (LxHxD) mm: 550x610x767
