Harman P42i-TC Installation Manual

Harman® • P42i Pellet Insert Installation Manual • 2023 -___ • 08/2314 8742-901D
Installing the P42i-TC Pellet Insert into a Harman Zero Clearance Cabinet
Ifyoudon’thaveafactorybuiltreplaceormasonryreplace,theP42i-TCPelletInsertcanalsobeinstalledintotheHarman
ZeroClearanceCabinet,Part#1-00-574323.Thisistheonly permissiblewaytoinstalltheP42i-TCPelletInsertwithouta
suitablereplace.AftertheHarmanZeroClearanceCabinetisinstalled,typePLventpipe,wallpass-throughandterminations
areused(Note:Flexpipeisnotapprovedinthesetypesofinstallation).Detailedinstallationinstructionsareincludedwith
theZeroClearanceCabinet.Thesesameinstallationinstructionscanalsobefoundon-lineatwww.harmanstoves.com.

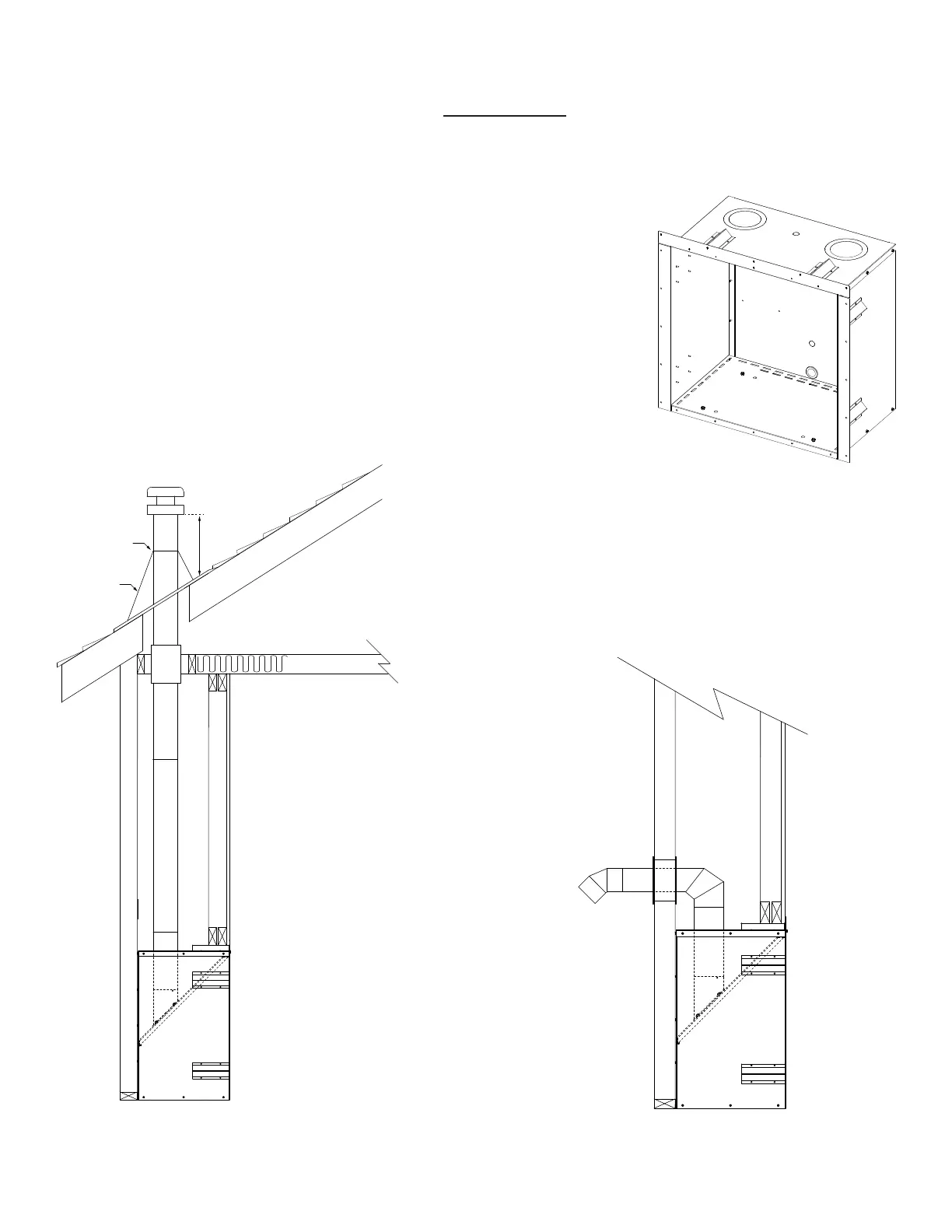

BelowaretwosampleinstallationsusingtheHarmanZeroClearanceCabinet.
12”
Min
Storm Collar
Flashing
PLVentPipeinstalledthroughaceiling.
PLVentPipeinstalledthroughanexteriorwall
HarmanZeroClearanceCabinet
Requirements for Terminating the Venting through an
Exterior Wall.
The clearance to a window or door that may be opened must
beaminimumof48"tothesideand48"belowthewindow/
door, and 12" above the window/door. (with outside air
installed, 12” to the side or below)

Harman P42i-TC Specifications

General

Brand	Harman
Model	P42i-TC
Category	Indoor Fireplace
Language	English
