HLP 4200 Instruction Manual
Harmonic
Llghrwaves
1.0

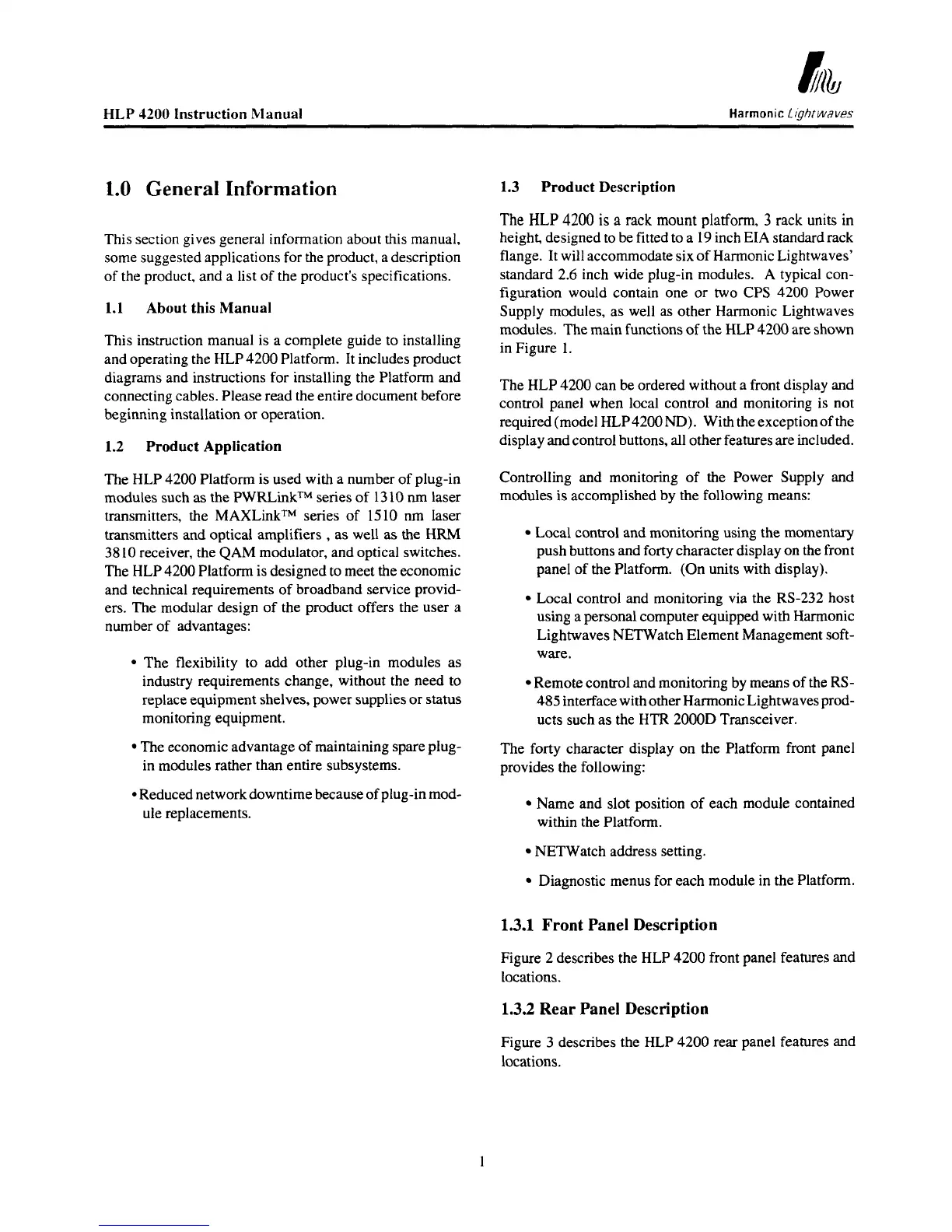

General Information
This section gives general information about this manual,
some suggested applications for the product, a description
of the product, and a list of the product's specifications.
1.1
About this Manual
This instruction manual is a complete guide to installing
and operating the HLP 4200 Platform. It includes product
diagrams and instructions for installing the Platform and
connecting cables. Please read the entire document before
beginning installation
or
operation.
1.2
Product Application
The HLP 4200 Platform is used with a number of plug-in
modules such as the PWRLinkrM series of 1310
nm
laser
transmitters, the MAXLinkTM series of 1510 nm laser
transmitters and optical amplifiers
,
as well as the HRM
38
10
receiver, the
QAM
modulator, and optical switches.
The HLP 4200 Platform is designed to meet the economic
and technical requirements of broadband service provid-
ers. The modular design of the product offers the user a
number of advantages:
The flexibility to add other plug-in modules as
industry requirements change, without the need to
replace equipment shelves, power supplies
or
status
monitoring equipment.
The economic advantage of maintaining spare plug-
in modules rather than entire subsystems.
*Reduced network downtime because of plug-in mod-
ule replacements.
1.3
Product Description
The
HLP
4200
is
a
rack
mount
platform,
3
rack
units
in
height, designed to be fitted to a 19 inch EIA standard rack
flange. It will accommodate six of Harmonic Lightwaves'
standard 2.6 inch wide plug-in modules. A typical con-
figuration would contain one
or
two
CPS
4200
Power
Supply modules, as well as other Harmonic Lightwaves
modules. The main functions
of
the HLP 4200 are shown
in Figure
1.
The HLP 4200 can be ordered without a front display and
control panel when local control and monitoring is not
required (model HLP4200ND). With the exceptionof the
display and control buttons,
all
other features are included.
Controlling and monitoring of the Power Supply and
modules is accomplished by the following means:
Local control and monitoring using the momentary
push buttons and forty character display on the front
panel of the Platform.
(On
units with display).
Local control and monitoring via the RS-232 host
using a personal computer equipped with Harmonic
Lightwaves NETWatch Element Management soft-
ware.
Remote control and monitoring by means of the RS-
485 interface with other Harmonic Lightwaves prod-
ucts such as the HTR 2000D Transceiver.
The forty character display
on
the Platform front panel
provides the following:
Name and slot position
of
each module contained
within the Platform.
NETWatch address setting.
Diagnostic menus for each module in the Platform.
1.3.1 Front Panel Description
Figure 2 describes the HLP
4200
front panel features and
locations.
1.3.2 Rear Panel Description
Figure
3
describes the HLP 4200 rear panel features and
locations.
