18 5000/5100 Series Digital Analog Clocks Installation and Operation Manual
Chapter 2: ADC-5100 Series Analog Digital Clocks
Installation
Wall Mounting

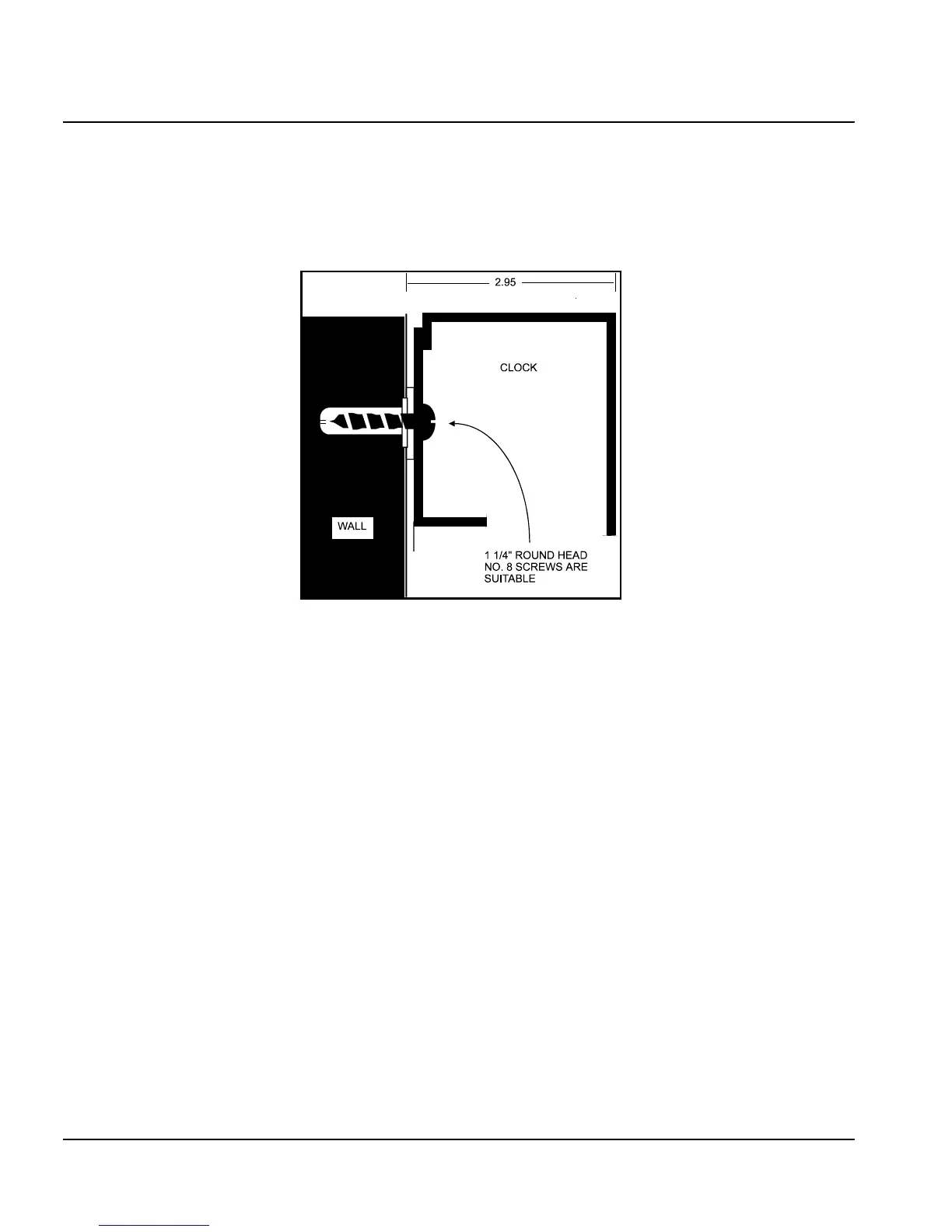

Figure 2-4. Typical Wall Mounting
The ADC-5108, ADC-5112, and ADC-5116 Analog Digital Clocks are
designed for wall mounting. Rack mounting kits are optional.
The rear panels of both the ADC-5112 and ADC-5116 clocks are
provided with four rubber feet and four keyholes, while the ADC-5108
has only three keyholes. These are dimensioned for #8 screws. The rear
panel of all three clocks is recessed for connectors, and to allow the
clock to be placed close to the wall.
