8297108001 ..... INDUCTOR, 2-1/2 TURN ............... 3.0 EA
8297108002 ..... INDUCTOR, 1-1/2 TURN ............... 1.0 EA
8297210001 ..... REF DWG., COIL HEIGHT ............. 0.0 EA
839 5156 001 ..... PWB, LPF/DIRECT COUPLER. . . . . . . . .. 1.0 EA
8395303001 ..... SCHEM, LOW PASS FILTER ........... 0.0 EA
8433817001 ..... COVER LPF / DIR COUPLER. . . . . . . . . .. 1.0 EA
9172162001 .. ". SPACER ........................... 1.0 EA
999 1902 001 ..... HARDWARE LIST.. .. .. .. .. .. .. .. .... 1.0 EA
999 2107 001 ..... WIRE LIST.. .. .. .. .. .. .. .. .. .. .. .... 1.0 EA
L1 L2 L4
L3

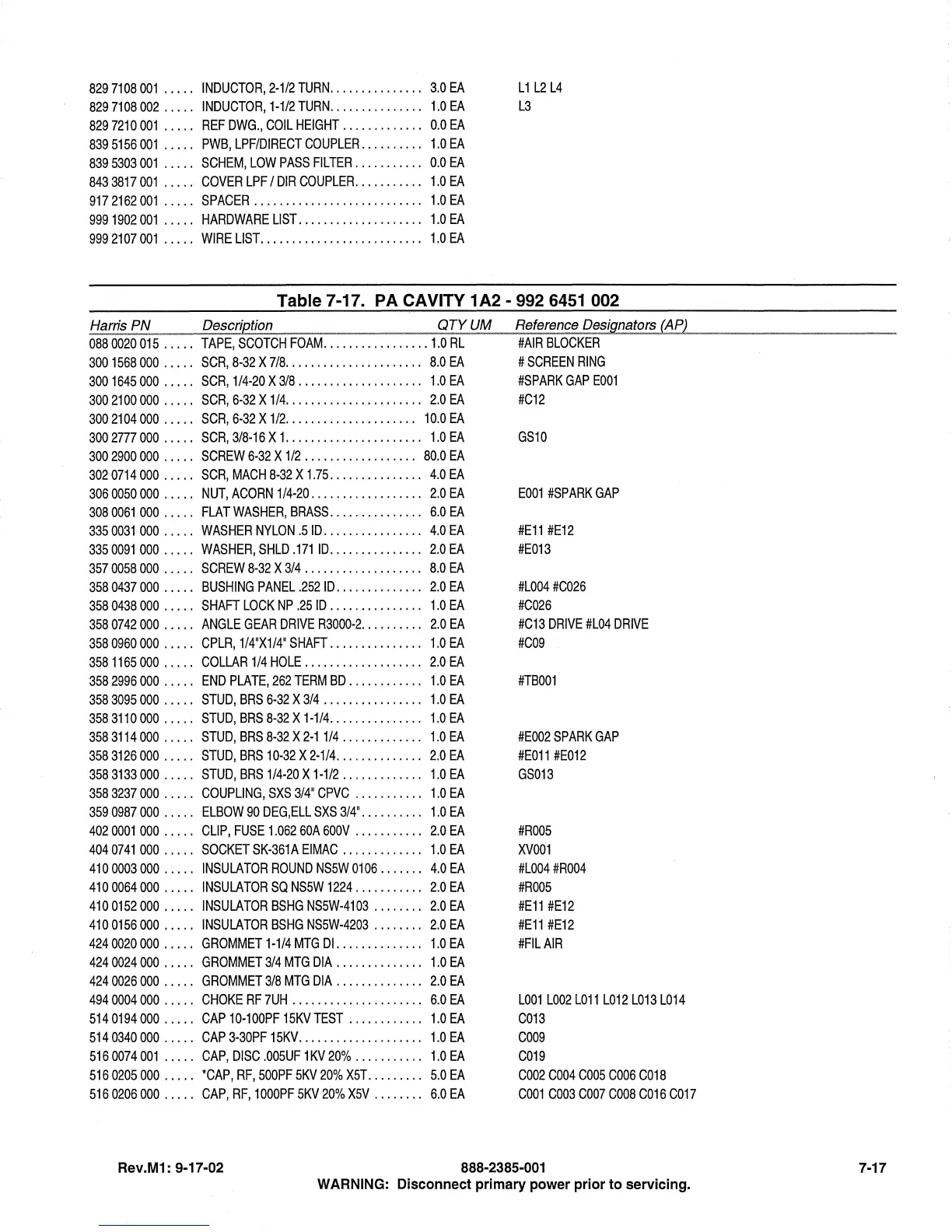

Table 7-17. PA CAVITY 1A2 - 992 6451 002
Harris PN Description QTY UM
088 0020 015 . . . . . TAPE, SCOTCH FOAM ................. 1.0 RL
300 1568 000 .. ... SCR, 8-32 X 7/8.. .. .. .. .. .. .. .. .. .... 8.0 EA
3001645000 ..... SCR, 1/4-20 X 3/8 .. .. .. .. .. .. .. .. .... 1.0 EA
3002100000 ..... SCR, 6-32 X 1/4 ...................... 2.0 EA
3002104000 ..... SCR, 6-32 X 1/2.. .. .. .. .. .. .. .. .. ... 10.0 EA
300 2777 000 .. ... SCR, 3/8-16 X 1.. .. .. .. .. .. .. .. .. .... 1.0 EA
3002900000 ..... SCREW 6-32 X 1/2 .................. 80.0 EA
302 0714 000 .. ... SCR, MACH 8-32 X 1.75.. .. .. .. .. .. ... 4.0 EA
3060050000 .... , NUT, ACORN 1/4-20. . . . . . . . . . . . . . . . .. 2.0 EA
3080061 000 ..... FLAT WASHER, BRASS ............... 6.0 EA
3350031000 .... , WASHER NYLON .5ID ................ 4.0 EA
3350091000 ..... WASHER, SHLD .171ID ............... 2.0 EA
3570058000 . . . .. SCREW 8-32 X 3/4 . . . . . . . . . . . . . . . . . .. 8.0 EA
3580437000 . . . .. BUSHING PANEL .252ID. . . . . . . . . . . . .. 2.0 EA
358 0438 000 . . . .. SHAFT LOCK NP .25 ID . . . . . . . . . . . . . .. 1.0 EA
3580742000 ..... ANGLE GEAR DRIVE R30oo-2 .......... 2.0 EA
3580960000 . . . .. CPLR, 1/4"X1/4" SHAFT. . . . . . . . . . . . . .. 1.0 EA
358 1165 000 . .. .. COLLAR 1/4 HOLE. . .. . . .. . .. . . .. . ... 2.0 EA
3582996000 ..... END PLATE, 262 TERM BD.. .. .. .. .... 1.0 EA
358 3095 000 . . . .. STUD, BRS 6-32 X 3/4 . . . . . . . . . . . . . . .. 1.0 EA
3583110000 ..... STUD, BRS 8-32 X 1-1/4 ............... 1.0 EA
358 3114 000 .. ... STUD, BRS 8-32 X 2-1 114 .. .. .. .. .. ... 1.0 EA
358 3126 000 .... , STUD, BRS 10-32 X 2-1/4. . . . . . . . . . . . .. 2.0 EA
3583133000 ..... STUD, BRS 1/4-20 X 1-1/2 .. .. .. .. .. ... 1.0 EA
358 3237.000 . . . .. COUPLING, SXS 3/4" CPVC ,.......... 1.0 EA
359 0987 000 . . . .. ELBOW 90 DEG,ELL SXS 3/4" . . . . . . . . .. 1.0 EA
402 0001 000 .... , CLIP, FUSE 1.062 60A 600V .... .. .. ... 2.0 EA
404 0741 000 .. ... SOCKET SK-361 A EIMAC .. .. .. .. .. ... 1.0 EA
4100003000 ..... INSULATOR ROUND NS5W 0106 ....... 4.0 EA
4100064000 ..... INSULATOR sa NS5W 1224 , .......... 2.0 EA
4100152000 ..... INSULATOR BSHG NS5W-4103 ........ 2.0 EA
4100156000 ..... INSULATOR BSHG NS5W-4203 ...... " 2.0 EA
4240020000 ..... GROMMET 1-1/4 MTG DI.. .. .. .. .. .... 1.0 EA
4240024 000 .. ... GROMMET 3/4 MTG DIA .. .. .. .. .. .... 1.0 EA
4240026 000 .... , GROMMET 3/8 MTG DIA ... , . . . . . . . . .. 2.0 EA
4940004 000 .. ... CHOKE RF 7UH .. .. .. .. .. .. .. .. .. ... 6.0 EA
5140194000 ..... CAP10-100PF15KVTEST ............ tOEA
514 0340 000 . .... CAP 3-30PF 15KV.. .. .. .. .. .. .. .. .... 1.0 EA
516 0074001 ..... CAP, DISC .005UF 1 KV 20% .. .. .. .. ... 1.0 EA
5160205000 .... , 'CAP, RF, 500PF 5KV 20% X5T ......... 5.0 EA
5160206000 ..... CAP, RF, 1000PF 5KV 20% X5V . , ...... 6.0 EA
Reference Designators CAP)
#AIR BLOCKER
# SCREEN RING
#SPARK GAP E001
#C12
GS10
E001 #SPARK GAP
#E11 #E12
#E013
#L004 #C026
#C026
#C13 DRIVE #L04 DRIVE
#C09
#TB001
#E002 SPARK GAP
#E011 #E012
GS013
#R005
XV001
#L004#R004
#R005
#E11 #E12
#E11 #E12
#FILAIR
L001 L002 L011 L012 L013 L014
C013
C009
C019
C002 C004 C005 C006 C018
C001 C003 C007 C008 C016 C017
Rev.M1: 9-17-02
888-2385-001
WARNING: Disconnect primary power prior to servicing.
7-17
