Harris HT 30CD - Page 142

9926459001 ...... PWB, ANALOG, VO 1A6A8 ............. 1.0 EA A008
9926460003 ...... 'PWB, CPU 1A6A10 .................. 1.0 EA A010
9926461003 ...... XMTR IN-FACEIBACK-UP CONT ........ 1.0 EA A012
992 6462 001. ..... PWB, MOTHER BOARD 1 A6A 11 ........ 1.0 EA A011
9926731 002 ...... PWB, CONTROL STATUS .............. 1.0 EA A013
9926772001 ...... *PWB,AUXPWRSUP1A6A15 .......... 1.0EA A015
9928375001 ...... PWB,SCHMITI TRIGGER 1A6A9 ........ 1.0 EA A009

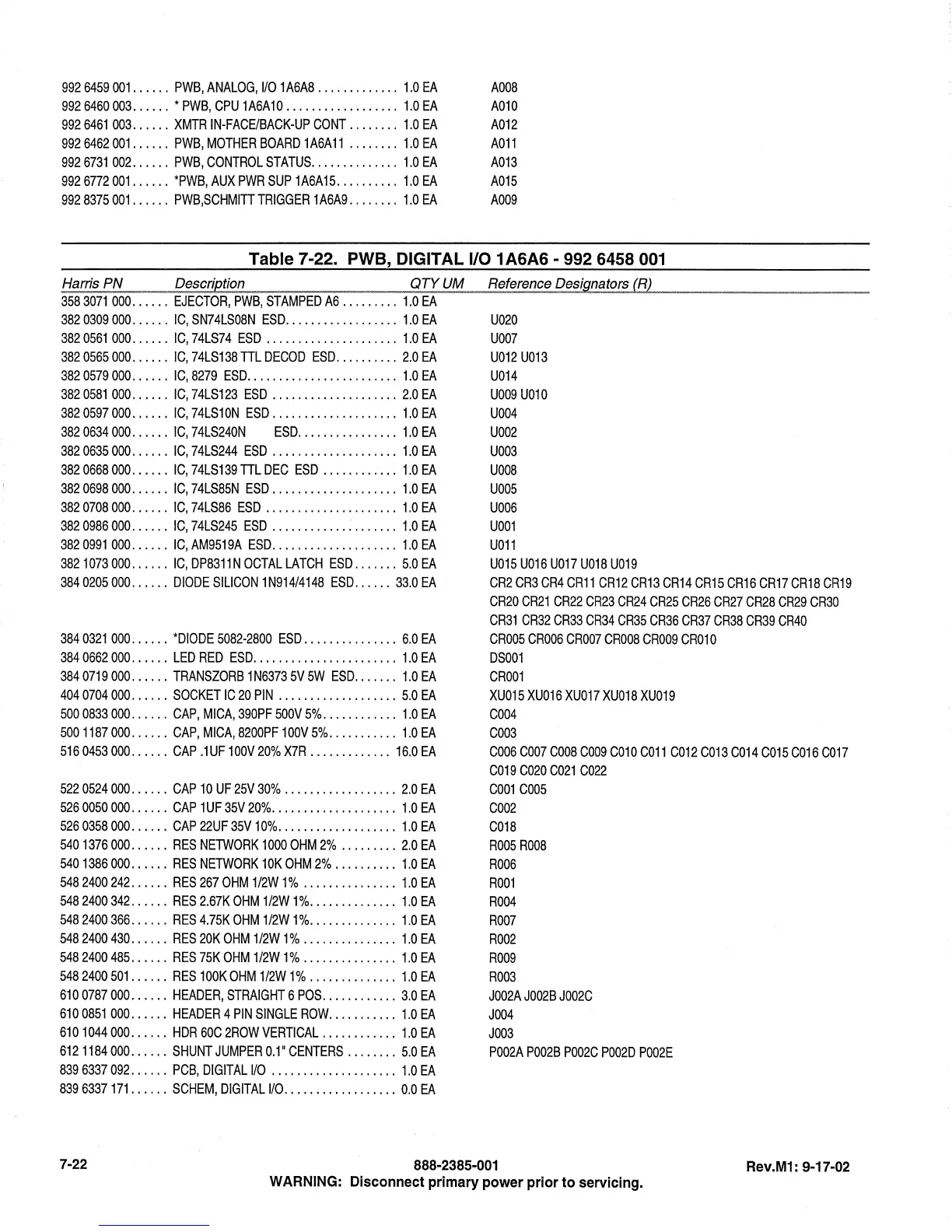

Table 7-22. PWB, DIGITAL 110 1A6A6 - 992 6458 001
Harris PN Descril?,tion . QTY UM
3583071 000. . . . .. EJECTOR, PWB, STAMPED A6 . . . . . . . .. 1.0 EA
3820309000 ...... IC, SN74LS08N ESD .................. 1.0 EA
3820561000 ...... IC,74LS74 ESD ..................... 1.0 EA
3820565000 ...... IC, 74LS138 TIL DECOD ESD .......... 2.0 EA
3820579000 ...... IC,8279 ESD ........................ 1.0 EA
3820581000 ...... IC,74LS123 ESD .................... 2.0 EA
3820597000 ...... IC,74LS10N ESD .................... 1.0 EA
3820634000 ...... IC,74LS240N ESD ................ 1.0 EA
3820635000 ...... IC,74LS244 ESD .................... 1.0 EA
3820668000 ...... IC,74LS139TILDEC ESD ............ 1.0EA
3820698000 ...... IC,74LS85N ESD .................... 1.0 EA
3820708000 ...... IC,74LS86 ESD ..................... 1.0 EA
3820986000 ...... IC,74LS245 ESD .................... 1.0 EA
3820991000 ...... IC, AM9519A ESD .................... 1.0 EA
3821073000 ...... IC, DP8311N OCTAL LATCH ESD ....... 5.0 EA
Reference Designators (R2
U020
U007
U012 U013
U014
U009 U010
U004
U002
U003
U008
U005
U006
U001
U011
U015 U016 U017 U018 U019
3840205000 ...... DIODE SILICON 1N914/4148 ESD ...... 33.0 EA
CR2 CR3 CR4 CR11 CR12 CR13 CR14 CR15 CR16 CR17 CR18 CR19
CR20 CR21 CR22 CR23 CR24 CR25 CR26 CR27 CR28 CR29 CR30
CR31 CR32 CR33 CR34 CR35 CR36 CR37 CR38 CR39 CR40
3840321 000 ...... 'DIODE 5082-2800 ESD ............... 6.0 EA
3840662 000 ...... LED RED ESD....................... 1.0 EA
3840719000 ...... TRANSZORB 1N6373 5V 5W ESD ....... 1.0 EA
4040704 000 ...... SOCKET IC 20 PIN ................... 5.0 EA
5000833000 ...... CAP, MICA, 390PF 500V 5% ............ 1.0 EA
5001187000 ...... CAP, MICA,8200PF 100V 5% ........... 1.0 EA
5160453000 ...... CAP .1UF 100V 20% X7R ............. 16.0 EA
5220524000 ...... CAP 10 UF 25V 30% .................. 2.0 EA
526 0050 000 ...... CAP 1 UF 35V 20%. . . . . .. . . . . .. .. . . . .. 1.0 EA
526 0358 000 ...... CAP 22UF 35V 10%. . . . . . . . . . . . . . . . . .. 1.0 EA
540 1376000 ...... RES NETWORK 1000 OHM 2% ......... 2.0 EA
5401386000 ...... RES NETWORK 10K OHM 2% .......... 1.0 EA
5482400242 ...... RES 267 OHM 1/2W 1 % . .. .. .. . .. .. ... 1.0 EA
548 2400 342 ...... RES 2.67K OHM 1/2W 1 %. . . . . . . . . . . . .. 1.0 EA
5482400366 ...... RES4.75KOHM1/2W1% .............. 1.0EA
5482400430 ...... RES 20K OHM 1/2W 1% ............... 1.0 EA
5482400485 ...... RES 75K OHM 1/2W 1% ............... 1.0 EA
5482400501 ...... RES 100KOHM 1/2W 1% .............. 1.0 EA
6100787000 ...... HEADER, STRAIGHT 6 POS ............ 3.0 EA
6100851000 ...... HEADER 4 PIN SINGLE ROW ........... 1.0 EA
610 1044 000 ...... HDR 60C 2ROW VERTICAL. . . . . . . . . . .. 1.0 EA
612 1184000 ...... SHUNT JUMPER 0.1 n CENTERS ........ 5.0 EA
8396337092 ...... PCB, DIGITAL I/O .................... 1.0 EA
8396337171 ...... SCHEM, DIGITAL I/O .................. 0.0 EA
CR005 CR006 CR007 CR008 CR009 CR010
DS001
CR001
XU015 XU016 XU017 XU018 XU019
C004
C003
C006 C007 C008 C009 C010 C011 C012 C013 C014 C015 C016 C017
C019 C020
C021 C022
C001 C005
C002
C018
R005 R008
R006
R001
R004
R007
R002
R009
R003
J002A J002B J002C
J004
J003
P002A P002B P002C P002D P002E
