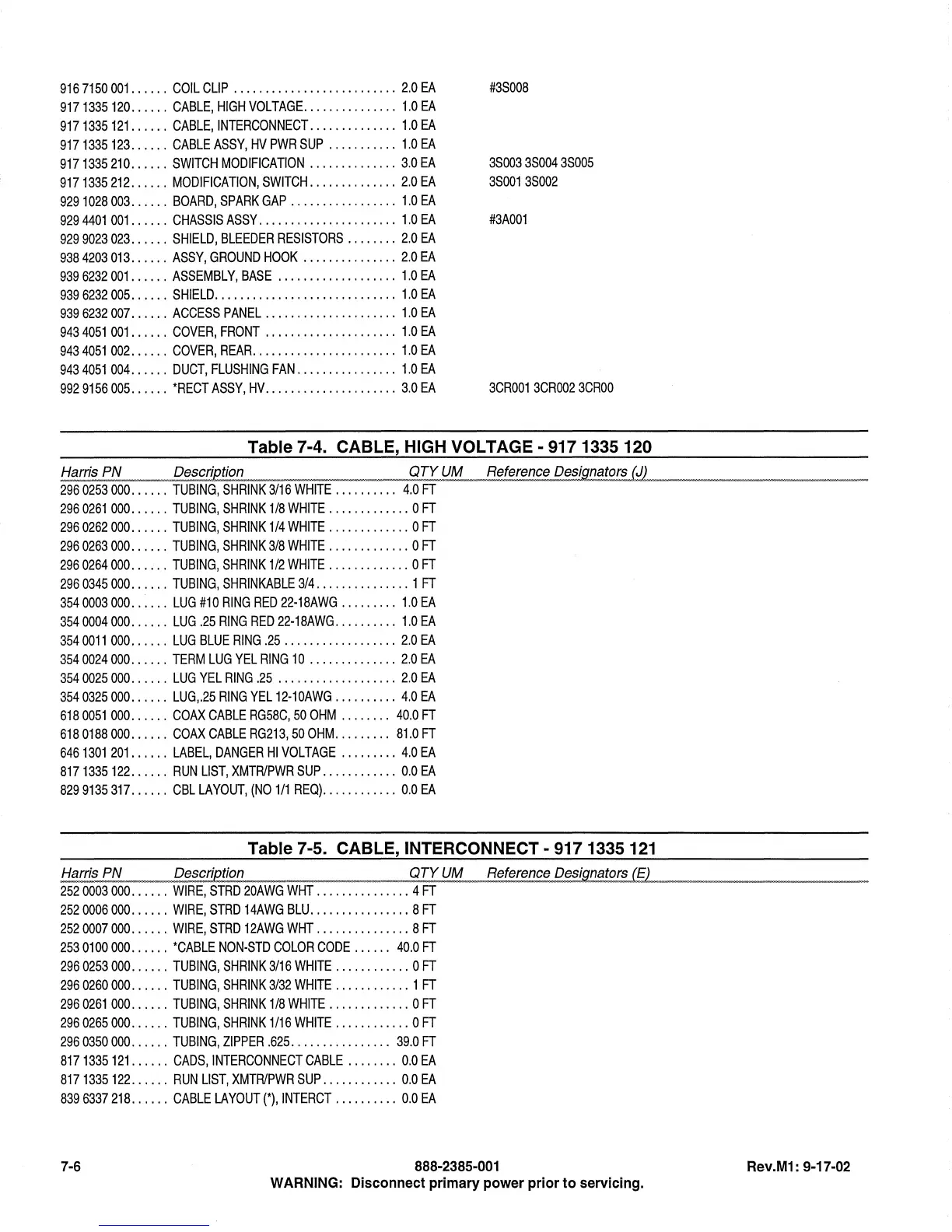

Harris HT 35CD - Page 126

9167150001 ...... COIL CLIP .......................... 2.0 EA
9171335120 ...... CABLE, HIGH VOLTAGE ............... 1.0 EA
9171335121 ...... CABLE, INTERCONNECT .............. 1.0 EA
917 1335 123 ...... CABLE ASSY, HV PWR SUP .......... , 1.0 EA
9171335210 ...... SWITCH MODIFICATION .............. 3.0 EA
9171335212 ...... MODIFICATION, SWITCH .............. 2.0 EA
929 1028 003. . . . . . BOARD, SPARK GAP . . . . . . . . . . . . . . . .. 1.0 EA
929 4401 001 ...... CHASSIS ASSY . . . . . . . . . . . . . . . . . . . . .. 1.0 EA
9299023023 ...... SHIELD, BLEEDER RESISTORS ........ 2.0 EA
9384203013 ...... ASSY, GROUND HOOK ............... 2.0 EA
939 6232 001 ...... ASSEMBLY, BASE . . . . . . . . . . . . . . . . . .. 1.0 EA
9396232005 ...... SHIELD ............................. 1.0 EA
9396232007 ...... ACCESS PANEL ..................... 1.0 EA
9434051 001 ...... COVER, FRONT ..................... 1.0 EA
9434051 002 ...... COVER, REAR ....................... 1.0 EA
9434051 004 ...... DUCT, FLUSHING FAN. . . . . . . . . . . . . . .. 1.0 EA
9929156005 ...... 'RECT ASSY, HV ..................... 3.0 EA
#3S008
3S003 3S004 3S005
3S0013S002
#3A001
3CR001 3CR002 3CROO
Table 7-4. CABLE, HIGH VOLTAGE - 9171335120
Harris PN Description QTY UM Reference Designators (J)
2960253000 ...... TUBING, SHRINK 3/16 WHITE. . . . . . . . .. 4.0 FT
2960261000 ...... TUBING, SHRINK 1/8 WHITE ............. 0 FT
2960262000 ...... TUBING, SHRINK 1/4 WHITE ............. 0 FT
296 0263 000 ...... TUBING, SHRINK 3/8 WHITE ............. 0 FT
2960264000 ...... TUBING, SHRINK 1/2 WHITE ............. 0 FT
296 0345 000 ...... TUBING, SHRINKABLE 3/4 ............... 1 FT
3540003000 ...... LUG #10 RING RED 22·18AWG ......... 1.0 EA
3540004000 ...... LUG .25 RING RED 22·18AWG ....... , .. 1.0 EA
354 0011 000 ...... LUG BLUE RING .25 .................. 2.0 EA
354 0024 000 ...... TERM LUG YEL RING 10 .............. 2.0 EA
354 0025 000 ...... LUG YEL RING .25 ................... 2.0 EA
3540325000 ...... LUG,.25 RING YEL 12·10AWG .......... 4.0 EA
6180051000 ...... COAX CABLE RG58C, 50 OHM ........ 40.0 FT
618 0188 000 ...... COAX CABLE RG213, 50 OHM. . . . . . . .. 81.0 FT
6461301201 ...... LABEL, DANGER HI VOLTAGE ......... 4.0 EA
8171335122 ...... RUN LIST, XMTRlPWR SUP ............ 0.0 EA
8299135317 ...... CBLLAYOUT, (NO 1/1 REQ) ............ 0.0 EA
Table 7-5. CABLE, INTERCONNECT - 9171335121
Harris PN Description QTY UM Reference Designators (E)
2520003000 ...... WIRE, STRD 20AWG WHT ............... 4 FT
2520006000 ...... WIRE, STRD 14AWG BLU ................ 8 FT
2520007000 ...... WIRE, STRD 12AWG WHT ............... 8 FT
2530100000 .... , . 'CABLE NON·STD COLOR CODE ...... 40.0 FT
296 0253 000 ...... TUBING, SHRINK 3/16 WHITE ............ 0 FT
296 0260 000 ...... TUBING, SHRINK 3/32 WHITE ............ 1 FT
2960261000 ...... TUBING, SHRINK 1/8 WHITE ............. 0 FT
2960265000 ...... TUBING, SHRINK 1/16 WHITE ............ 0 FT
2960350000 ...... TUBING, ZIPPER .625. . . . . . . . . . . . . . .. 39.0 FT
8171335121 ...... CADS, INTERCONNECT CABLE ........ 0.0 EA
8171335122 ...... RUN LIST, XMTRlPWR SUP ......... , .. 0.0 EA
8396337218 ...... CABLE LAYOUT ('), INTERCT .......... 0.0 EA
7-6 888-2385-001
WARNING:
Disconnect primary power prior to servicing.
Rev.M1:
9-17-02
