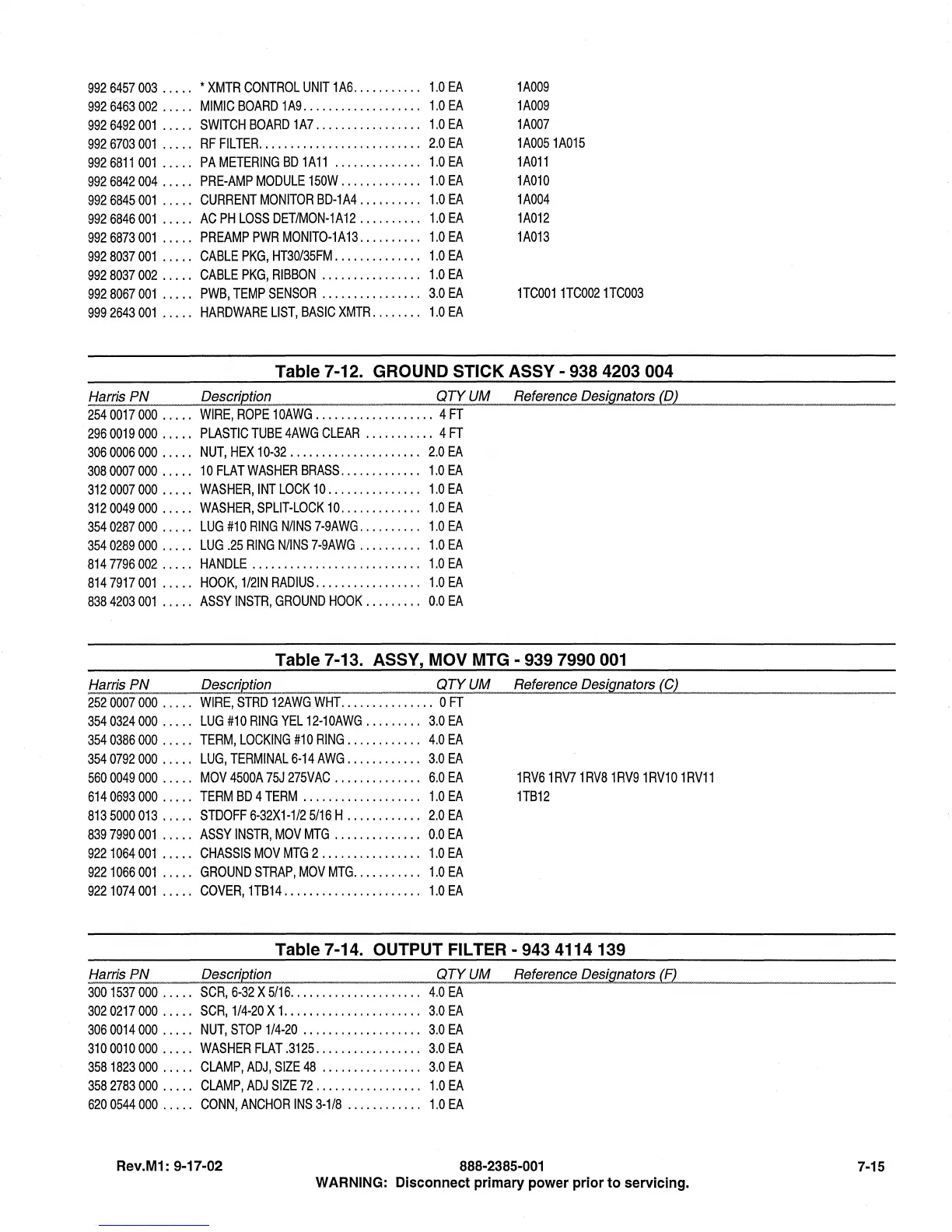

9926457003 ..... • XMTR CONTROL UNIT 1A6 ........... 1.0 EA
9926463002 ..... MIMIC BOARD 1A9"",,"', ......... 1.0 EA
9926492001 ..... SWITCH BOARD 1A7 ................. 1.0 EA
992 6703 001 ..... RF FILTER. . . . . . . . . . . . . . . . . . . . . . . . .. 2.0 EA
9926811001 ..... PA METERING BD 1A11 .............. 1.0 EA
9926842004 .. ... PRE-AMP MODULE 150W .. .. .. .. .. ... 1.0 EA
9926845001 ..... CURRENT MONITOR BD-1A4 . . . . . . . . .. 1.0 EA
9926846001 ..... AC PH LOSS DETIMON-1A12 , . . . . . . . .. 1.0 EA
9926873001 ..... PREAMP PWR MONITO-1A13 .......... 1.0 EA
9928037001 ..... CABLE PKG, HT30/35FM .............. 1.0 EA
9928037002 .. ... CABLE PKG, RIBBON ................ 1.0 EA
992 8067 001 ..... PWB, TEMP SENSOR ...... .. .. .. .... 3.0 EA
9992643001 ..... HARDWARE LIST, BASIC XMTR .... , . .. 1.0 EA
1 A009
1A009
1A007
1A0051A015
1A011
1A010
1 A004
1A012
1A013
HC001 HC002 HC003
Table 7-12. GROUND STICK ASSY - 938 4203 004
Harris PN Description QTY UM Reference .Qe!?ignators (D)
2540017000 ..... WIRE, ROPE 10AWG ................... 4 FT
2960019000 ..... PLASTIC TUBE 4AWG CLEAR ........... 4 FT
3060006000 ..... NUT, HEX 10-32 .................... , 2.0 EA
3080007000 ..... 10FLATWASHERBRASS ............. tOEA
3120007000 ..... WASHER,INTLOCK 10 ............... 1.0 EA
3120049000 ..... WASHER, SPLIT-LOCK 10 ............. 1.0 EA
3540287000 .... , LUG #10 RING N/INS 7-9AWG. . . . . . . . .. 1.0 EA
3540289000 .... , LUG .25 RING N/INS 7-9AWG . . . . . . . . .. 1.0 EA
8147796002 .... , HANDLE........................... 1.0 EA
8147917001 ..... HOOK, 1/21N RADIUS.. .. .. .. .. .. .. ... 1.0 EA
8384203 001 ..... ASSV INSTR, GROUND HOOK. . . . . . . .. 0.0 EA
Table 7-13. ASSY, MOV MTG - 939 7990 001
Harris PN Description QTY UM Reference Designators (e)
2520007000 ..... WIRE, STRD 12AWG WHT.. ............. 0 FT
3540324000 ..... LUG #10 RING VEL 12-10AWG ......... 3.0 EA
3540386000 ..... TERM, LOCKING #10 RING ............ 4.0 EA
3540792000 ..... LUG, TERMINAL 6-14 AWG ............ 3.0 EA
560 0049 000 .... , MOV 4500A 75J 275VAC .. .. .. .. .. .... 6.0 EA 1 RV6 1 RV7 1 RV8 1RV9 1 RV1 0 1 RV11
6140693000 ..... TERM BD 4 TERM ................... 1.0 EA HB12
8135000013 ..... STDOFF6-32X1-1/25/16H ............ 2.0EA
839 7990 001 ..... ASSV INSTR, MOV MTG .. .. .. .. .. .... 0.0 EA
922 1064 001 ..... CHASSIS MOV MTG 2 .. . .. .. .. .. .. ... 1.0 EA
9221066001 ..... GROUND STRAP, MOV MTG ........... 1.0 EA
9221074001 ..... COVER, HB14 ...................... 1.0 EA
Table 7-14. OUTPUT FILTER - 943 4114139
Harris PN Description QTY UM Reference Designators (Fl
300 1537 000 .... , SCR, 6-32 X 5/16 . ...... , . . . . . . . . . . . .. 4.0 EA
3020217000 . . . .. SCR, 1/4-20 X 1. . . . . . . . . . . . . . . . . . . . .. 3.0 EA
3060014000 .... , NUT, STOP 1/4-20 .. .. .. .. .. .. .. .. ... 3.0 EA
3100010000 ..... WASHER FLAT .3125 ................. 3.0 EA
358 1823000 .... , CLAMP, ADJ, SIZE 48 ................ 3.0 EA
3582783000 .... , CLAMP, ADJ SIZE 72. . . . . . . . . . . . . . . .. 1.0 EA
6200544000 .... , CONN, ANCHOR INS 3-1/8 ............ 1.0 EA
Rev.M1: 9-17-02 888-2385-001
WARNING: Disconnect primary power prior to servicing.
7-15
