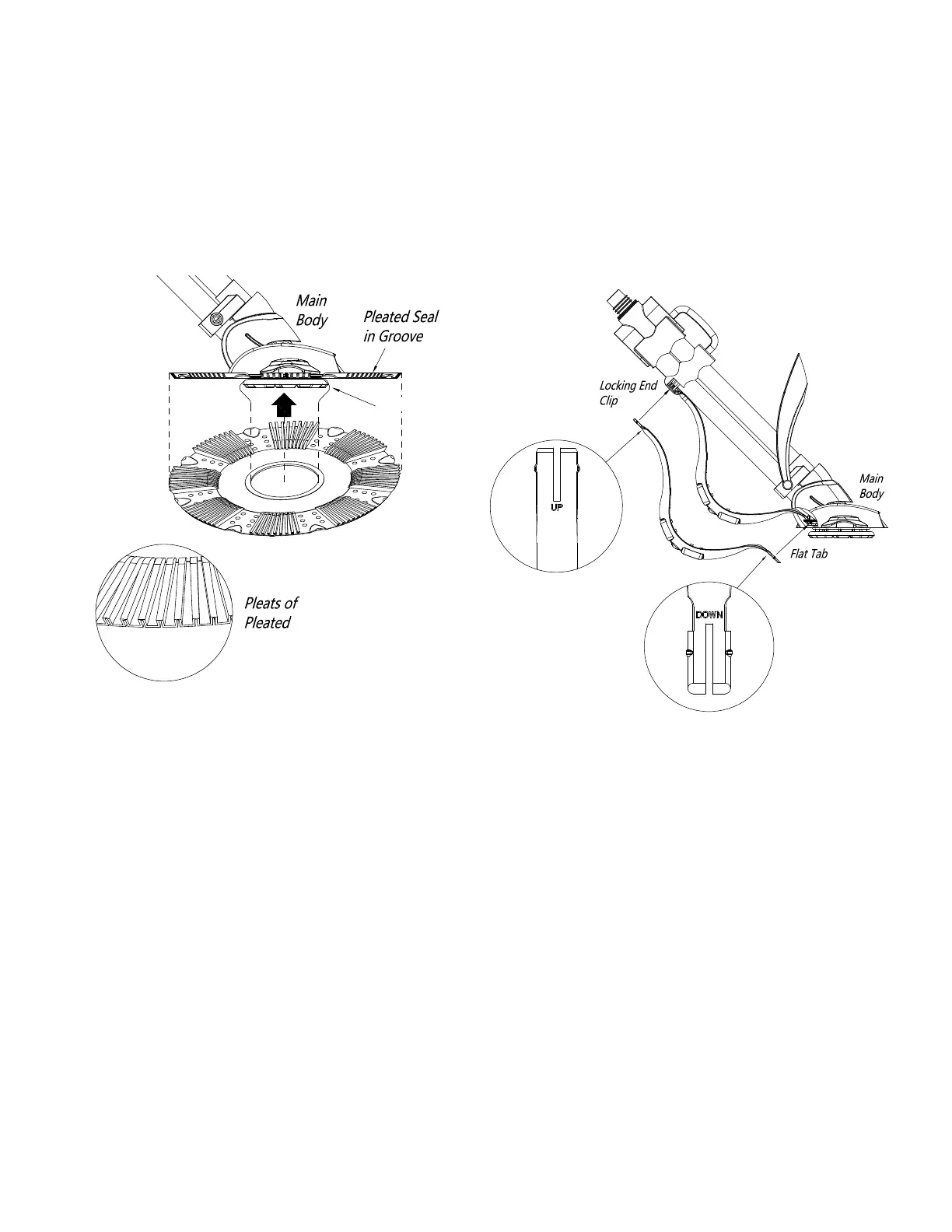

Step 2. Attach the Seal
1. Locate the words ‘UP’ on the seal and face toward
the main body.
2. Slipthesealoverthefootpad(atsidefacingpool
 oor).Gentlypulluntilthesealsitsinthegrooveon
the other side. Be sure to install the seal with the
 at side down and contoured side face up (the
seals are not reversible).
3. The seal should rotate freely.
Step 3. Attach Bumper Strap Assembly and Adjust
Dive Float Restrictor
1. Insert the bottom end of the strap into the slot
provided on the main body. Insert the top end of the
strap into the locking clip attached to the swivel
head. Be sure both ends are inserted.
2. Toadjustdiveoatassembly,locatetwosmalltabs
 directlybelowdiveoatassembly.Rotatebothdive
 oat restrictors into the up position to prevent
climbing or standard down position.
Sole
Seal
