4.4.7 Antenna Status
See Figure 4-11. The Antenna Status page is only used for the RF-7800B-VU104 tracking antenna. It is used to
monitor the status of the antenna. This page does not automatically update and must be refreshed to poll for the latest
status.
ATB State: This field indicates the detailed state of the Antenna Tracking Board (ATB) and indicates whether the
antenna is tracking or searching for the satellite. Refer to Table 4-1.
Elevation: The current elevation angle of the antenna.
Frequency (KHz): The frequency of the global beam in kHz that the antenna is tracking. Possible values are the
primary and secondary frequencies of the three satellites. Refer to Table 4-2.
Antenna Tracking: Indicates (TRUE or FALSE) whether or not the antenna is currently tracking the satellite (in
states 5, 6 or 7).

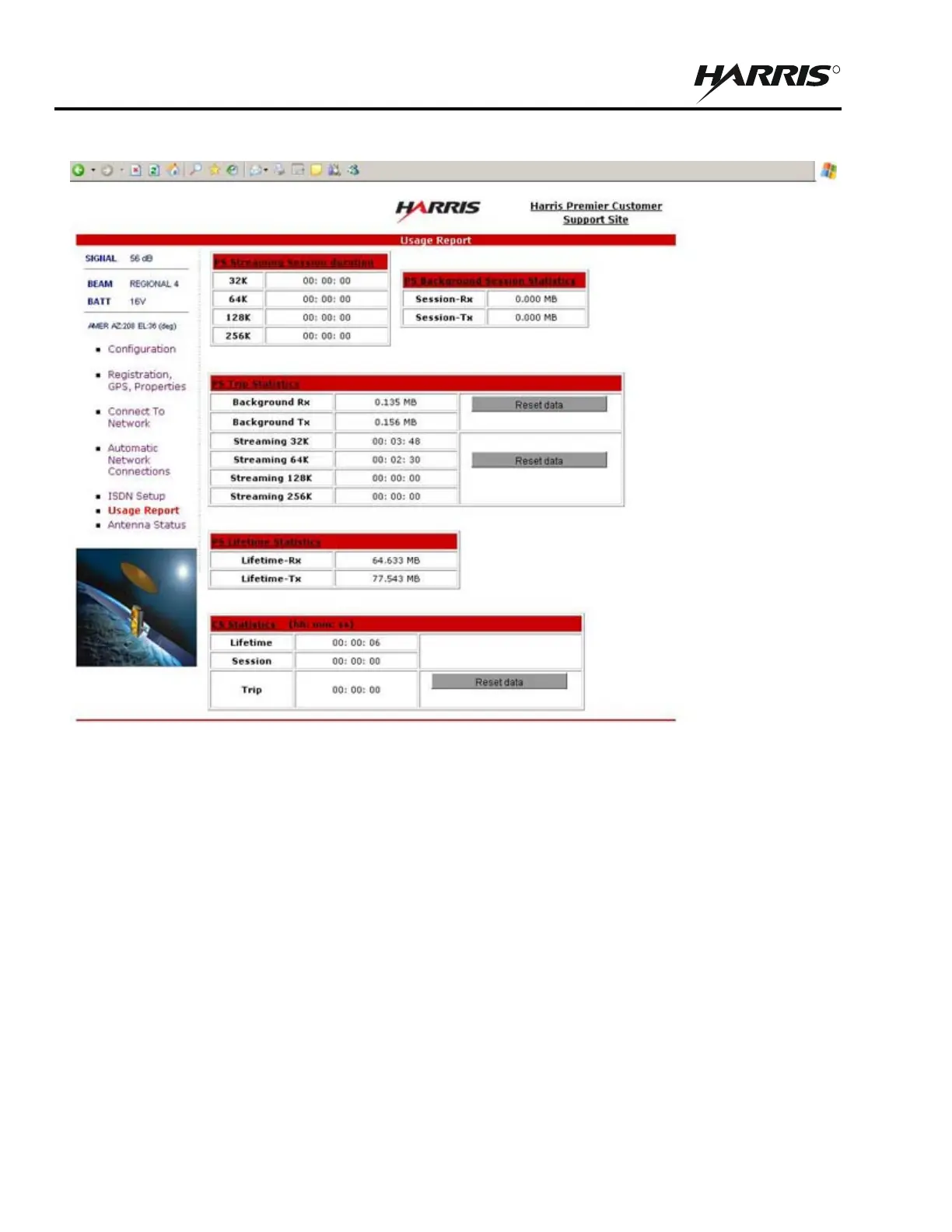

Figure 4-10. BGAN Terminal Usage Report
