TS22 Series Test Sets 3
Physical Characteristics
The housing (A) (see Figure 2) is injection molded of high impact
polycarbonate which provides excellent insulating properties. The three-
piece case is designed to give rugged service and withstand the rough
handling and shocks normally associated with craft tools.

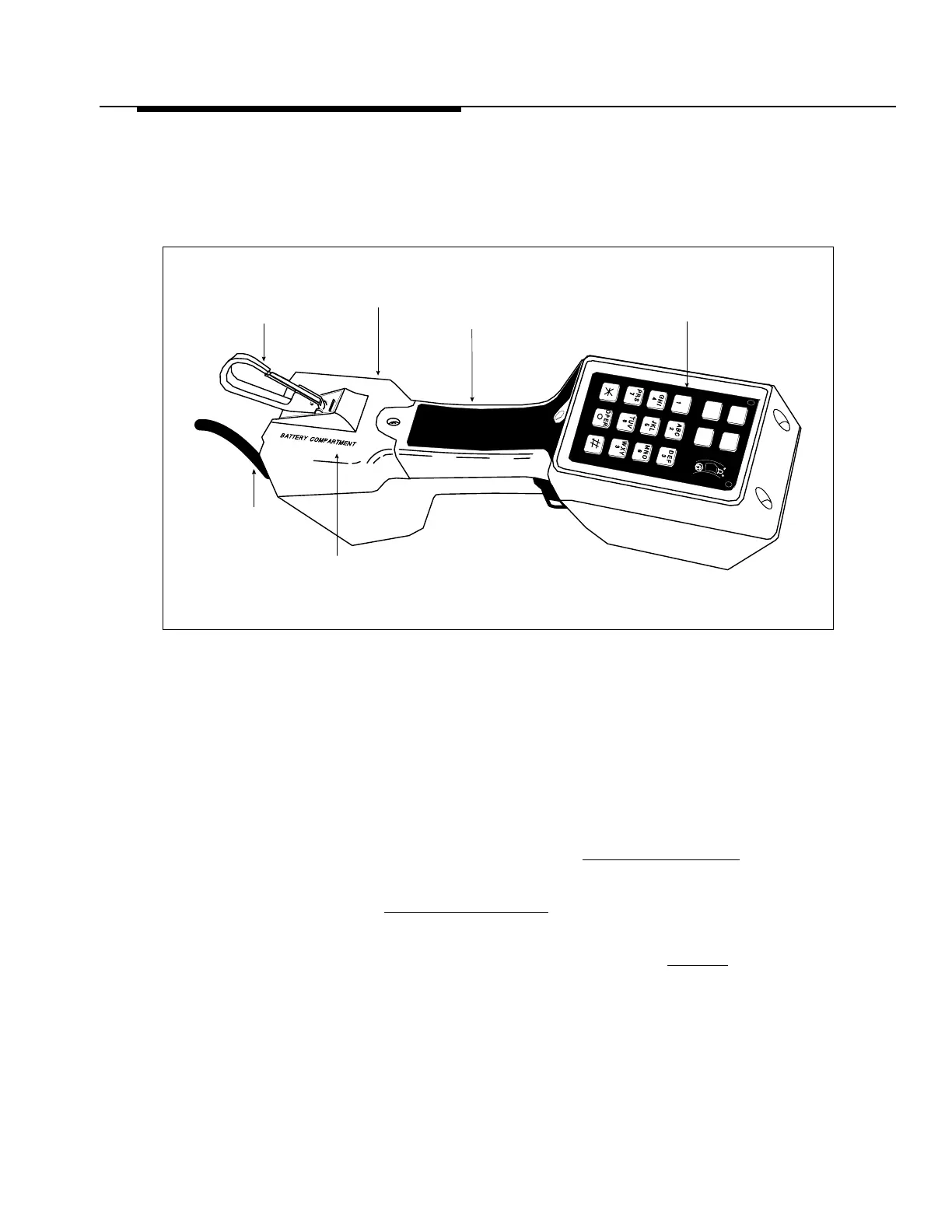

Figure 2. Physical Characteristics
The back of the handgrip is contoured and has a non-slip pad (B), freeing
both hands while the test set rests on the shoulder.
The keypad (C) has 16 buttons on a black plastic bezel that is recessed into
the receiver end of the housing. The recessed bezel provides physical
protection to the keypad and helps prevent accidental button operation.
The spring-loaded belt clip (D), located on the transmitter end of the
housing, ensures a secure connection to a belt loop or D-ring. The belt clip
may be replaced in the field. See Replacing the Belt Clip
.
The test sets are equipped with several different cord configurations (E).
See Power and Connections
.
The test sets provide a dedicated battery compartment (F) which makes
battery replacement a simple procedure. See Warranty
.
T
O
N
E
P
U
L
S
E
P
O
L
F
S
H
L
N
R
E
CORD
B
NO-SLIP PAD
D
BELT CLIP
A
HOUSING
C
KEY PAD
ts22_005
F
BATTERY
COMPARTMENT
