11.0 Power Supply Specifications
Setting PSU Input Voltage

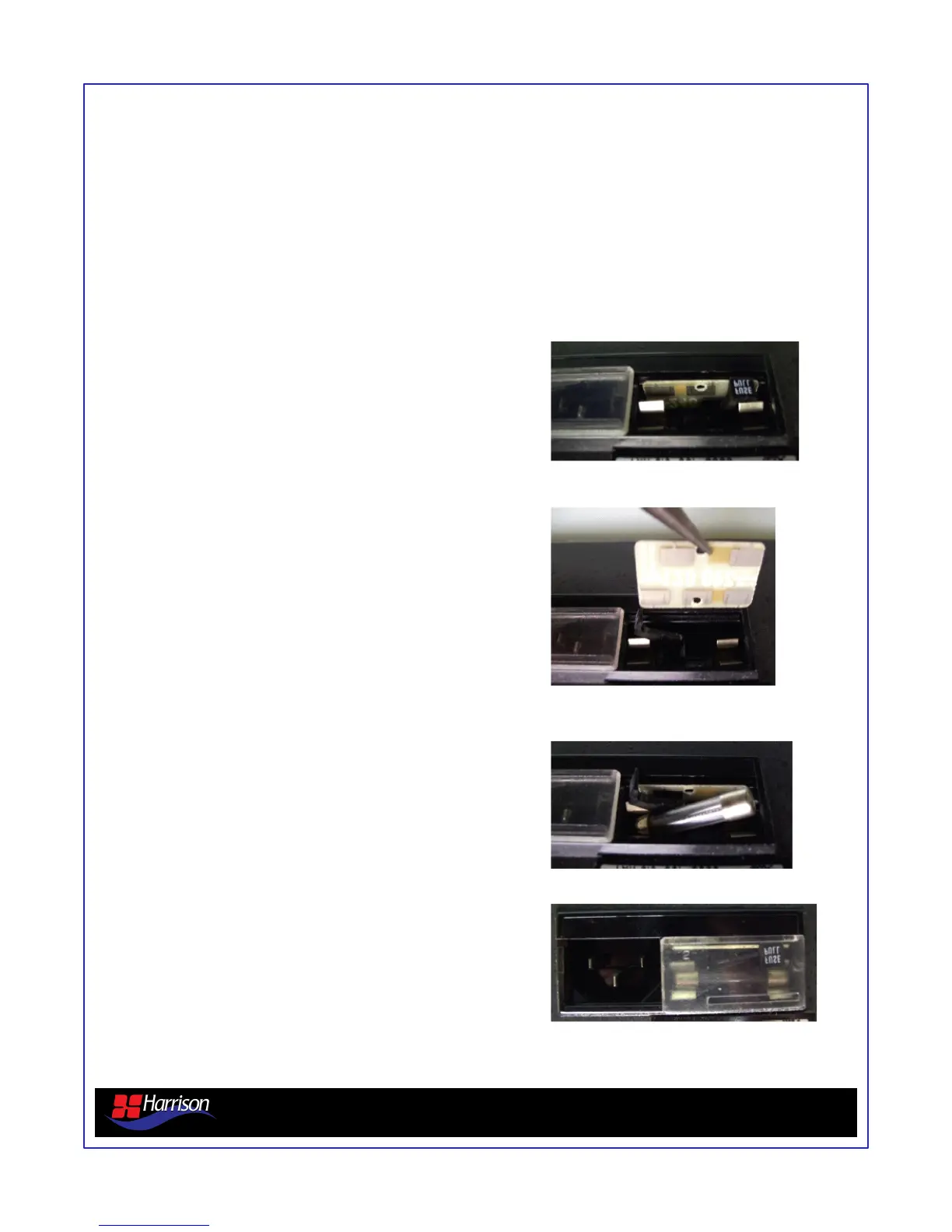

The L-159 power supply can accept four different input voltages. The AC input jack uses a voltage selector
card to set the input voltage of the power supply. The selected input voltage must match the AC line voltage or
damage will occur to the power supply.
1. Locate the AC input on the rear of the L-159.
The AC input should be unplugged before any
adjustment is made.
2. Open cover door and slide fuse-pull lever to
left.
3. Remove the voltage selection card with needle-nose
pliers and select operating voltage by orienting voltage
selection card with the desired voltage on top left side.
4. Push card firmly into module slot.
5. Slide fuse-pull lever to right into normal position
and re-insert fuse into holders.
6. Use caution in selecting correct fuse value.
