HC-E5W-3( ) Series Propeller

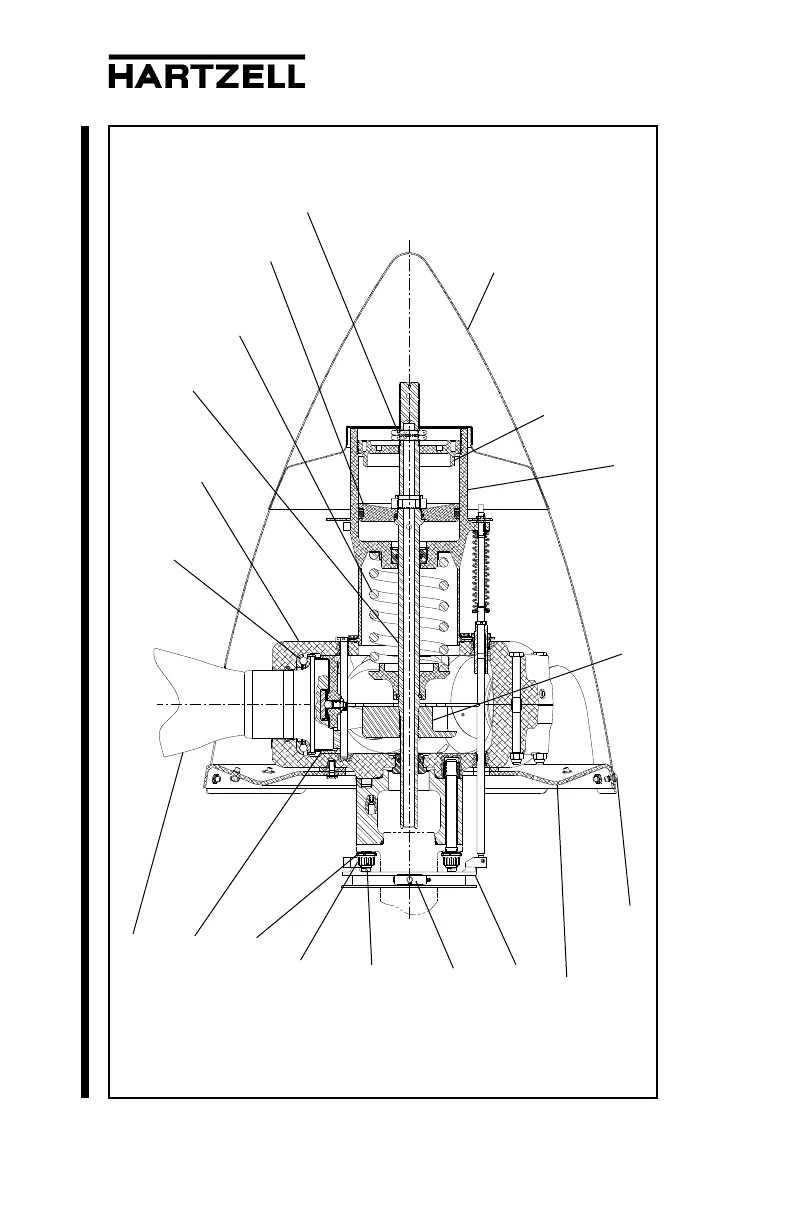

Figure 2-6.1
TPI-LW-147-00611
Blade
Blade
Retention
Bearing
Hub
Pitch
Change
Rod
Spring
Cylinder
Piston
Feather
Stop
Spinner
Dome
Fork
Spinner
Bulkhead
Mounting
Stud
Mounting
Nut
Mounting
Washer
Beta Feedback
Block Assembly
Beta Ring
Spinner Mounting
Screw
Preload
Plate
Pitch Stop
Plate
