Propeller Owner’s Manual
147
INSTALLATION AND REMOVAL
61-00-47
Page 3-7
Rev. 17 Sep/20

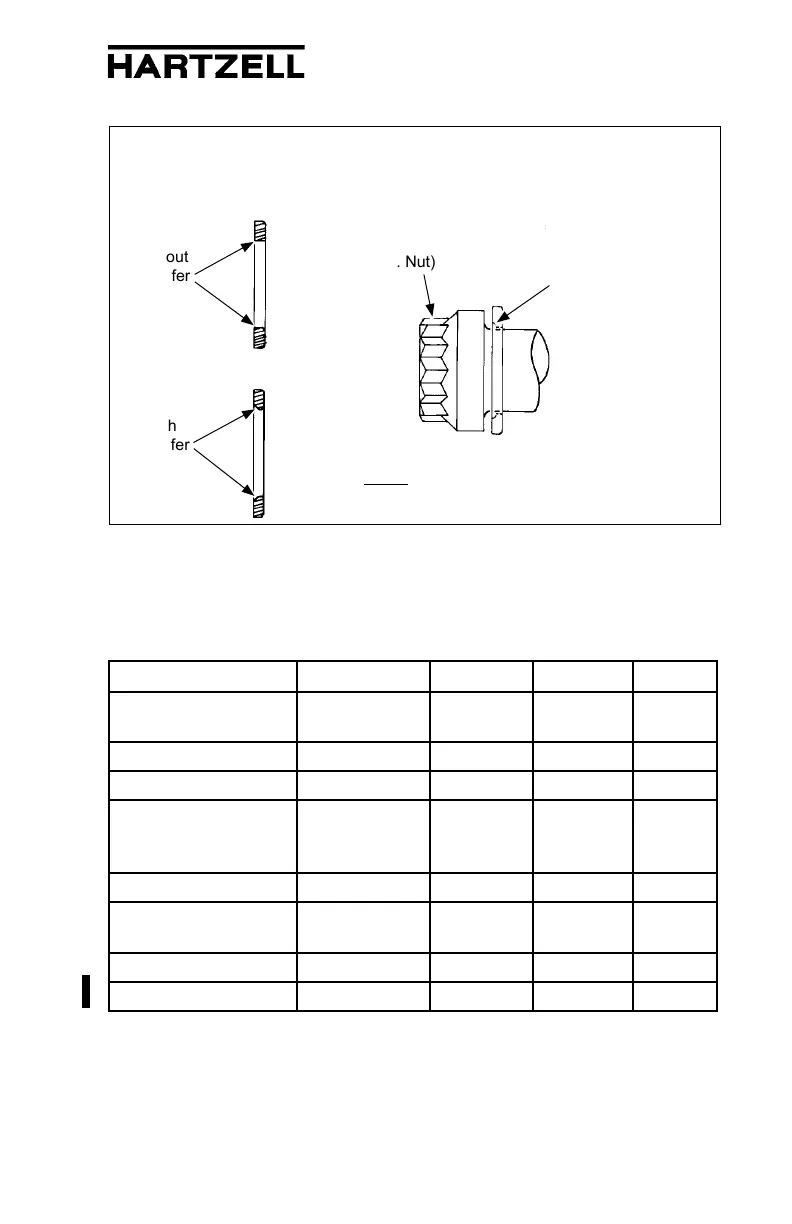

Mounting Bolt/Nut and Washer
Figure 3-1
APS0279C
Chamfer of washer must face bolt head (or mtg. nut)
at installation. Washers without chamfer must be
installed with rolled edges toward bolt head.
NOTE: Size of chamfer can vary
from washer to washer.
Without
chamfer
With
chamfer
Propeller/Engine Flange O-rings and Mounting Hardware
Table 3-1
Flange O-ring Bolt/Stud Washer Nut
A
- except E5A-2
C-3317-239-2 B-3347 A-2048-2 n/a
E5A-2 C-3317-239-2 B-7435 A-2048-2 C-6006
B C-3317-239-2 B-3347 A-2048-2 n/a
N
- except
E(4,5)N-5KL
C-3317-230 B-3339-1 A-2048-2 n/a
E(4,5)N-5KL C-3317-230 103560 A-2048-2 C-6006
P
- except E5P-3
C-3317-230 B-3347 A-2048-2 n/a
E5P-3 C-3317-230 103560 A-2048-2 C-6006
E5W-3 C-3317-230 104720 B-7624 C-6006
Chamfer/Rolled Edge
Bolt Head
(or Mtg. Nut)
