Harvia DELTA COMBI User Manual

16
EN DE
Heater type
Ofenmodell
Output
Leistung
(kW)
Heater output
Saunaofen-
leistung
(kW)
Vaporiser
Verdampfer
(kW)
Fuses
Sicherungen
Cables / Kabel 400V 3N/230V 1N~
mm
2
mm
2
mm
2
KV90SE/KV90SEA 9 3 x 3 2 3 x 16A 5 x 2.5 2 x 2.5 7 x 2.5
KV80SE/KV80SEA 8 3 x 2.67 2 3 x 16A 5 x 2.5 2 x 2.5 7 x 2.5
KV60SE/KV60SEA 6 3 x 2 2 3 x 10A 5 x 1.5 2 x 1.5 7 x 1.5
KV50SE/KV50SEA 5 3 x 1.5 2 3 x 10A 5 x 1.5 2 x 1.5 7 x 1.5
T9C/T9CA 9 2 x 3.5 +2 2 3 x 16A 5 x 2.5 2 x 2.5 7 x 2.5
T7C/T7CA 7 3 + 2 + 2 2 3 x 16A 5 x 2.5 2 x 2.5 7 x 2.5
D29SE 2.9 2.9 1
1 x 16A
(1 x 13A)
5 x 2.5 - -
BA A+B

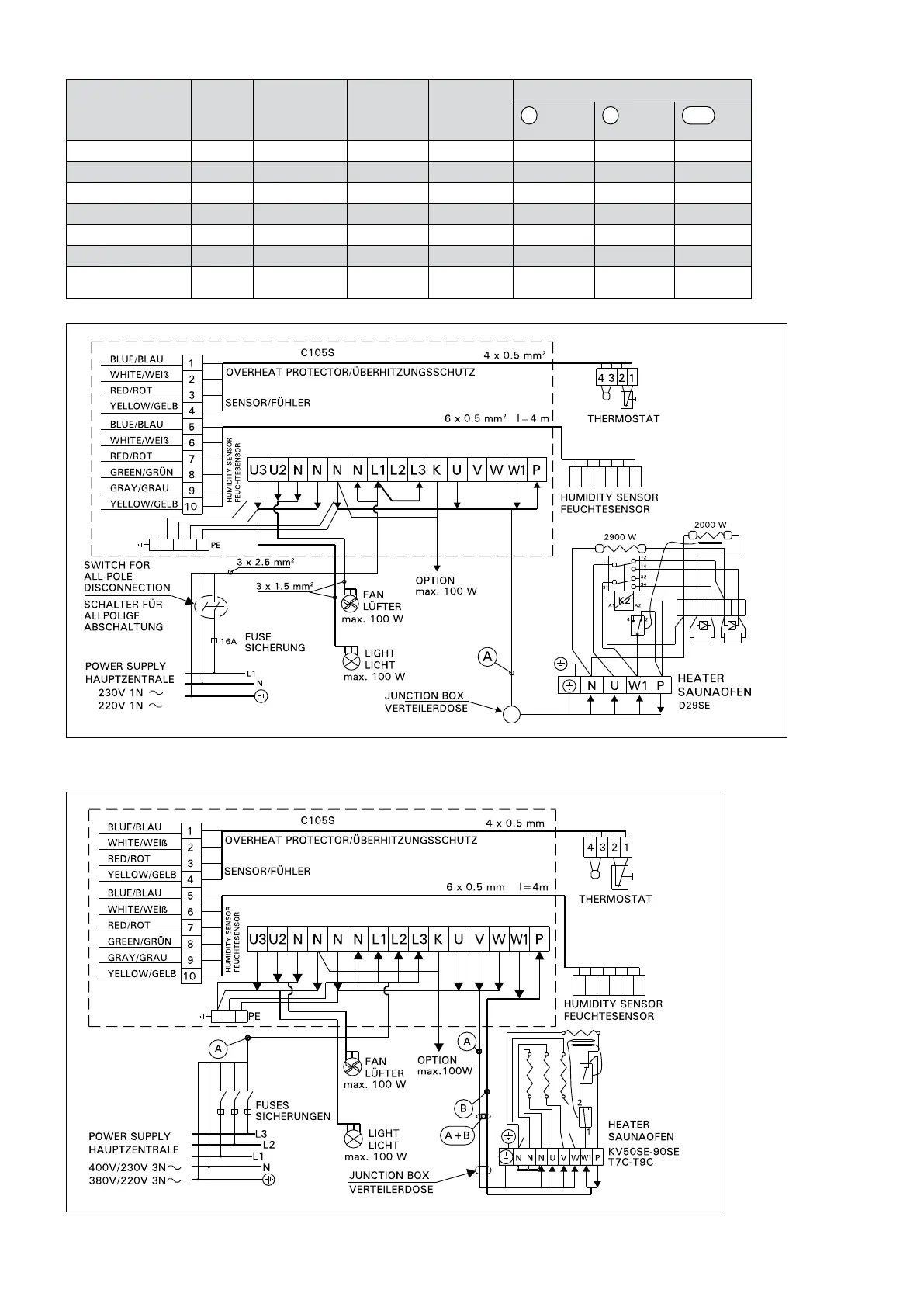

Figure 11. 3-phase connection of the heater
Abbildung 11. 3-Phase Anschluß des Saunaofens
Table 2.
Tabelle 2.
Figure 10. 1-phase connection of the D29SE heater
Abbildung 10. 1-Phase Anschluß des D29SE Saunaofens
