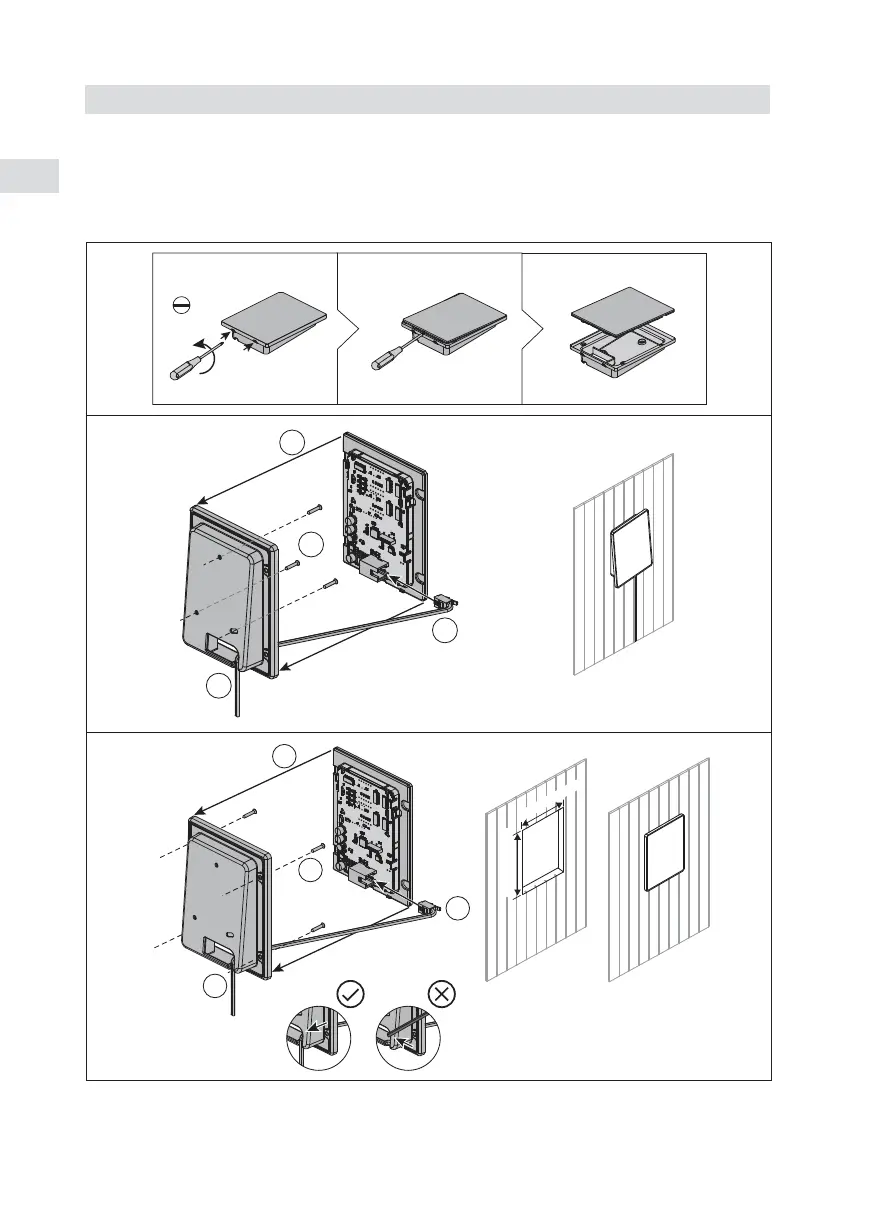

INSTALLING THE CONTROL PANEL
A) Surface mounting
B) Flush mounting
1. Thread the data cable through the hole in the back cover.
2. Fasten the back cover to a wall with screws.
3. Push the data cable to the connector.
4. Press the front cover into the back cover.
