Harvil RM-1 - Step 8: Seat Assembly Attachment

12
ASSEMBLY INSTRUCTIONS
RM-1

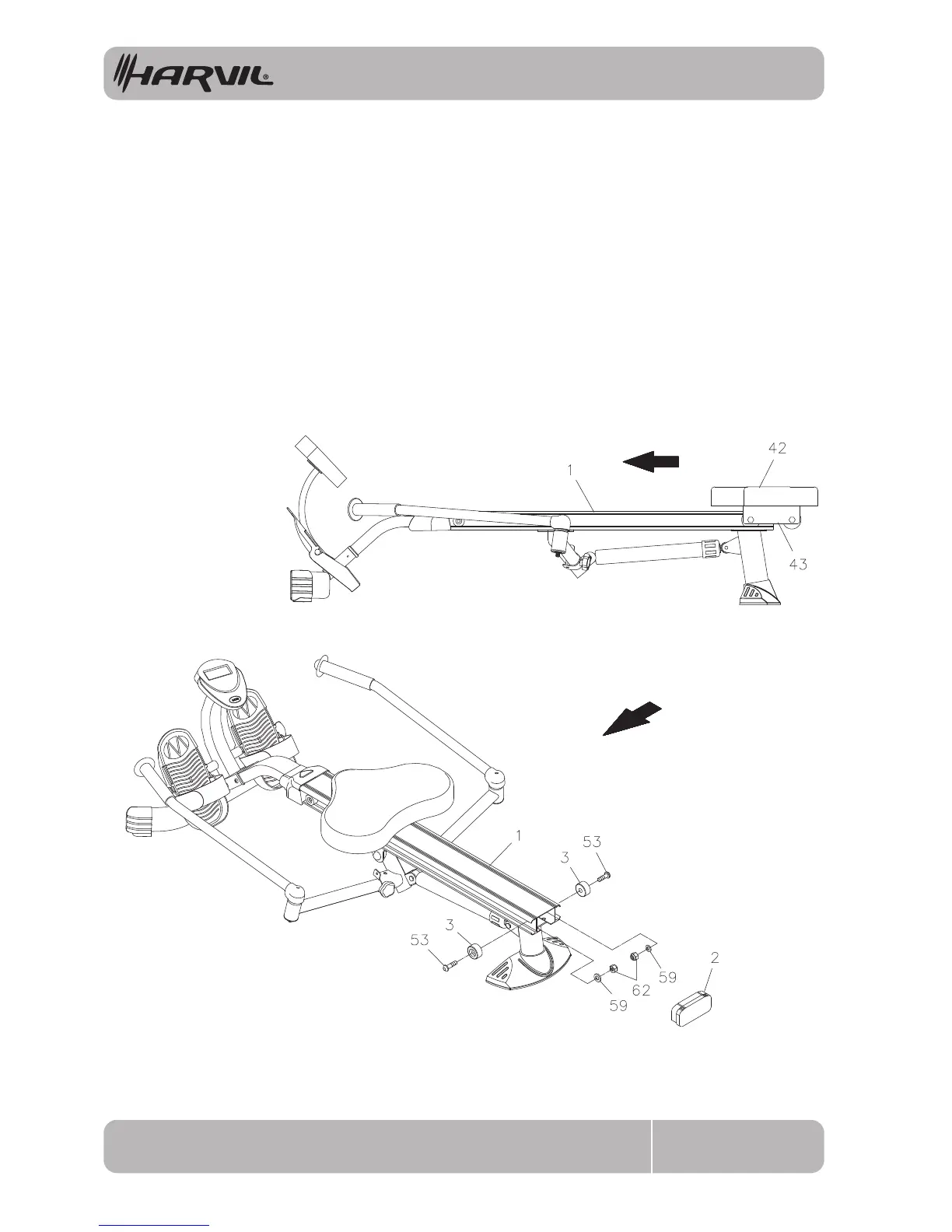

STEP 8
Slide the SEAT ASSEMBLY(42, 43) onto the CENTER BEAM(1). Attach the SEAT STOPPERS(3) to the
back end of the CENTER BEAM(1) with BUTTON HEAD BOLTS(M8x1.25x25mm)(53). Also, please verify
that the other SEAT STOPPERS(3) at the front end of the CENTER BEAM(1) are assembled at the factory.
STEP 9
Press the CENTER BEAM CAP(2) into the back end of the CENTER BEAM(1).
