ASSEMBLY INSTRUCTIONS

RM-1

STEP 4

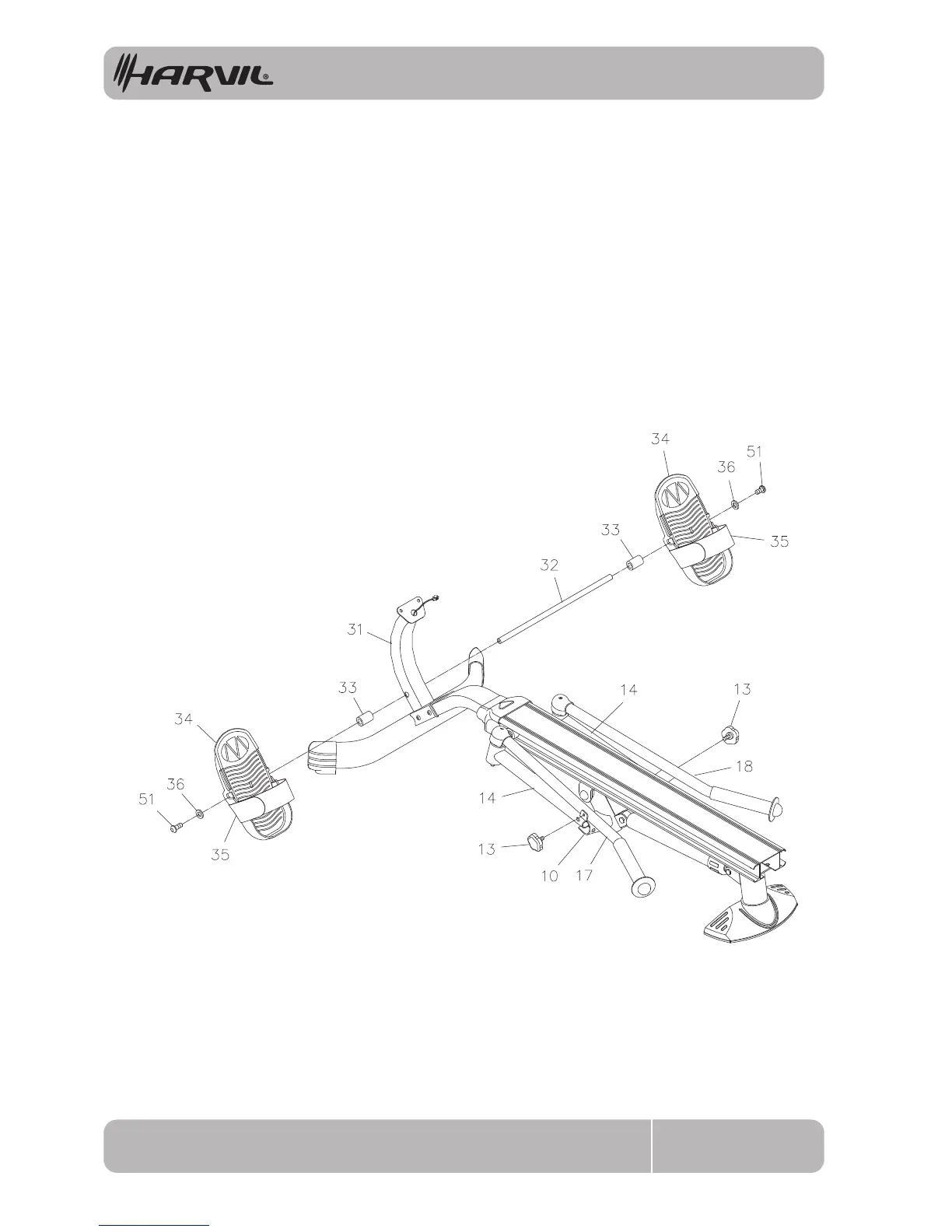

Insert the PEDAL SHAFT(32) through holes located on the METER POST(31). Place a PEDAL SPACER(33)

and a PEDAL(34) onto each end of the PEDAL SHAFT(32) and slide them toward the METER POST(31).

Then secure the PEDALS(34) with BUTTON HEAD BOLTS(M8x1.25x15mm)(51) and LARGE WASHERS

(M8)(36) at both ends of the PEDAL SHAFT(32). You need to use two Allen Wrenches to tighten the

BUTTON HEAD BOLTS(M8x1.25x15mm)(51) at both ends of the PEDAL SHAFT(32) at the same time.

STEP 5

Remove the LOCKING KNOBS(13) from the PIVOT CONNECTOR(10).
