ASSEMBLY INSTRUCTIONS

RM-1

STEP 2

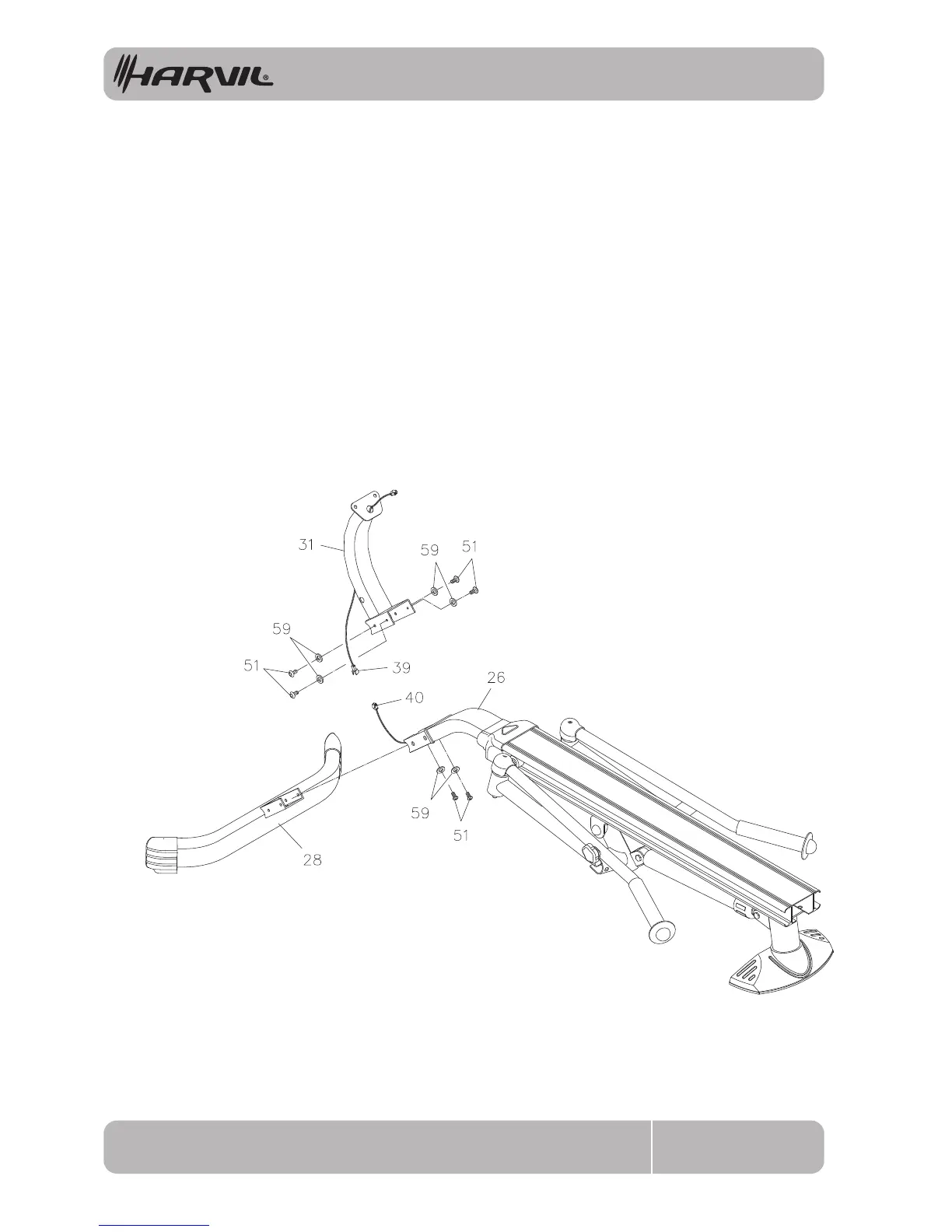

Insert the Bracket on FRONT STABILIZER(28) into the FRONT SUPPORT(26). Attach the METER POST(31)

to the FRONT SUPPORT(28), then bolt the METER POST(31), FRONT SUPPORT(26), and FRONT

STABILIZER(28) together with BUTTON HEAD BOLTS(M8x1.25x15mm)(51) and WASHERS(M8)(59).

Please do not tighten any of these bolts until all six bolts are attached.

NOTE: Be careful not to damage the EXTENSION WIRE(38) when assembling the METER POST(32).

STEP 3

Connect the EXTENSION WIRE(39) to the SENSOR WIRE(40).
