ASSEMBLY INSTRUCTIONS

RM-1

Place all parts from the box in a cleared area and position them on the oor in front of you. Remove

all packing materials from your area and place them back into the box. Do not dispose of the packing

materials until assembly is completed. Read each step carefully before beginning.

STEP 1

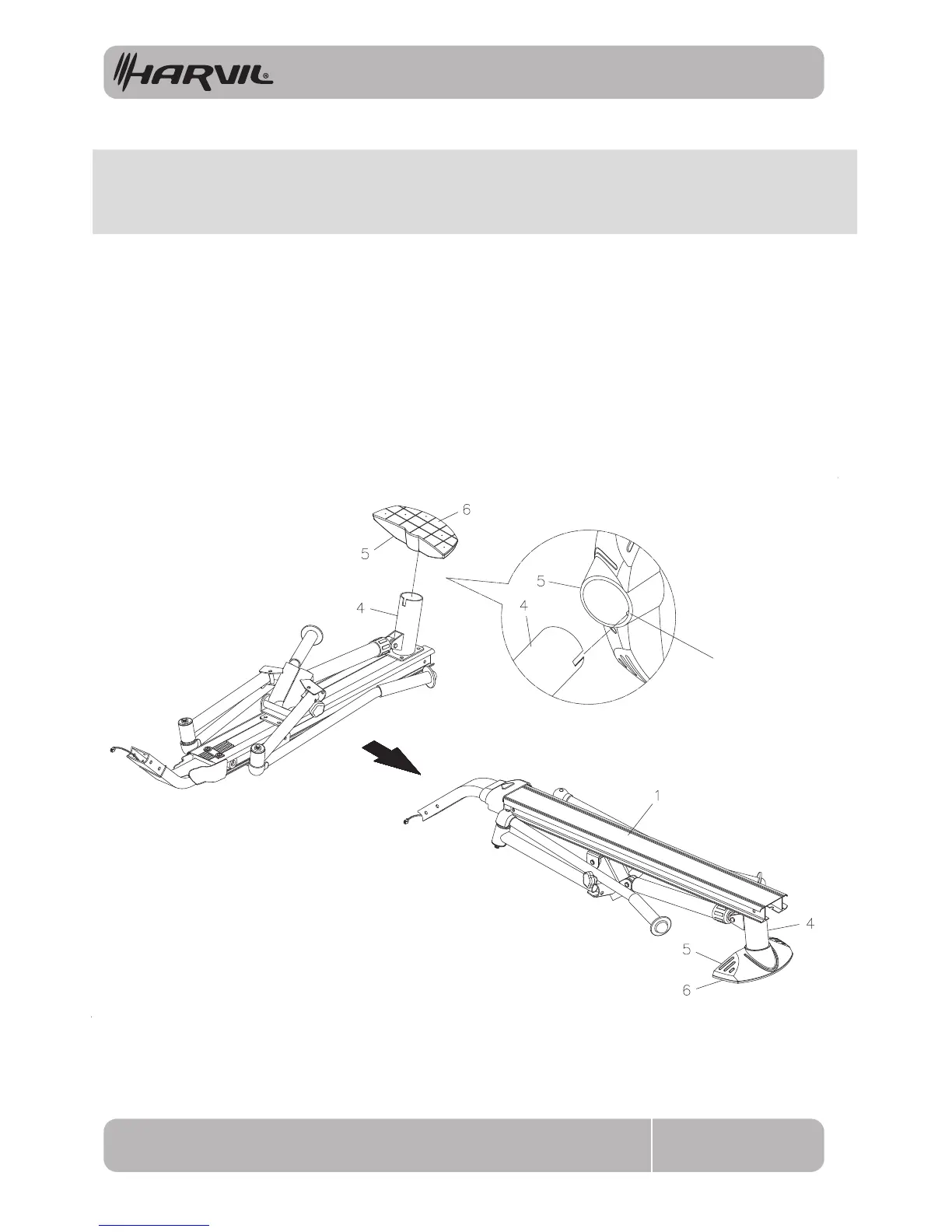

Lay the Main Frame Assembly on the oor as shown in the illustration. Now refer to inset drawing A. Make

sure the Key Rib in the STABILIZER CAP(5) aligns with the slot in the REAR SUPPORT(4), then press the

STABILIZER CAP(5) onto the REAR SUPPORT(4). Turn the Main Frame Assembly to the normal upright

position and make sure the STABILIZER PAD(6) is secured to the STABILIZER CAP(5).

Key Rib
