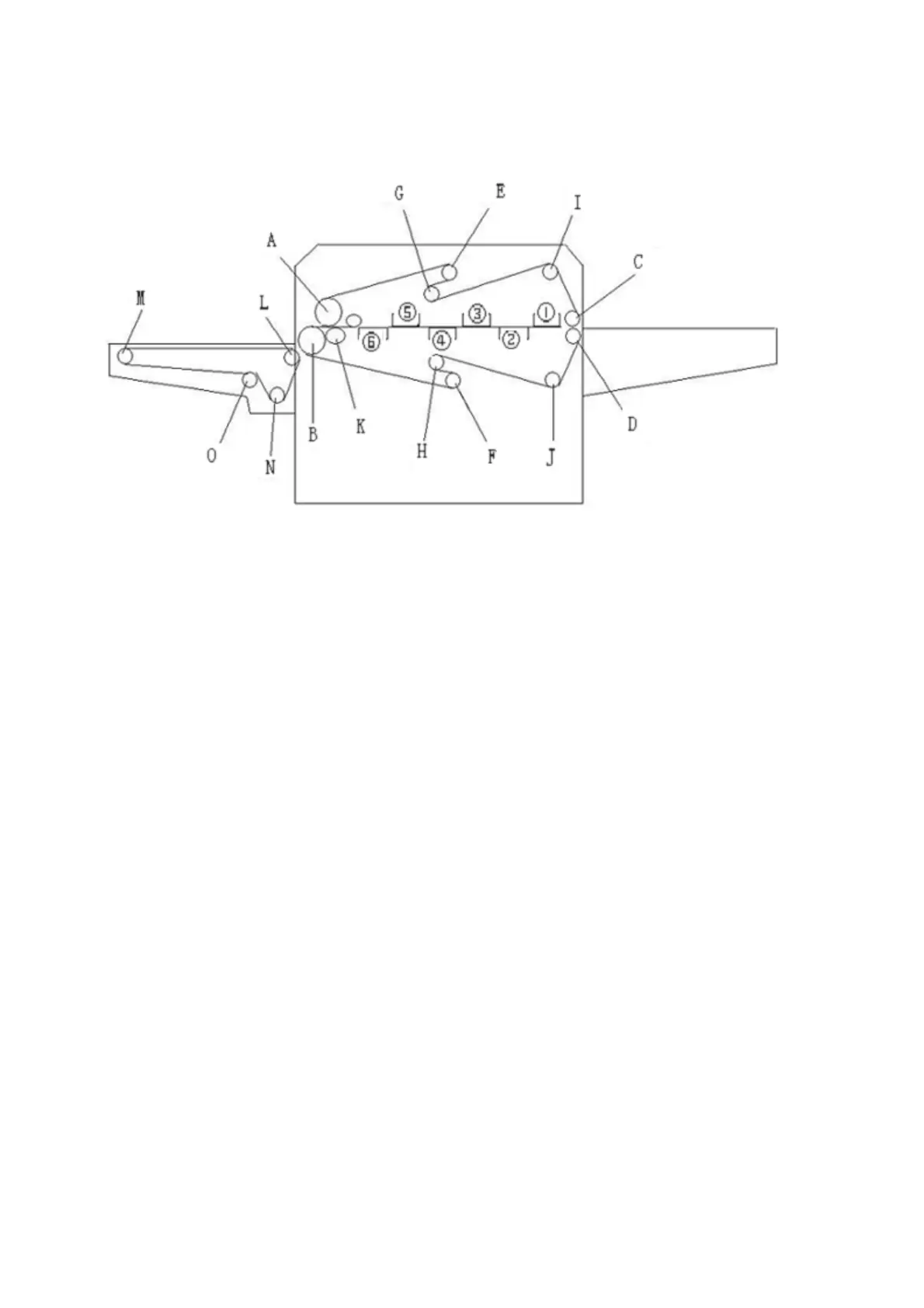

INNER COMPONENTS
A. Pressure roller (Upper)
B. Pressure roller (lower)
C. Feed-in roller (upper)
D. Feed-in roller (lower)
E. Sub tension roller (upper)
F. Sub tension roller (lower)
G. Tension roller (upper)
H. Tension roller (lower)
I. Belt warping prevention roller (upper)
J. Belt warping prevention roller (lower)
K. Anti-puckering roller
L. Conveyor driving roller
M. Conveyor roller
N. Conveyor tension roller
O. Conveyor guide roller
● Roller E.F can be adjusted to slide forward and backward
● Roller C.K can be adjusted to slide up and down
Setting combination of the heaters
Heater with sensor①．④
FRONT/REAR COMBINATION UPPER/LOWER COMBINATION
①②③ Front ①③⑤ Upper
④⑤⑥ Rear ②④⑥ Lower
