13. Remove 5 bolts fixing the upper and the lower frames.

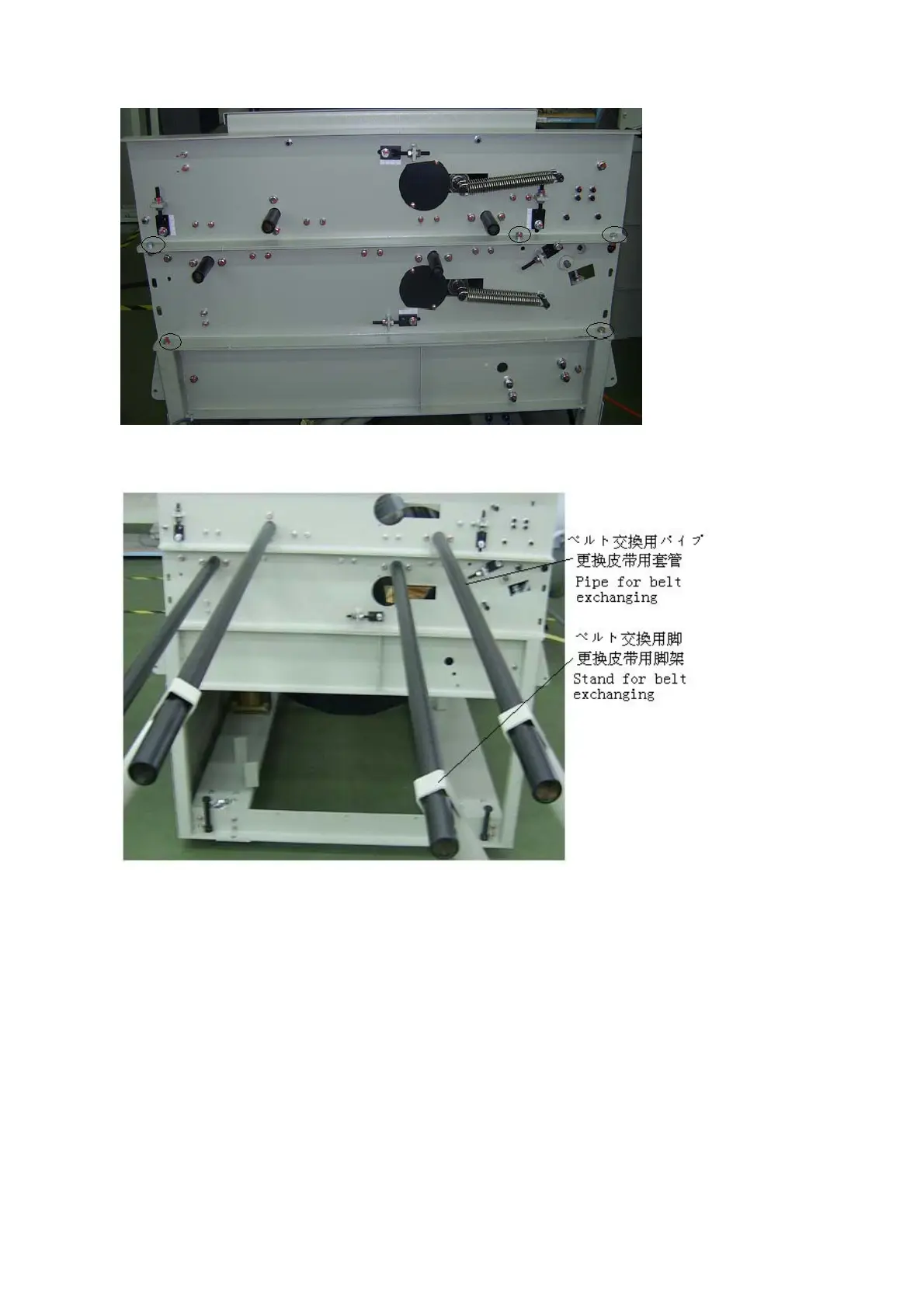

14. Lift the belt changing pipe, and set the stand supporter on the end of the pipe,
And then pull out the belt through an opening between the frame
NOTE
● When the belt is pulled out, be careful not to let the belt touch the belt warping
limit switch.
● There are setting marks on the frames. To assemble the machine, be sure to fit
the marks, then fasten the bolt for the frames.
● After the belt is replaced with new one, set the both left and the right side tension
springs at the same time. After completion of assembling, set the belt speed at
35 sec. And await until the belt makes slow 2 rounds rotation.
