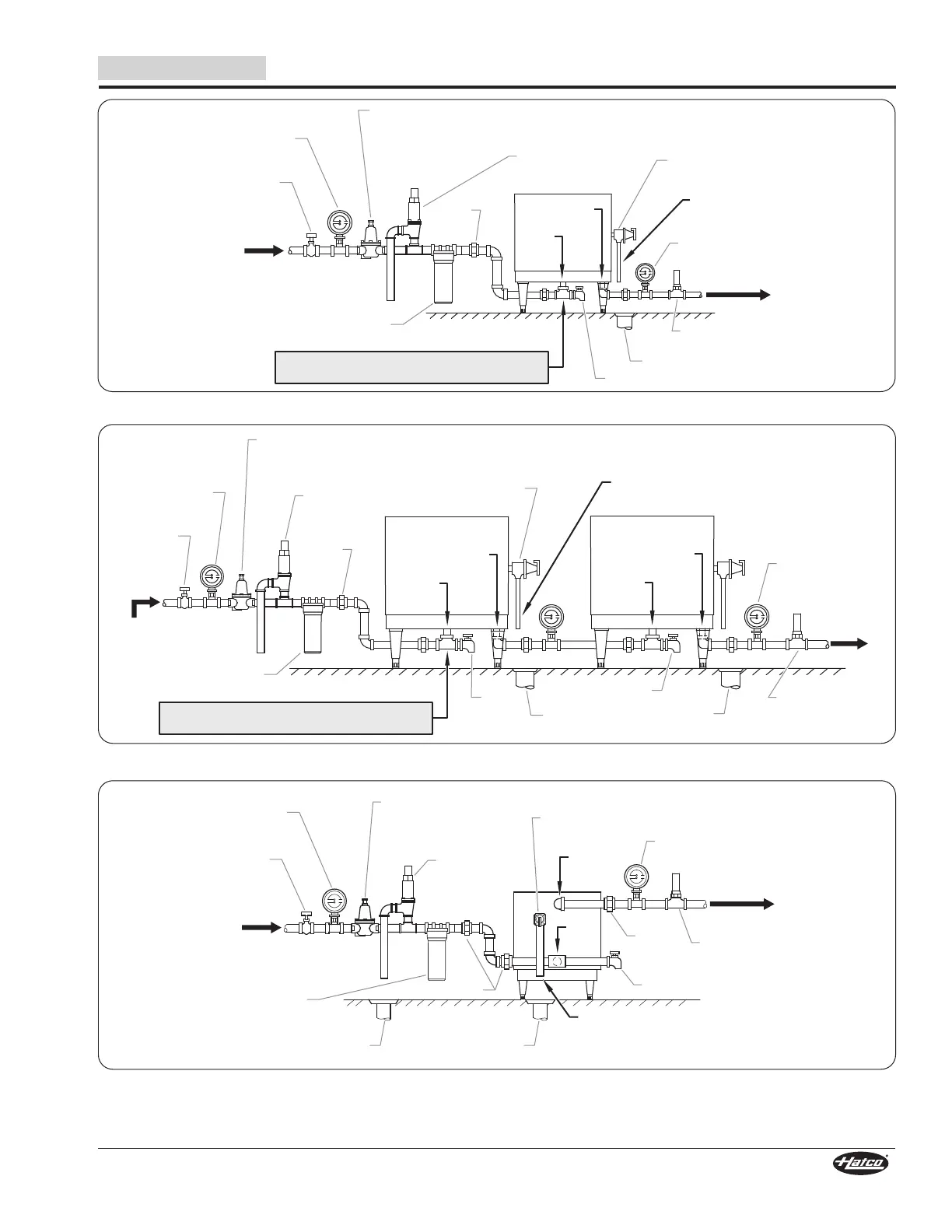

Hatco C-12 User Manual

#'(!!($#
>7<9C8
EHC'E((,-+&6'

Temperature/
Pressure Gauge
Temperature/Pressure
Relief Valve
Pressure Reducing
Valve with Bypass
20 psi (138 kPa) flow
pressure maximum
Temperature/
Pressure Gauge
Shock Absorber
for water hammer†
Outlet to
Dishwasher
Discharge from T/P Valve.
Air gap must comply
with plumbing code.
3/4″ Gate or
Ball Valve*
Water Inlet from
primary water
heater
Blended Phosphate Water
Treatment System†
Outlet
Inlet
Drain Valve*
3/4″
Union*
3/4″ Union*
Back Pressure
Relief Valve†
Floor Drain*Floor Drain*
Temperature/
Pressure Gauge
Pressure Reducing
Valve with Bypass
20 psi (138 kPa) flow
pressure maximum
Temperature/
Pressure Gauge
Floor Drain*
Shock Absorber
for water hammer†
Outlet to
Dishwasher
Discharge from T/P Valve.
Air gaps must comply
with plumbing code.
3/4″ Gate or
Ball Valve*
Water Inlet from
primary water heater
Blended Phosphate Water
Treatment System†
Outlet
3/4″
Union*
Back
Pressure
Relief Valve†
Inlet
Temperature/Pressure
Relief Valve
Drain Valve*
Outlet
Inlet
Floor Drain*
Drain
Valve*
NOTE: Centerline of booster “T” fitting must
not extend closer than 102 mm (4″) to the floor.
Temperature/
Pressure Gauge
Pressure Reducing
Valve with Bypass
20 psi (138 kPa) flow
pressure maximum
Temperature/
Pressure Gauge
Floor Drain*
Shock Absorber
for water hammer†
Outlet to
Dishwasher
Discharge from T/P Valve.
Air gap must comply
with plumbing code.
3/4″ Gate or
Ball Valve*
Water Inlet from
primary water
heater
Blended Phosphate Water
Treatment System†
Outlet
3/4″
Union*
Back
Pressure
Relief Valve†
Inlet
Temperature/Pressure
Relief Valve
Drain Valve*
NOTE: Centerline of booster “T” fitting must
not extend closer than 102 mm (4″) to the floor.
?=KH;)BKC8?D=EDD;9J?EDIECF79J,;H?;IA0
?=KH;)BKC8?D=EDD;9J?EDI-ME"CF;H?7B&E:;BIEDD;9J;:?D,;H?;I
?=KH;)BKC8?D=EDD;9J?EDI"CF;H?7BX,Y,;H?;I
'EJIKFFB?;:M?J>8EEIJ;HM7J;H>;7J;H
Q(FJ?ED7B799;IIEHO

Hatco C-12 Specifications

General

Brand	Hatco
Model	C-12
Category	Water Heater
Language	English
