Hatco GRS Series - Page 36

Formulaire n° GRSM-0719
36
Français
INSTALLATION
Découpe Du Plateau Voir — Modéles GRSB
Modèle
Largeur Profonduer
GRSB-24-F 622 mm (24-1/2″) – 629 mm (24-3/4″) 406 mm (16″) – 413 mm (16-1/4″)
GRSB-24-I 622 mm (24-1/2″) – 629 mm (24-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-24-O 622 mm (24-1/2″) – 629 mm (24-3/4″) 775 mm (30-1/2″) – 781 mm (30-3/4″)
GRSB-30-F 775 mm (30-1/2″) – 781 mm (30-3/4″) 406 mm (16″) – 413 mm (16-1/4″)
GRSB-30-I 775 mm (30-1/2″) – 781 mm (30-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-30-O 775 mm (30-1/2″) – 781 mm (30-3/4″) 775 mm (30-1/2″) – 781 mm (30-3/4″)
GRSB-36-F 927 mm (36-1/2″) – 934 mm (36-3/4″) 406 mm (16″) – 413 mm (16-1/4″)
GRSB-36-I 927 mm (36-1/2″) – 934 mm (36-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-36-O 927 mm (36-1/2″) – 934 mm (36-3/4″) 775 mm (30-1/2″) – 781 mm (30-3/4″)
GRSB-42-F 1080 mm (42-1/2″) – 1086 mm (42-3/4″) 406 mm (16″) – 413 mm (16-1/4″)
GRSB-42-I 1080 mm (42-1/2″) – 1086 mm (42-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-42-O 1080 mm (42-1/2″) – 1086 mm (42-3/4″) 775 mm (30-1/2″) – 781 mm (30-3/4″)
GRSB-48-F 1232 mm (48-1/2″) – 1238 mm (48-3/4″) 406 mm (16″) – 413 mm (16-1/4″)
GRSB-48-I 1232 mm (48-1/2″) – 1238 mm (48-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-48-O 1232 mm (48-1/2″) – 1238 mm (48-3/4″) 775 mm (30-1/2″) – 781 mm (30-3/4″)
GRSB-54-I 1384 mm (54-1/2″) – 1391 mm (54-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-60-F 1537 mm (60-1/2″) – 1543 mm (60-3/4″) 406 mm (16″) – 413 mm (16-1/4″)
GRSB-60-I 1537 mm (60-1/2″) – 1543 mm (60-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-60-O 1537 mm (60-1/2″) – 1543 mm (60-3/4″) 775 mm (30-1/2″) – 781 mm (30-3/4″)
GRSB-66-F 1689 mm (66-1/2″) – 1696 mm (66-3/4″) 406 mm (16″) – 413 mm (16-1/4″)
GRSB-66-I 1689 mm (66-1/2″) – 1696 mm (66-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-72-F 1842 mm (72-1/2″) – 1848 mm (72-3/4″) 406 mm (16″) – 413 mm (16-1/4″)
GRSB-72-I 1842 mm (72-1/2″) – 1848 mm (72-3/4″) 508 mm (20″) – 413 mm (20-1/4″)
GRSB-72-O 1842 mm (72-1/2″) – 1848 mm (72-3/4″) 775 mm (30-1/2″) – 781 mm (30-3/4″)

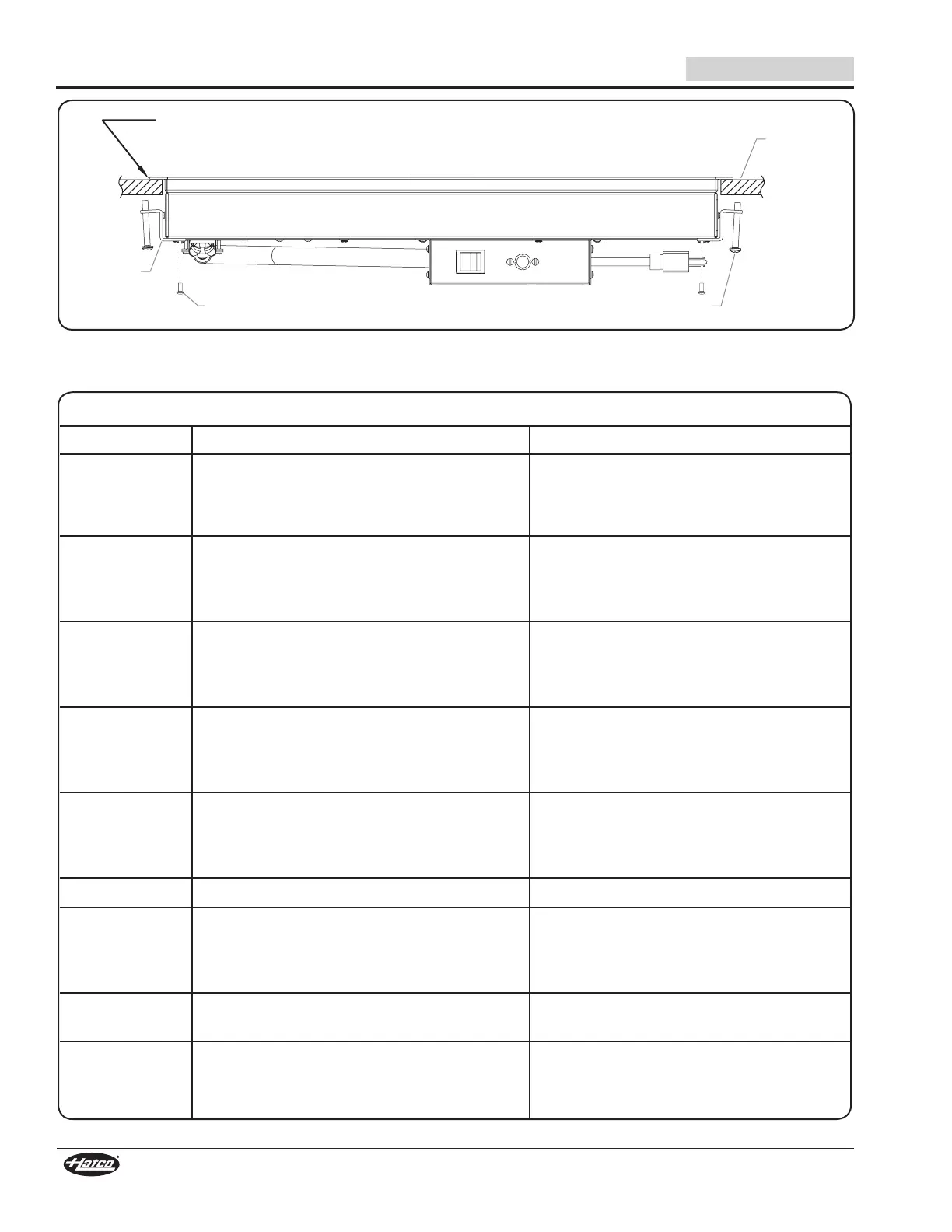

Vis de Support
Comptoir
Métallique
Vis de Montage
A
ttache Z
Appliquez un cordon d'agent d'étanchéité homologué par
la NSF entre le comptoir et le rebord de fixation de l'appareil.
L'agent d'étanchéité doit être homologué pour une utilisation
à une température minimum de 121°C (250°F).
Modèle GRSB — Installation
