Hatco HDW-2 User Manual

Form No. HDWM_CN-0817
8
English

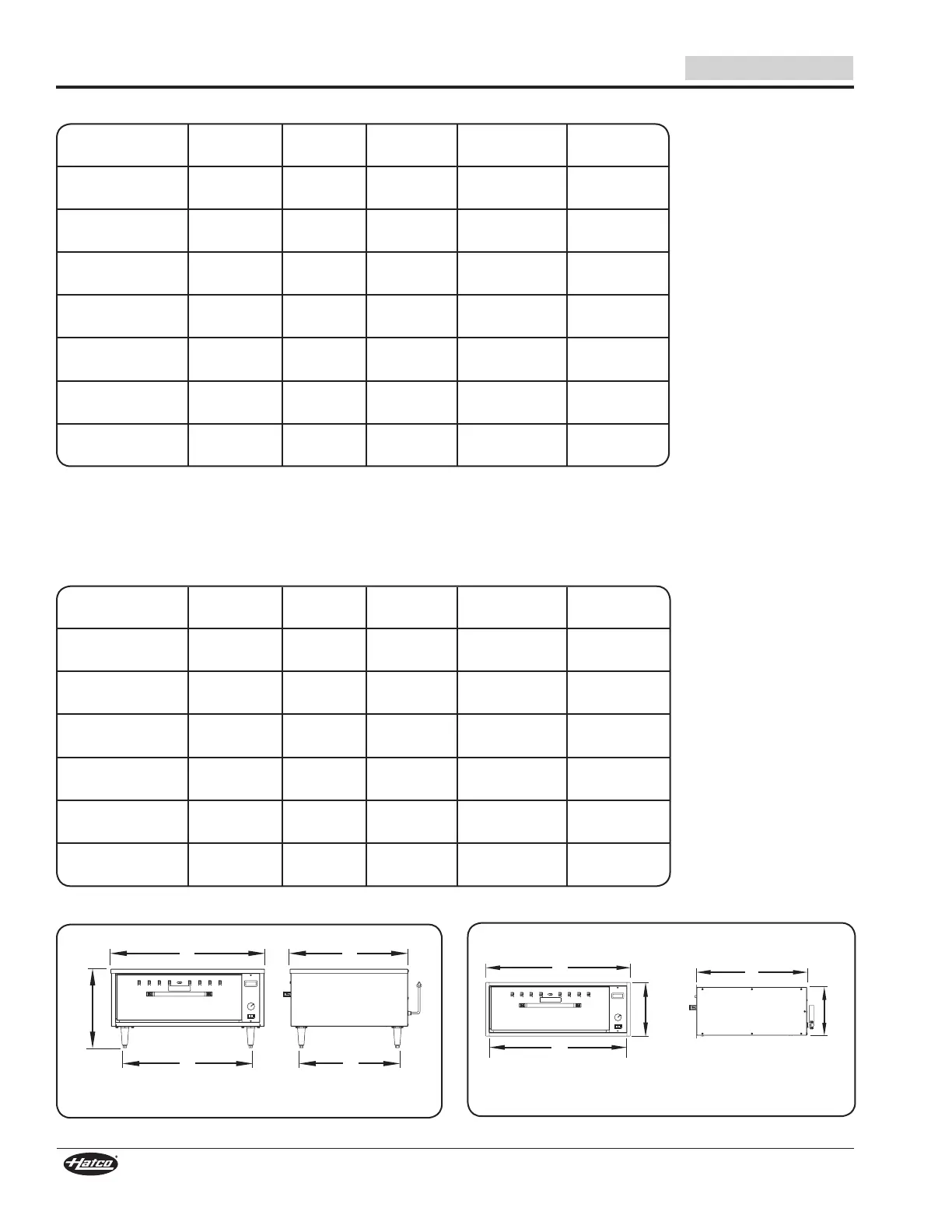

Dimensions — HDW-x and HDW-xN Models
A B
D E
C
Front View Side View
Model
Width
(A)
Depth
(B) †
Height
(C) *
Footprint
Width (D)
Footprint
Depth (E)
HDW-1 749 mm
(29-1/2″)
575 mm
(22-5/8″)
381 mm
(15-1/16″)
629 mm
(24-3/4″)
484 mm
(19-1/16″)
HDW-2 749 mm
(29-1/2″)
575 mm
(22-5/8″)
639 mm
(25-3/16″)
629 mm
(24-3/4″)
484 mm
(19-1/16″)
HDW-3 749 mm
(29-1/2″)
575 mm
(22-5/8″)
896 mm
(35-1/4″)
629 mm
(24-3/4″)
484 mm
(19-1/16″)
HDW-4 749 mm
(29-1/2″)
575 mm
(22-5/8″)
1203 mm
(47-3/8″)
629 mm
(24-3/4″)
484 mm
(19-1/16″)
HDW-1N 530 mm
(20-7/8″)
686 mm
(27″)
381 mm
(15-1/16″)
408 mm
(16-1/8″)
594 mm
(23-7/16″)
HDW-2N 530 mm
(20-7/8″)
686 mm
(27″)
639 mm
(25-3/16″)
408 mm
(16-1/8″)
594 mm
(23-7/16″)
HDW-3N 530 mm
(20-7/8″)
686 mm
(27″)
896 mm
(35-1/4″)
408 mm
(16-1/8″)
594 mm
(23-7/16″)
Dimensions — HDW-xB and HDW-xBN Models
Model
Width
(A)
Depth
(B) †
Height
(C)
Built-In
Width (D)
Built-In
Height (E)
HDW-1B 743 mm
(29-1/4″)
568 mm
(22-3/8″)
276 mm
(10-7/8″)
715 mm
(28-3/16″)
248 mm
(9-13/16″)
HDW-2B 743 mm
(29-1/4″)
568 mm
(22-3/8″)
534 mm
(21″)
715 mm
(28-3/16″)
506 mm
(19-15/16″)
HDW-3B 743 mm
(29-1/4″)
568 mm
(22-3/8″)
791 mm
(31-1/8″)
715 mm
(28-3/16″)
763 mm
(30″)
HDW-1BN 523 mm
(20-9/16″)
680 mm
(26-3/4″)
276 mm
(10-7/8″)
494 mm
(19-1/2″)
248 mm
(9-13/16″)
HDW-2BN 523 mm
(20-9/16″)
680 mm
(26-3/4″)
534 mm
(21″)
494 mm
(19-1/2″)
506 mm
(19-15/16″)
HDW-3BN 523 mm
(20-9/16″)
680 mm
(26-3/4″)
791 mm
(31-1/8″)
494 mm
(19-1/2″)
763 mm
(30″)
* Height (C) includes 102 mm (4″) legs for 1–3 drawer models and 152 mm (6″) legs for 4 drawer models.
Refer to the OPTIONS AND ACCESSORIES section for Height (C) with optional casters.
† Add 70 mm (2-3/4″) to Depth (B) to include the drawer handle and power cord/conduit connector.
A
B
C
D
E
Front View
Side View
