Preparation - Engine model with dry air filter

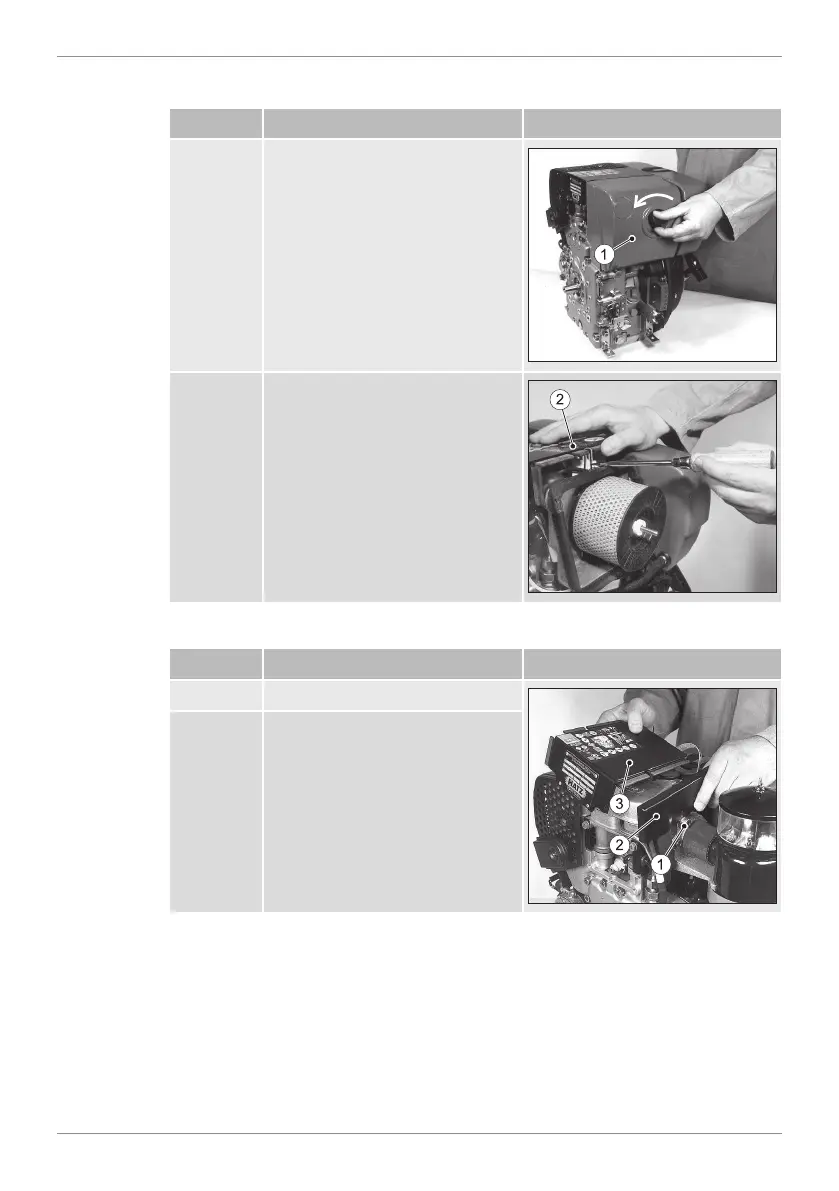

Step Activity Figure
1 Unscrew the air filter cover (1).
2 Remove the sound protection
hood (2).
Preparation - Engine model with oil bath filter
Step Activity Figure
1 Release the screw (1).
2 Take off the cover plate (2)
with the sound protection hood
(3).
