Maintenance 1B20, 1B30, 1B40, 1B50
68
HATZ
Manual
Preparations - Engine model with rammer operation (1B20 R)
Step Activity Figure

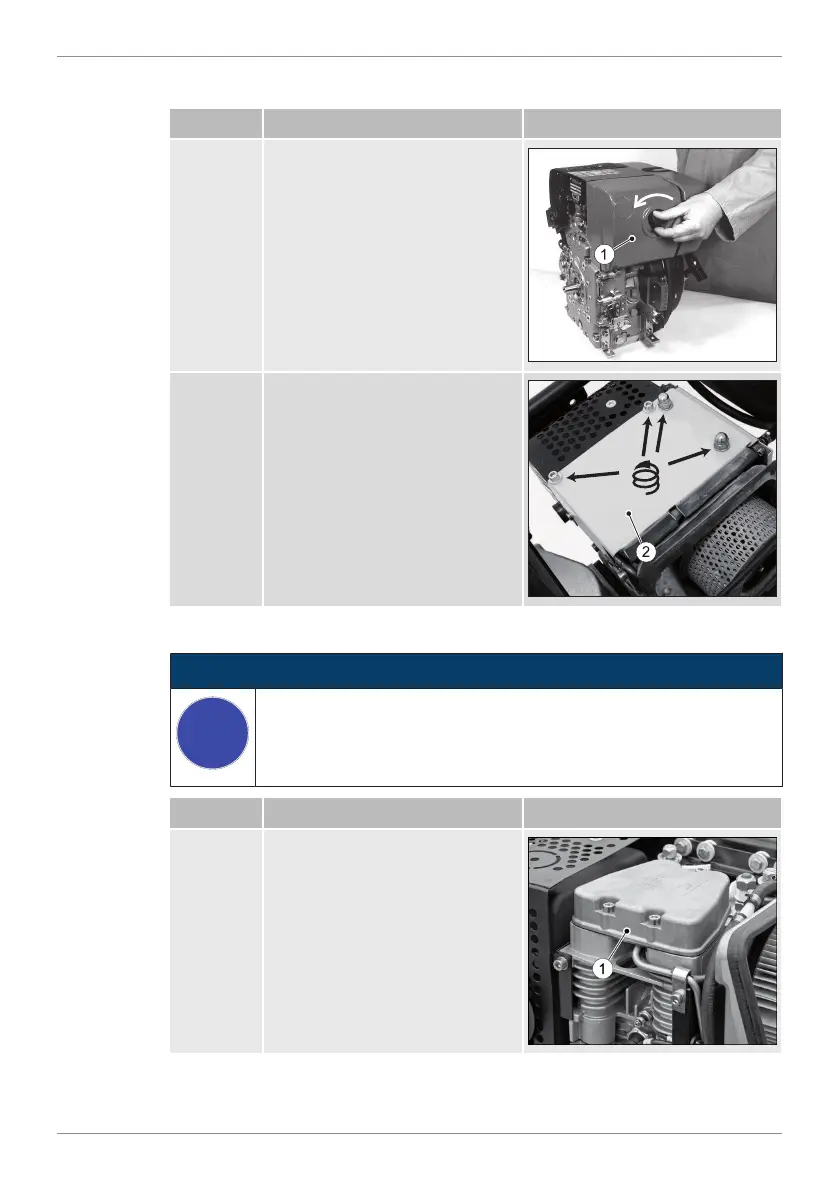

1 Unscrew the air filter cap (1).
2 Remove the screws and nuts.
Remove the sound protection
hood (2).
Procedure
NOTICE
i
The steps described here can only be performed after the ap-
propriate preparations have been completed.
Step Activity Figure
1 Remove dirt in the area of the
cylinder head cover (1).
