Encapsulated engine

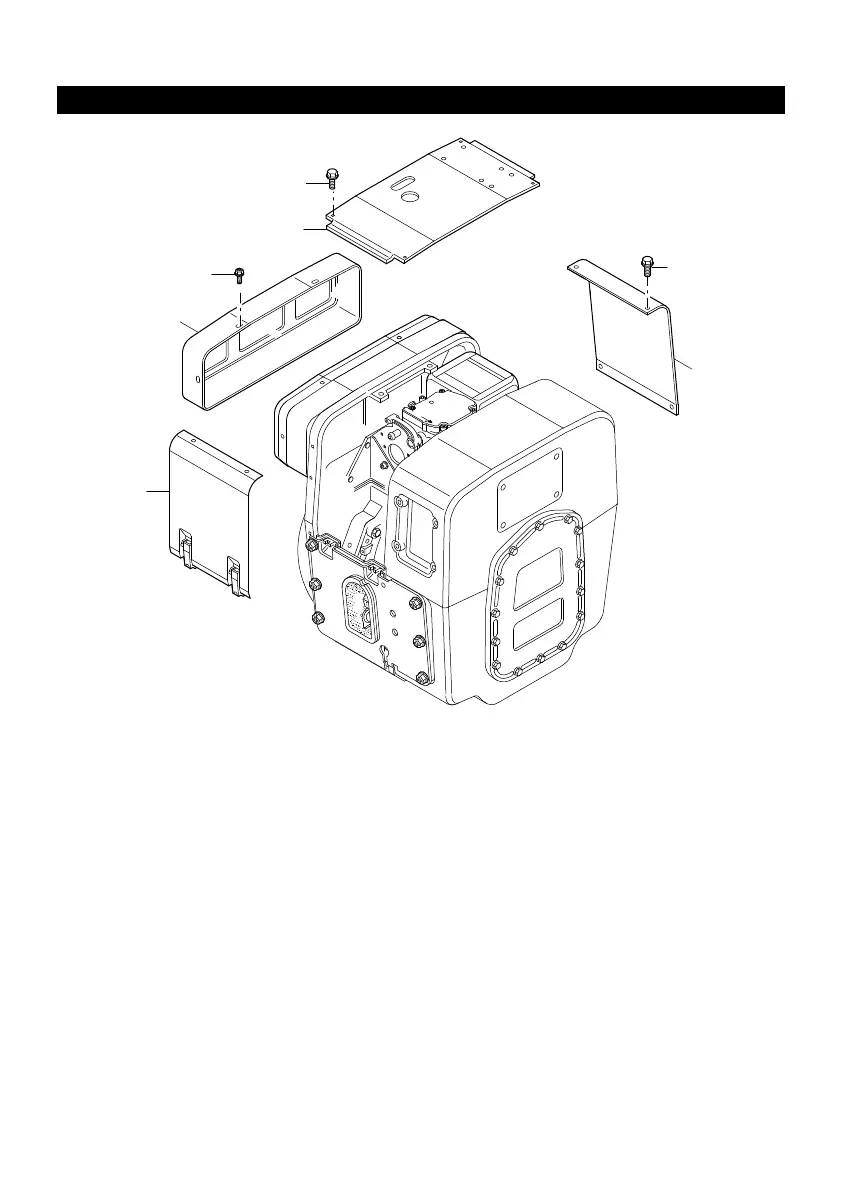

Before dismantling the exhaust system the capsule has to be dismounted:
• Remove the four screws (2) of the top cover (3).
• Remove the side cover (1) by opening the two clips.
• Open the four screws (4) of the side cover (5).
• Remove the top cover (3) and the side cover (5)
• Dismantle the exhaust silencer cover (7) by opening the six screws (6).
