48

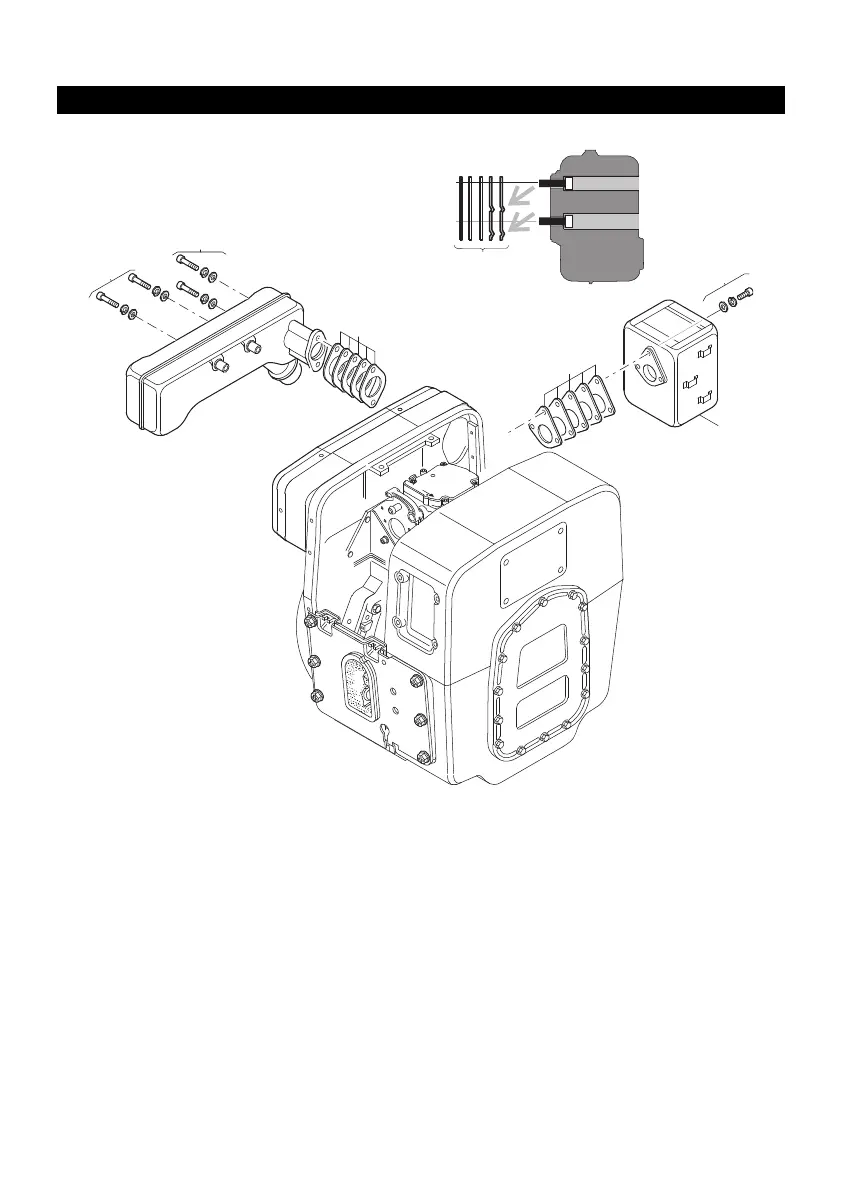

Sequence of dismantling the exhaust system:
• Open screws (1) and (2) and remove with shims.
• Remove big silencer with attached sealing gaskets (3).
• Open screws (4) and remove with shims.
• Remove silencer (5) with attached sealing gaskets (6).
4
6
5
1
3
2
6
1D41 C · 1D81 C
