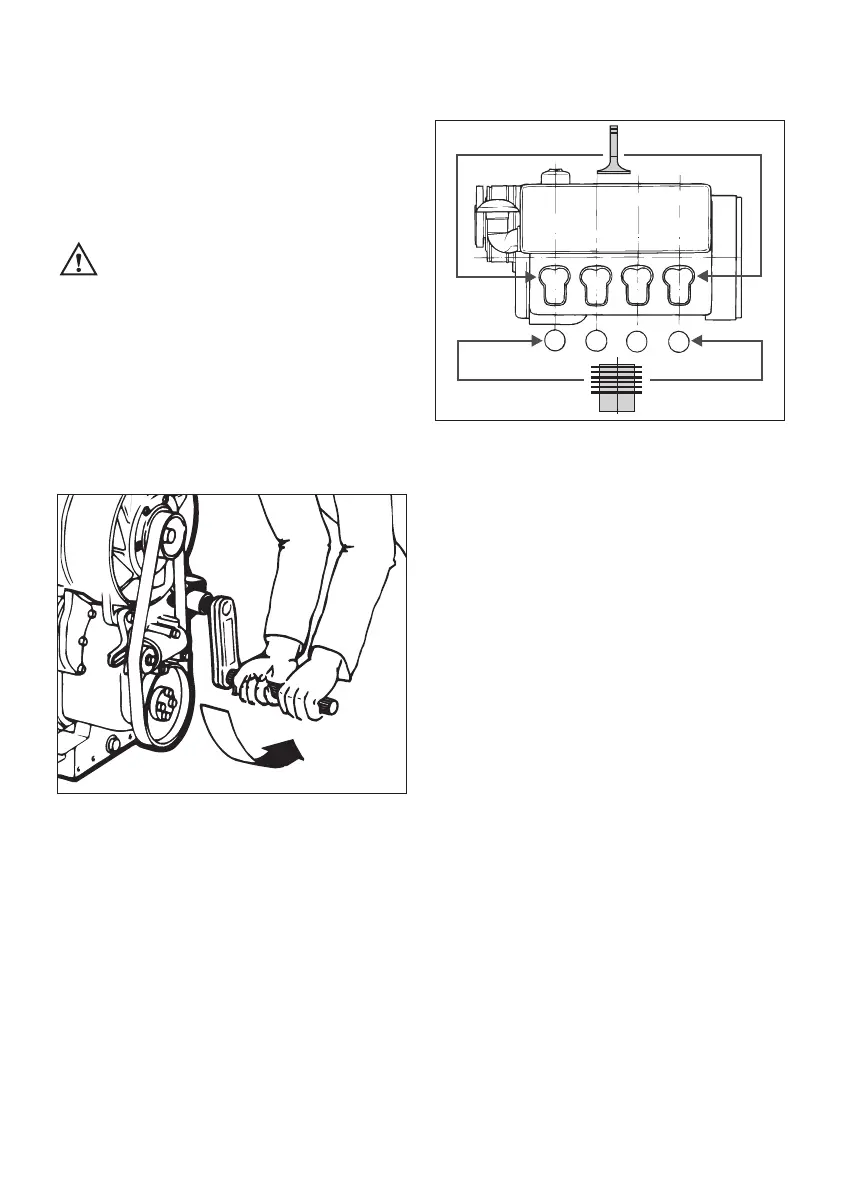

Important !
Turn decompression levers only in the direction
shown by the arrow.
Exception:
the lever can be moved back directly from posi-
tion „1“ to „0“.
Never operate the automatic decom-
pression system when the engine is
running.
– Check that the starting handle is in correct
working order, without a broken tubular handle
worn engagement dogs or similar faults.
– Lightly grease the sliding-contact area between
the starting handle and the guide sleeve.
19
– Insert the starting handle, hold it with both
hands and stand in the correct position in
relation to the engine.
– Turn the engine over until it is felt to move
more freely.
2M41 two-cylinder engines
– Turn the decompression lever to position „2“
(Figure 18).
L3/2
3M41 three-cylinder engines
20
– Turn the decompression levers for cylinders 1
and 3 (counting from the fan end) to position
„2“ (Figures 18 and 20).
– Turn the decompression lever for cylinder 2 to
position „3“.
4M41 four-cylinder engines
– Turn the decompression levers for cylinders 1,
3 and 4 (counting from the fan end) to posi-
tion „2“ (Figures 18 and 20).
– Turn the decompression lever for cylinder 2 to
position „3“.
Starting procedure
– Turn the starting handle with both hands at an
increasing speed.
The maximum speed of rotation must have been
reached by the time the decompression lever
has returned to position „0“.
– As soon as the engine has started, pull the
starting handle out of the guide sleeve.
1
2
3
4
12 34
5
6
7
8
L3/246
18
