Description of engine
Standard version
Engine 4 M 42
8
4

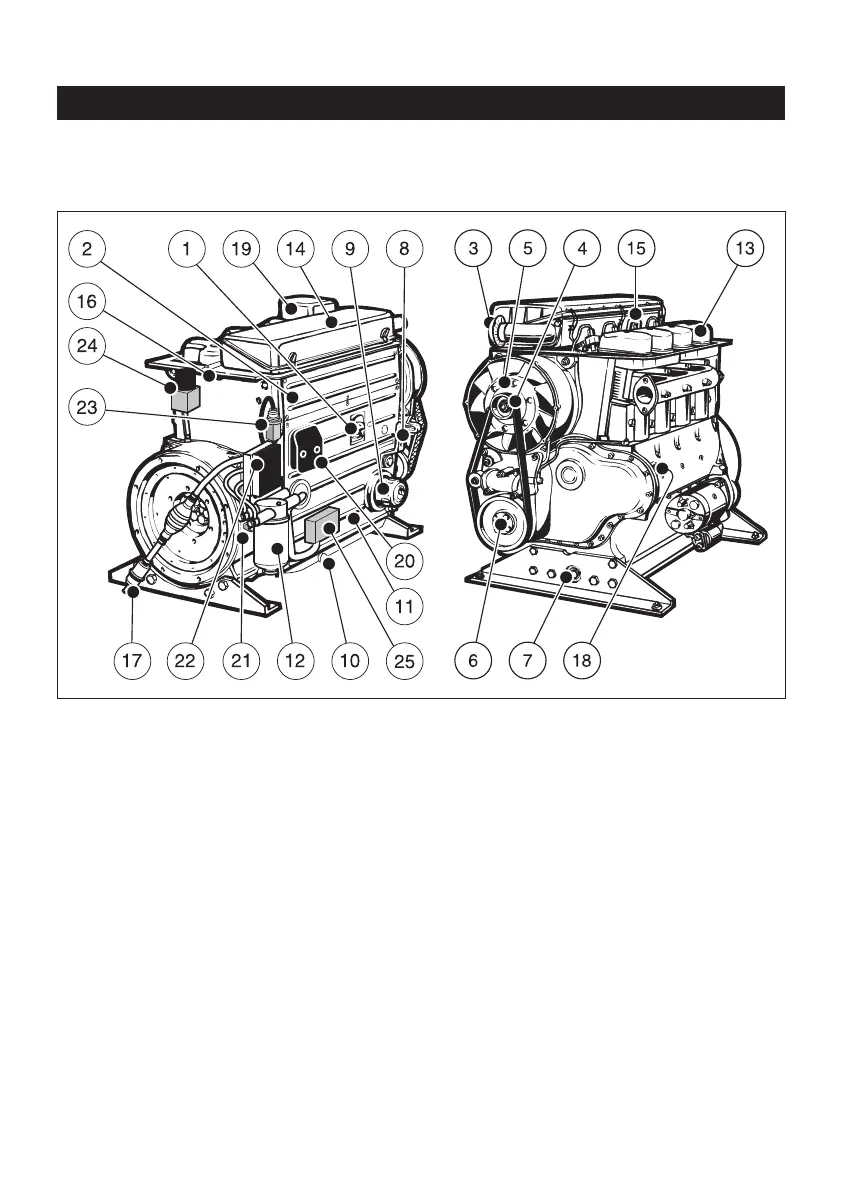

1 Oil filler pipe and dipstick
2 Side panel
3 Combustion air intake aperture
4 Cooling fan drive belt
5 Cooling fan with alternator attached
6 1/2-inch intl. hex socket for turning over
engine
7 Oil drain plug
8 Speed control lever
9 Replaceable-element oil filter
10 Oil drain plug (if sump is fitted)
11 Cooling air duct for engine oil cooler
12 Fuel filter
13 Cylinder head cover
14 Air cleaner cover
15 Suspension lug, max. load 5000 N
16 Fuel return line
17 Fuel feed line with fuel pre-filter and
manual fuel pump
18 Type plate
19 Exhaust silencer
20 Central plug for electrical system
21 Battery connections
22 Power-Box
23 Electrical maintenance switch for
air cleaner
24 Exhaust gas return valve (EGR)
25 Electronic control unit
