8.2.11 Maintaining the dry air filter

NOTICE

▪ Immediately clean the filter cartridge if the maintenance dis-

play appears at maximum speed.

▪ Renew the filter cartridge after a use period of 500 operating

hours.

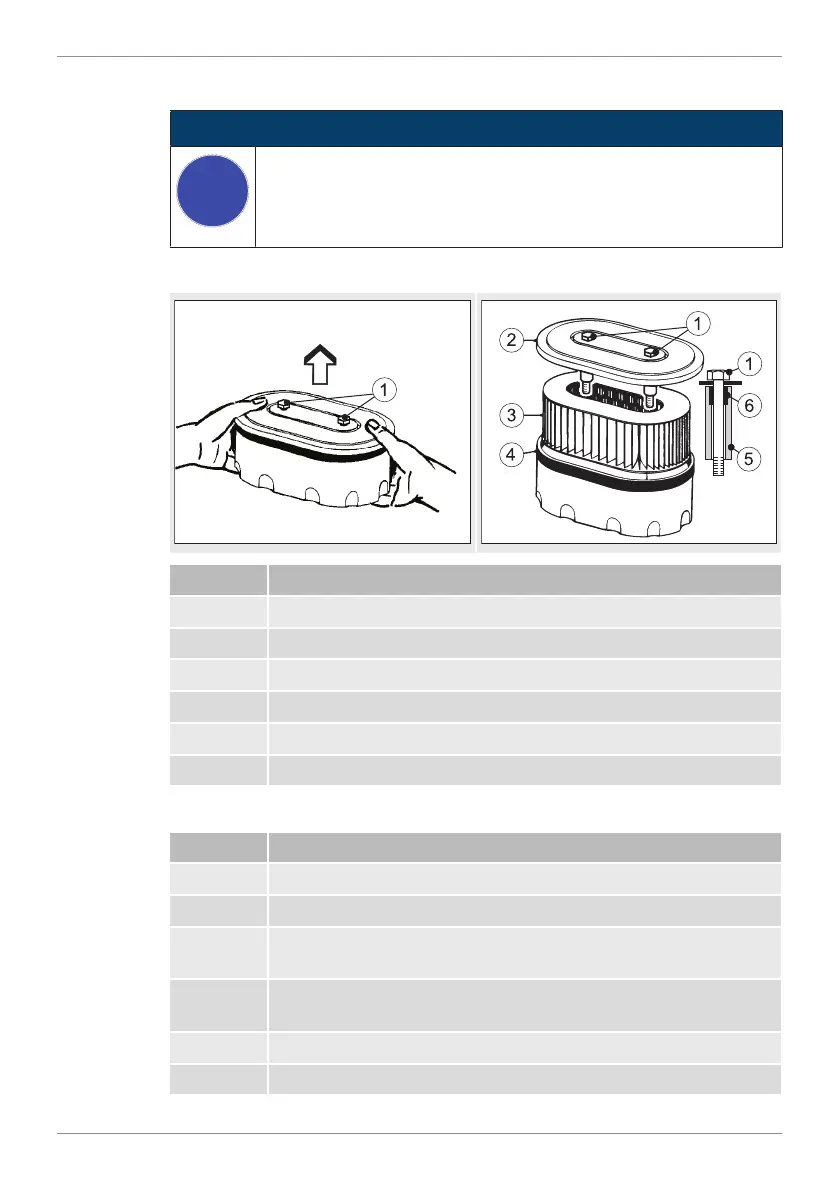

Overview of engine 2L41C

Pos. Designation

1 Screw

2 Cover

3 Filter cartridge

4 Air filter housing

5 Spacer

6 Bushing

Remove the air filter cartridge - engine 2L41C

Step Activity

1 Remove the capsule hood.

2 Remove adherent dirt in the area of the air filter housing (4).

3 Only loosen the screws (1) to the point where you can lift off

the complete air filter housing (4).

4 Cover the opening in the intake pipe to prevent ingress of dirt

and other foreign bodies.

6 Open the air filter housing (4).

7 Take out the filter cartridge (3).
