HAUL MASTER 41005 - Parts List

MODEL # 41005 TRAILER JACK
Page 5 SKU # 41005

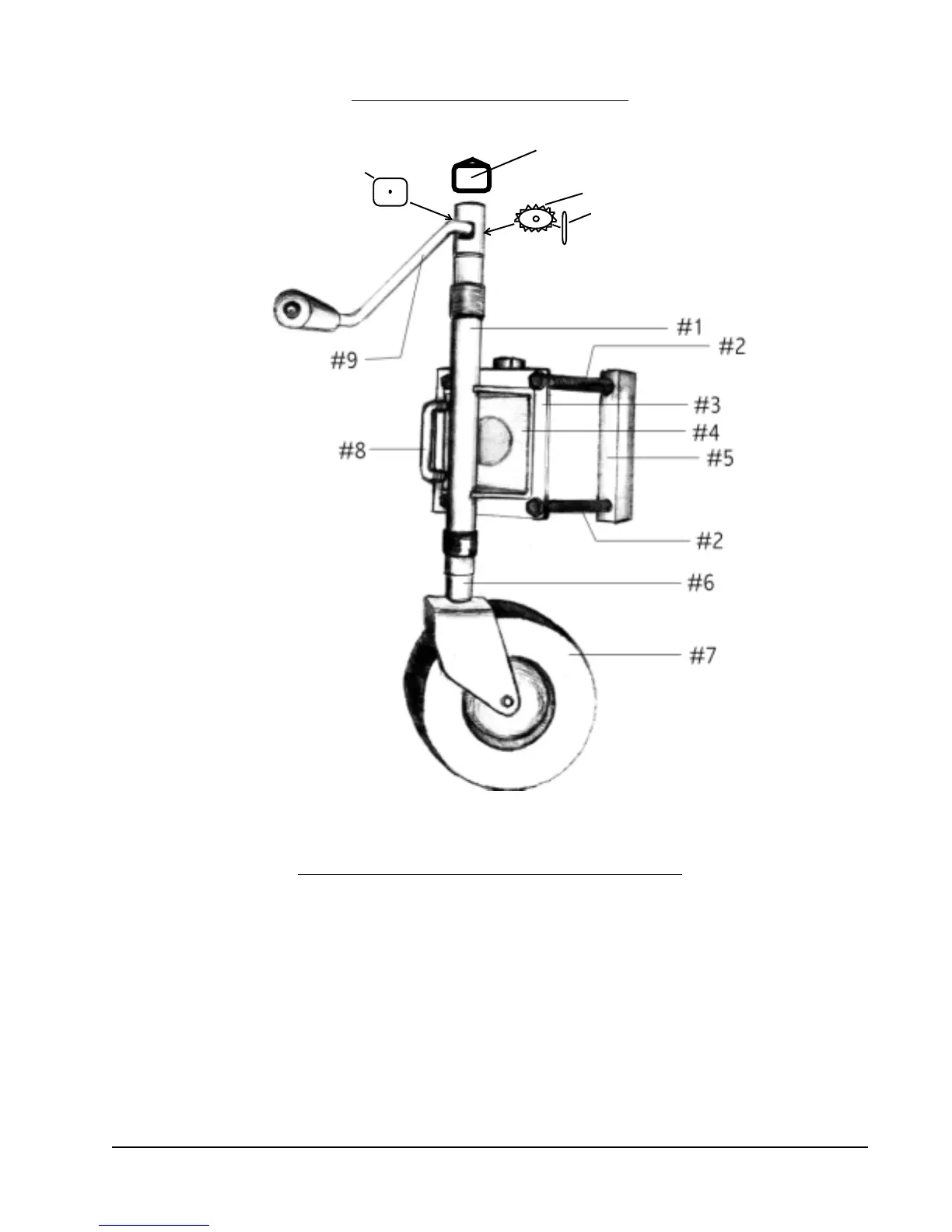

MODEL # 41005 TRAILER JACK PARTS LIST
Part # Description
1 Outer Tube
2 Mounting Hardware (4 sets)
3 Mounting Plate
4 Swivel Plate
5 Mounting Bar (2)
6 Inner Tube
7 Caster Wheel Assembly
8 Swivel Handle
9 Jack handle
10 Plastic Cap
REV 01a; 04k
#10
A
B
C
Part # Description
A Crankshaft Plate
B Gear Pin
C Gear
