4. Attach both Hook Tubes (8) to the Carrier Frame (6)
using two Round Head Bolts (7) and two Nuts
(4) for each Hook Tube (8). See Figure D.
Round Head
Bolt (7)
Hook
Tube (8)
Nut (4)
Carrier
Frame (6)

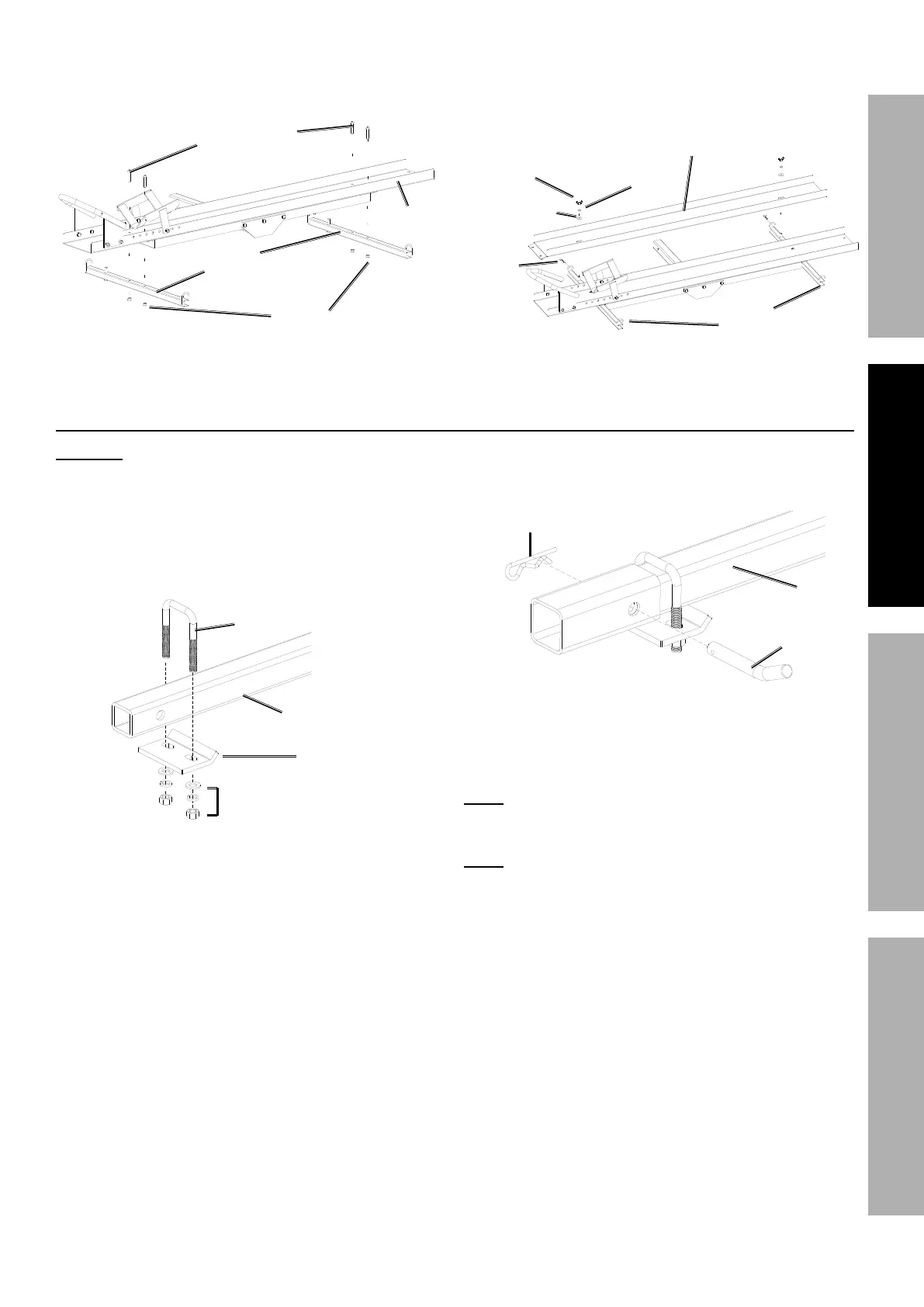

Figure D: Hook Tube Installation
5. Attach Ramp (3) to Hook Tubes (8)
with Wing Nut (9), Washer (10) and
Nylon Washer (11). Secure each side of
Ramp (3) with R-Clip (15). See Figure E.
Ramp (3)
Wing Nut (9)
Washer (10)
Nylon
Washer (11)
R-Clip
(15)
Hook
Tube (8)
Figure E: Ramp Attachment
Mounting to Hitch Receiver
Warning! TO PREVENT SERIOUS INJURY: Turn
off the vehicle’s ignition and set the parking brake
before installing, loading, or unloading Carrier.
1. Secure Stabilizer Plate (17) and U-Bolt
(16) around Hitch Tube (12) using two
sets of Nuts, Spring Washers, and Flat
Washers (18). See Figure F.
U-Bolt (16)
Hitch Tube (12)
Stabilizer
Plate (17)
Nut, Spring Washer,
Flat Washer (18)
Figure F: Stabilizer Plate Assembly
2. Insert Hitch Tube into the hitch receiver
(not included) of vehicle.
3. Insert Hitch Pin (13) through Hole
in Hitch Tube. Secure Hitch Pin with
Hitch R-Clip (14). See Figure G.
Hitch Pin (13)
Hitch Tube (12)
Hitch R-Clip (14)
Figure G: Securing Carrier to Hitch Receiver
4. Tighten Nuts (18) on U-Bolt (16). DO
NOT OVER TIGHTEN. Nuts should
not exceed 20 ft. lb. of torque.
Note: The stabilizer plate assembly will
take up tolerances in the product, but
will NOT prevent all movement.
Note: A light kit (such as Kenway 64275, sold
separately) must be installed on this hitch-mounted
carrier if your cargo blocks the license plate
and/or tail lights on your vehicle. Please review
your state or local laws regarding tail lights and
license plates for required location and lighting.
