Page 6 For technical questions, please call 1-888-866-5797. Item 57720
SAFETY OPERATION MAINTENANCEASSEMBLY

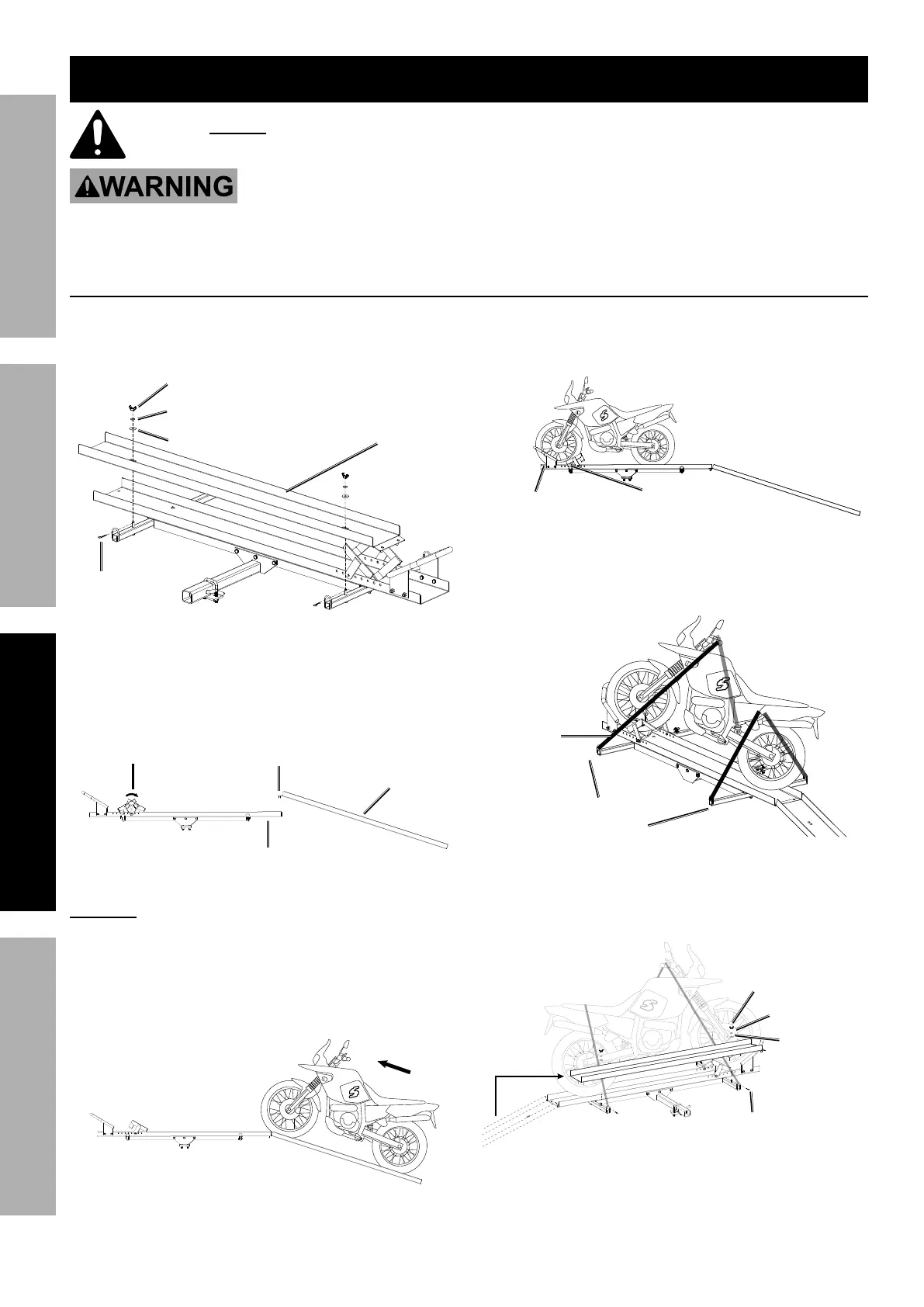

Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY:
Turn off vehicle and engage parking break before loading or unloading carrier.
Loading
1. Remove R-Clips (15), Wing Nuts (9),
Plate Washers (10) and Nylon Washers (11)
from each side of the Ramp (3). See Figure H.
Wing Nut (9)
Plate Washer (10)
Nylon Washer (11)
Ramp (3)
R-Clip (15)
Figure H: Unlocking Ramp
2. Remove Ramp (3) and place end
rung onto Carrier Frame (6).
3. Open the Wheel Chock Dropleaf (2). See Figure I.
Wheel Chock
Dropleaf (2)
End Rung
Ramp (3)
Carrier Frame (6)
Figure I: Loading Position
Warning! To Prevent Serious Injury: Use two
people to push motorcycle onto Carrier Frame.
Do not drive motorcycle onto Carrier Frame.
4. Shift motorcycle into neutral and, with another
person’s assistance, push motorcycle up Ramp (3)
and onto Carrier Frame (6). See Figure J.
Figure J: Loading Motorcycle
5. Push the motorcycle until the front wheel rests
between Wheel Chock Front Frame (1) and
Wheel Chock Dropleaf (2). See Figure K.
Wheel Chock
Dropleaf (2)
Wheel Chock
Front Frame (1)
Figure K: Loaded Motorcycle
6. Secure motorcycle with straps to the holes
on Hook Tube (8). See Figure L.
Straps
(not included)
Hook Tube
Holes
Figure L: Securing Motorcycle
7. Return Ramp (3) to mounted position and secure
with R-Clip (15), Wing Nut (9), Plate Washer (10)
and Nylon Washer (11) to lock Ramp (3).
Wing
Nut (9)
Plate
Washer (10)
Nylon
Washer (11)
R-Clip (15)
Figure M: Securing Ramp
8. Check that motorcycle and ramp are
both secured before transporting.
To Next Page
