Engine-powered articulated lifts, 12 - 26 m
F
- Special procedure
3 - Towing
In case of a machine failure, it is possible to tow it to load it onto a trailer.

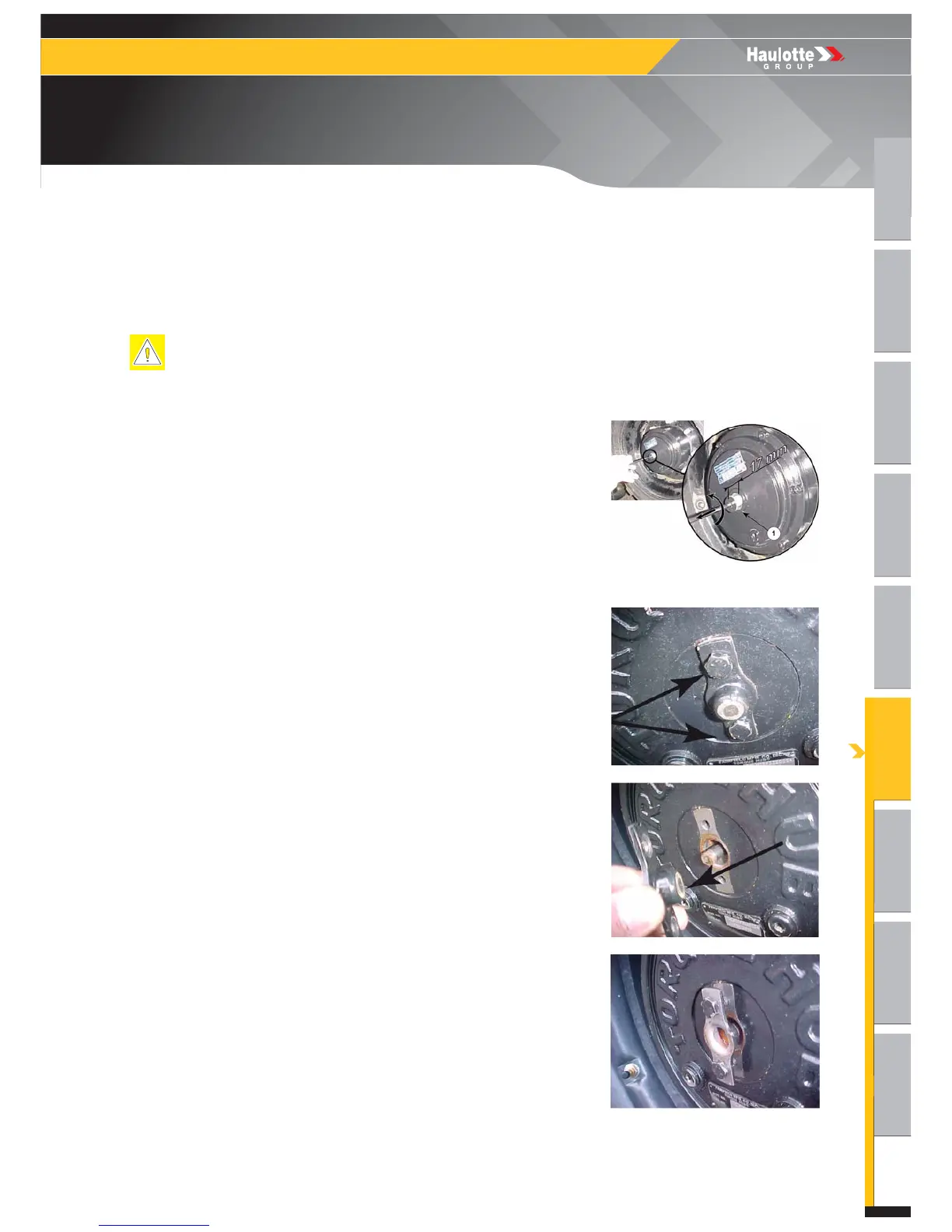

3.1 - DISSENGAGING THE DRIVE HUBS
To tow a broken-down machine, disconnect the wheel drive hubs.
For : HA120PX
For : HA16X - HA16SPX - HA18SPX - HA16PX - HA18PX - HA20PX
Perform these operations on flat, horizontal ground. Failing that, block the wheels to immobilize the
machine. During an operation of disengaging the drive hubs, the machine is in free wheels, the brake
system no longer functions.
Unscrew the central nut ( 1 ) until the nut is at the limit.
Unscrew the 2 nuts with an 11 mm spanner.
Turn the part and screw it back on.
The gears are released.
