8 - Leveling system calibration procedure
8.1 - MACHINE LEVELLING INSTRUCTIONS

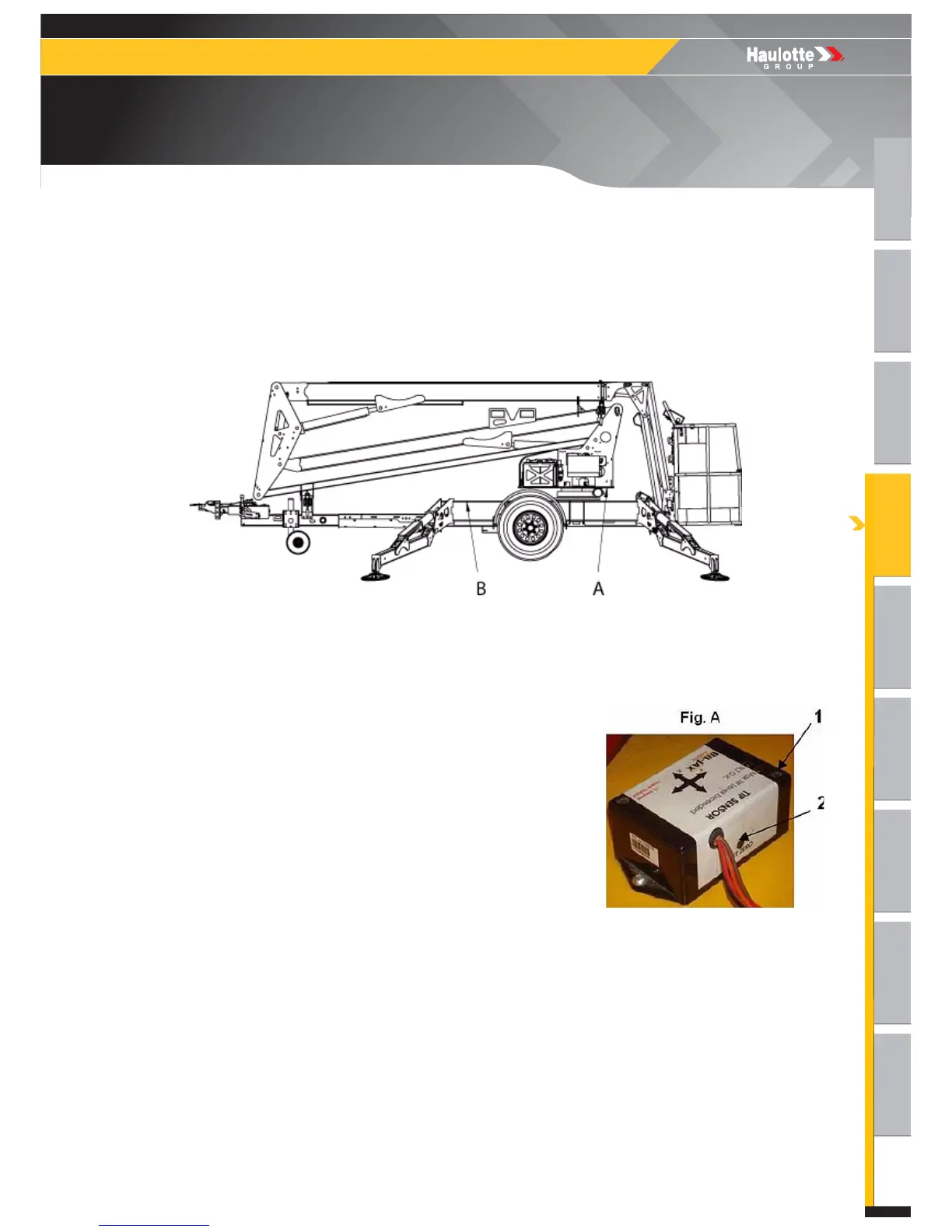

Deploy all of the outriggers, and slightly raise the base of the machine to position it for leveling.
Place a small, standard "level" on the base of the turntable (Level Placement Option A). If a
small "level" is not available, place any size, standard "level" on the base of the machine (Level
Placement Option B). Using the outriggers individually, level the base of the machine.
Position Machine for Leveling
8.2 - LEVEL SENSOR CALIBRATION INSTRUCTIONS
If your level sensor resembles the image in Figure ( A ),
(digitally based level sensor), follow these instructions.
Be aware that the LED's ( 1 ) on the top of the sensor
will need to be observed, the "Max Tilt Level Exceeded"
LED is red, and the "TILT OK" LED is green :
• Press (push) and hold the SET ZERO button ( 2 ), located
on the rear of the sensor, for 5 seconds. Both LED's will
begin to flash.
• While they are flashing, release the SET ZERO button, and
press (push) again 5 times within the next 3 seconds.
• Both the red and the green LED will be "ON SOLID", after
several moments the red LED should turn "OFF", the
"green" LED will stay lit. This is an indication that the
sensor "recognizes" this level position.
• Proceed to the "Ground (Lower) Control Box Calibration
Instructions".
