OPErATINg INSTruCTIONS

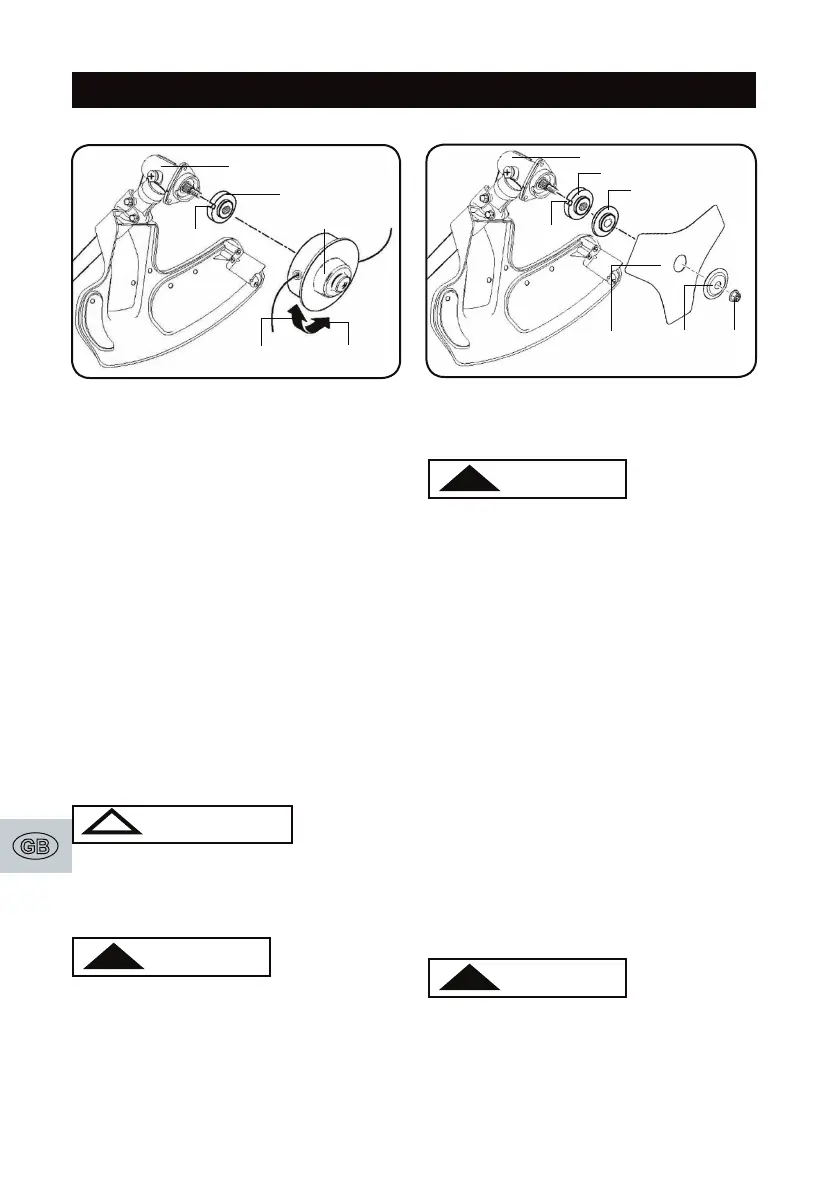

MOuNTINg THE 10” 3-TOOTH bLADE
(FIG. 7)
1. Place the hollow anged washer on the
gear head shaft.
NOTE: The hollow side of the anged washer
should face the gear head.
2. Align the slot in the hollow anged
washer with the slot in the gear head.
3. Install the 10” 3-tooth Steel blade onto
the gear head shaft.
4. Place the at side of the anged washer
onto the gear head shaft and over the
blade.
5. Place the cupped washer onto the gear
head shaft and over the anged washer.
6. Install the nut and turn counter-clockwise
with the tool provided to lock the blade in
place.
Torque nut to 30 n.m. or 3 mkg.
7. Conrm blade is locked in place and
ready for use.
If the blade is not correctly positioned,
serious injury to the unit and/or its operator
may result.
IMPOrTANT
!
WArNINg
!
FuEL
Brush Cutter Fuel Mixture
Never use straight gasoline in your unit.
This will cause permanent engine damage
and void the manufacture’s warranty for that
product. Use regular grade unleaded gasoline
mixed with 2-cycle engine oil in 40:1 ratio for
best results. Never use a fuel mixture that has
been stored for over 60 days.
gASOLINE - The lowest recommended
octane rating is 90. If you run the engine on
gasoline with a lower octane rating than 90
so-called “knocking” can occur. This leads to
an increased engine temperature which can
result in serious engine breakdown.
TWO-STrOKE OIL - For the best results use
premium grade two-stroke oil intended for air
cooled engines. Do not use any 2-cycle oil
product with a recommended mixing ratio of
100:1. If needed, contact your dealer when
selecting oil.
REMEMBER: Mixing ratio: 40:1
Never use two-stroke oil intended for water
cooled outboard engines or four-stroke
engines.
WArNINg
!
WArNINg
!
Gear head
Hollow anged
washer
String head assembly
Loosen
Tighten
Gear head
Hollow anged washer
Flanged washer
Cupped
washer
Nut
10” 3 tooth
steel blade
Fig. 6
Fig. 7
Slot
Slot
