E. quick select Heat Pump (soft key 5)
o With quick select “Heat Pump Function”, it is possible to make
following adjustments:
-Manually operated defrosting (only for air to water heat pumps)
-Operating mode
-Set and current values (temperatures, operating hours etc.)
Example:
To view the temperature values and the operating hours, just
push the Soft key 4. To list the temperatures and operating
data, just turn button B. To return to the above shown display,
just push ESC-button.

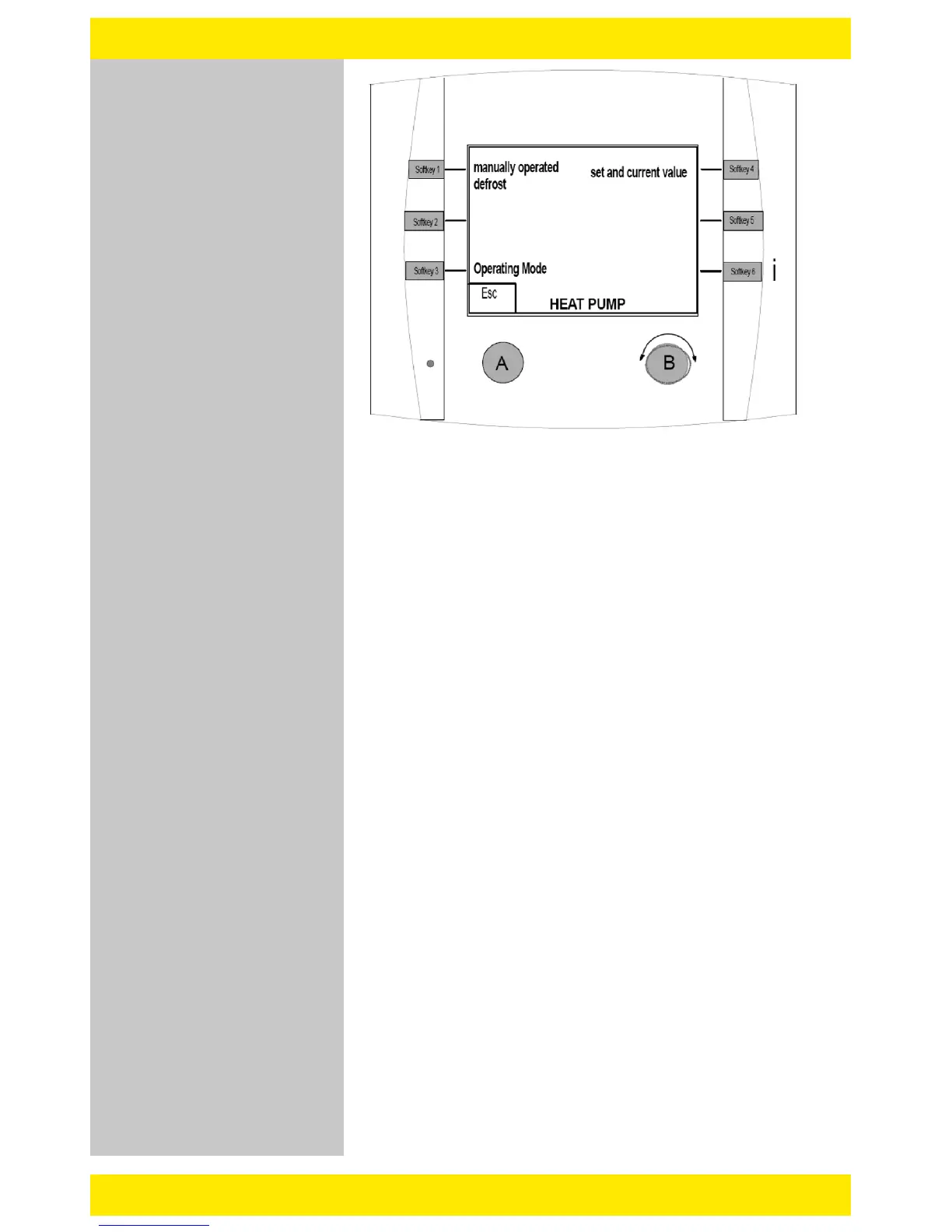

view after
pushing soft
key 5
