Hayter Double 3 - Repair Parts

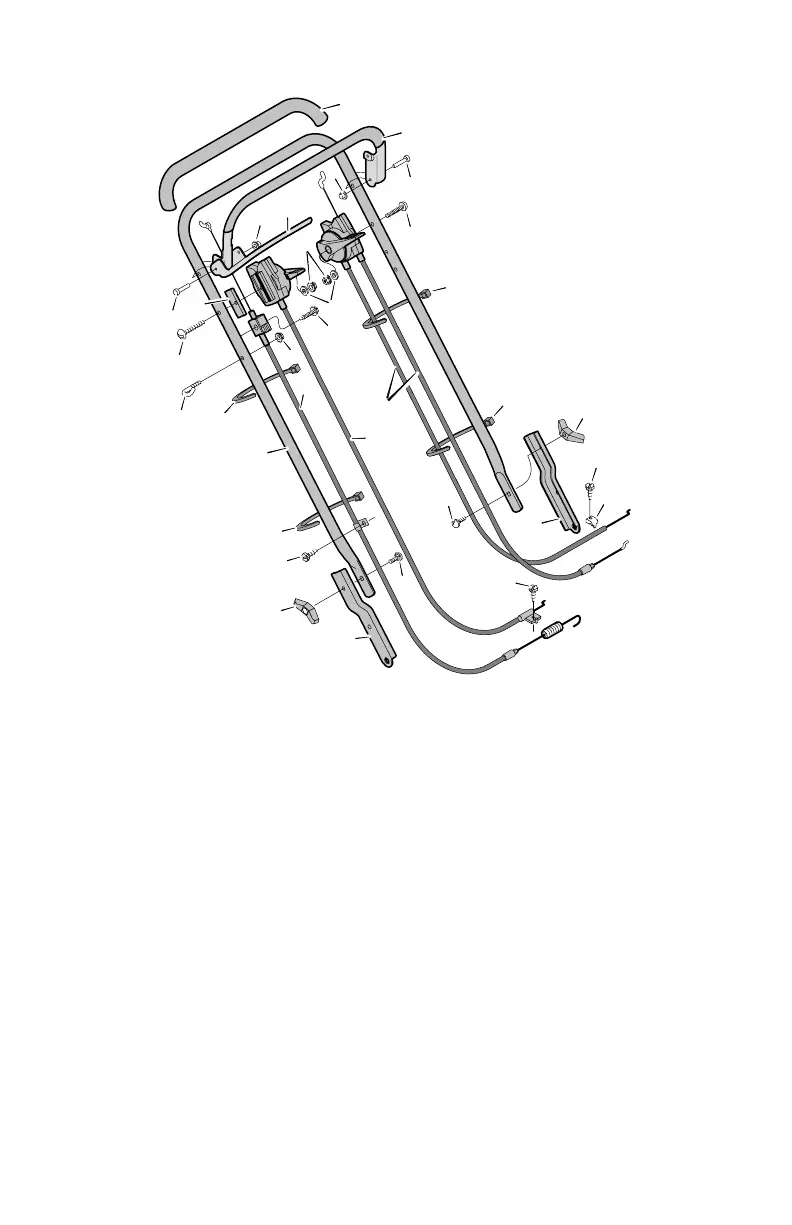

MODEL 533L REPAIR PARTS
23
F−96498
13
13
13
13
18
22
25
24
24
21
21
22
8
8
15
4
4
20
19
16
12
17
7
2
10
23
23
1
3
6
9
5
11
KEY
NO. DESCRIPTION PART NO.
KEY
NO. DESCRIPTION PART NO.
1 Stop Lever 71567
2 Grip, Foam 71637
3 Pin 29x102
4 Push On Cap 28x42
5 Lever, Drive 71566
6 Pin 29x101
7 Spacer 71635
8 Locknut 15x116
9 Bolt 1x152
10 Bolt 1x151
11 Washer 17x38Z
12 Guide, Rope 43956
13 Fastener, Cable 71372
15 Screw 26x256
16 Cable, Drive 71593
17 Throttle and Stop Cable 71594
18 Handle 71713E701
19 Control, Speed 71595
20 Screw 26x259
21 Bolt, Carriage 2x81
22 Knob 71495
23 Bracket, Handle 71317E701
24 Screw 26x268
25 Clamp 42294
