Hayter Double 3 - Page 27

MODEL 533L REPAIR PARTS
27
F−96498

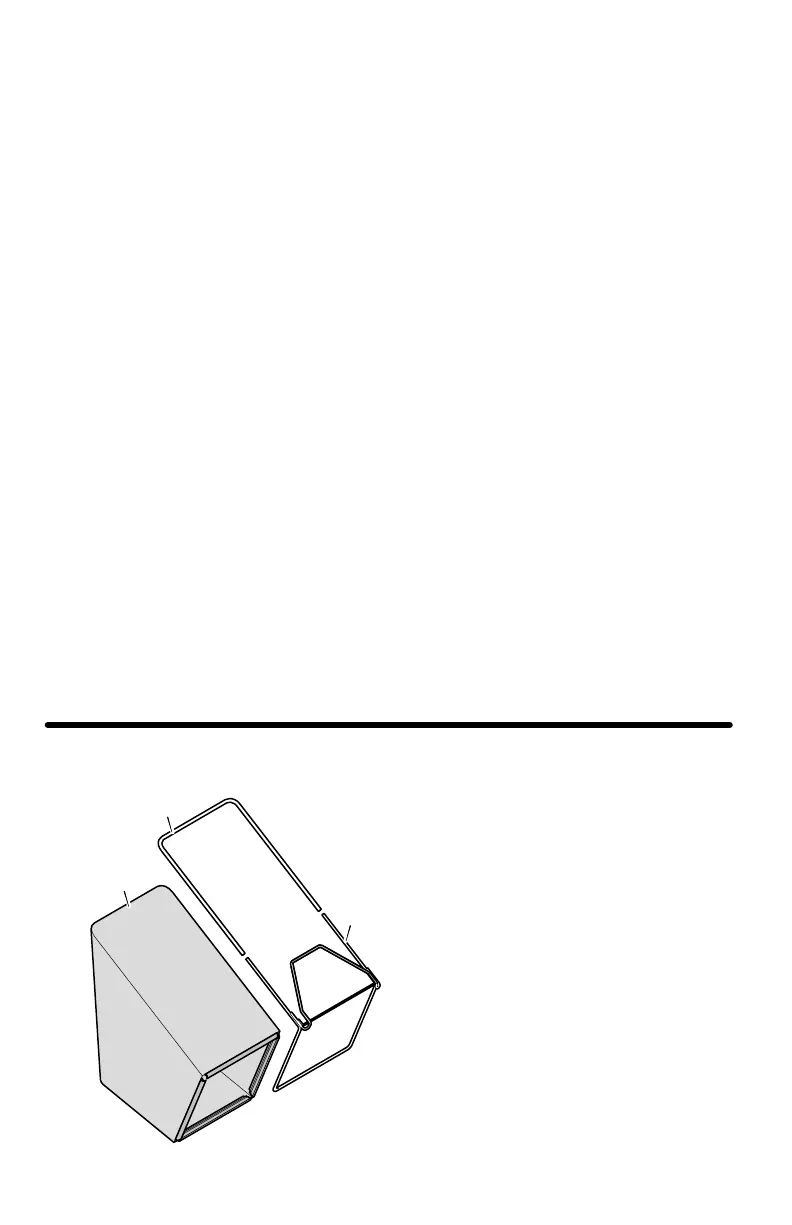

KEY
NO. DESCRIPTION PART NO.
KEY
NO. DESCRIPTION PART NO.
1 Belt 37x77
2 Adaptor, Blade 71285
3 Locknut, Flange 15x88
4 Arm, Idler 71309Z
5 Pulley, Idler 71054
6 Screw 26x216
7 Bolt 1x141
8 Bracket, Transmission 71376Z
9 Spring, Extension 165x108
10 Locknut, Flange 15x84
11 Screw 26x275
12 Washer 17x186
13 Gear, Left Pinion 71287
14 Bearing, Lifter 43788
15 Support, Axle 71411
16 Index, Height Adjuster 71368E701
17 Pin, Hair 31x10
18 Arm, Clutch 400312
19 Support, Clutch 400313
20 Locknut 190x15
21 Pulley, Transmission 71288
22 Arm, Shift 400311
23 Key, Woodruff 400314
24 Pin, Drive 43629
25 Transmission 71374
26 Shield, Axle 43649
27 Support, Wheel 71370E701
28 Gear, Right Pinion 71286
29 Housing (Green) 71801E541
30 Locknut, Flange 15x68
31 Screw 26x259
32 Bolt, Shoulder 9x49
33 Bolt, Shoulder 9x48
1
2
3
KEY
NO. DESCRIPTION PART NO.
1 Tube, Grass Bag 71307
2 Bag 71714
3 Frame 71303
