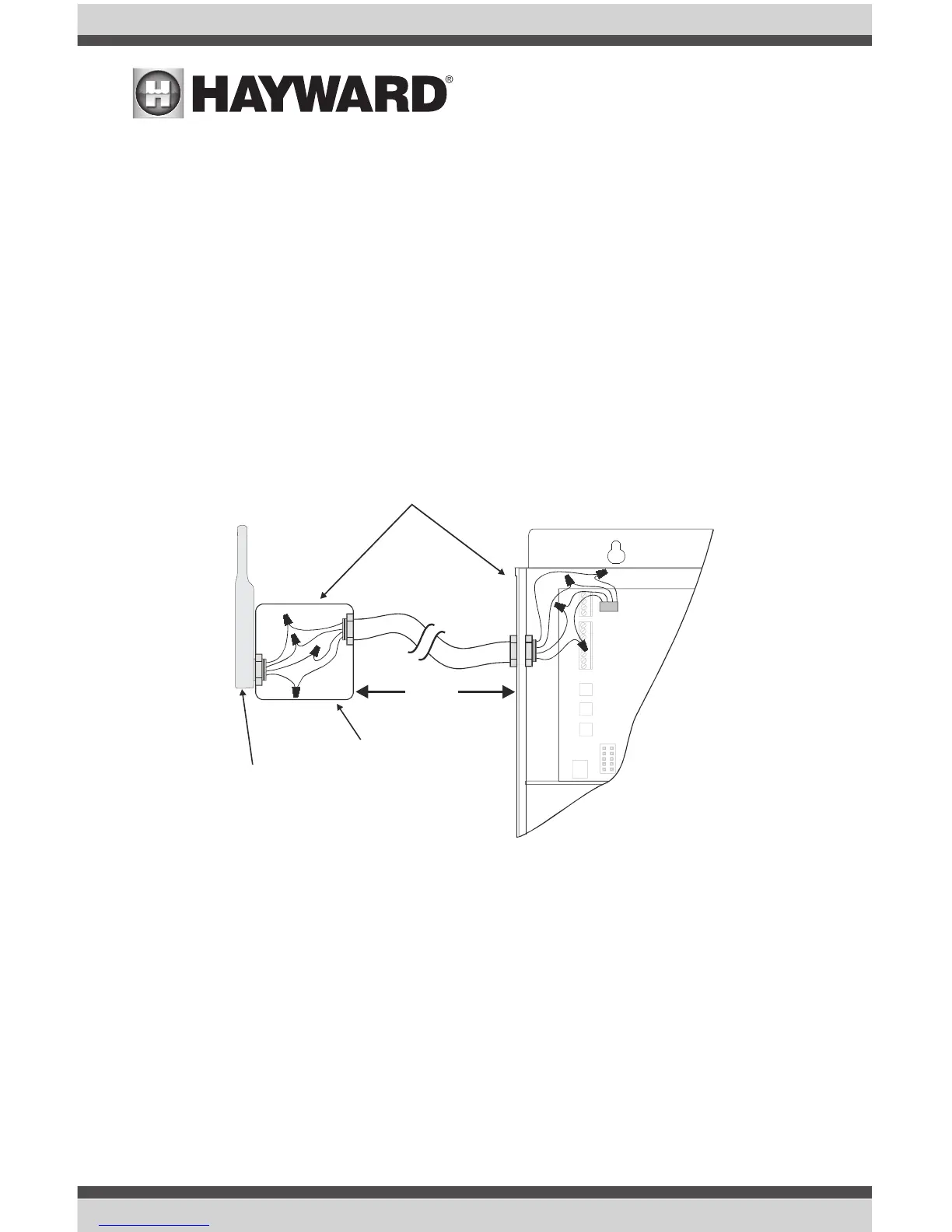

Remote Mounting of the Base Station
The Base Station can be mounted up to 500 feet away from the Pro Logic or Aqua Logic control
unit. This feature is helpful if the main control unit is located a long distance from the pool area
or if there are buildings that may interfere with the radio communication between the Base Sta-
tion and the remote devices.
1. Mount the Base Station on an standard, outdoor rated electrical box.
2. Cut each of the 4 wires in the Base Station “pigtail” cable and then install the connec-
tor half into the “Wireless Connector” on the main printed circuit board (PCB) in the Pro
Logic/Aqua Logic control unit.
3. Use a 4 conductor cable and splice both ends of the cable making sure that the colors
match up correctly.
Operation
Every Base Station is manufactured with a unique ID code. This allows private, secure commu-
nication with all of your remote devices while ignoring any signals transmitted by other wireless
devices including any other Pro Logic/Aqua Logic controls in the neighborhood.
IMPORTANT: Before trying to use any remote device, you must “teach” the correct ID code to the
remote device so it knows which Base Station to communicate with. Refer to the Pro Logic/Aqua
Logic Operation Manual or the manual for your remote device for “teaching” instructions.
The Base Station and remote devices are programmed with a sophisticated protocol that auto-
matically switches frequencies if other devices are interfering. In the unlikely event that it can not
find a usable frequency, it may be necessary to change channels. Refer to the Pro Logic/Aqua
Logic Operation Manual for instructions.
