Hayward MaxFlo XE - Replacement Parts; Tristar XE

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
20

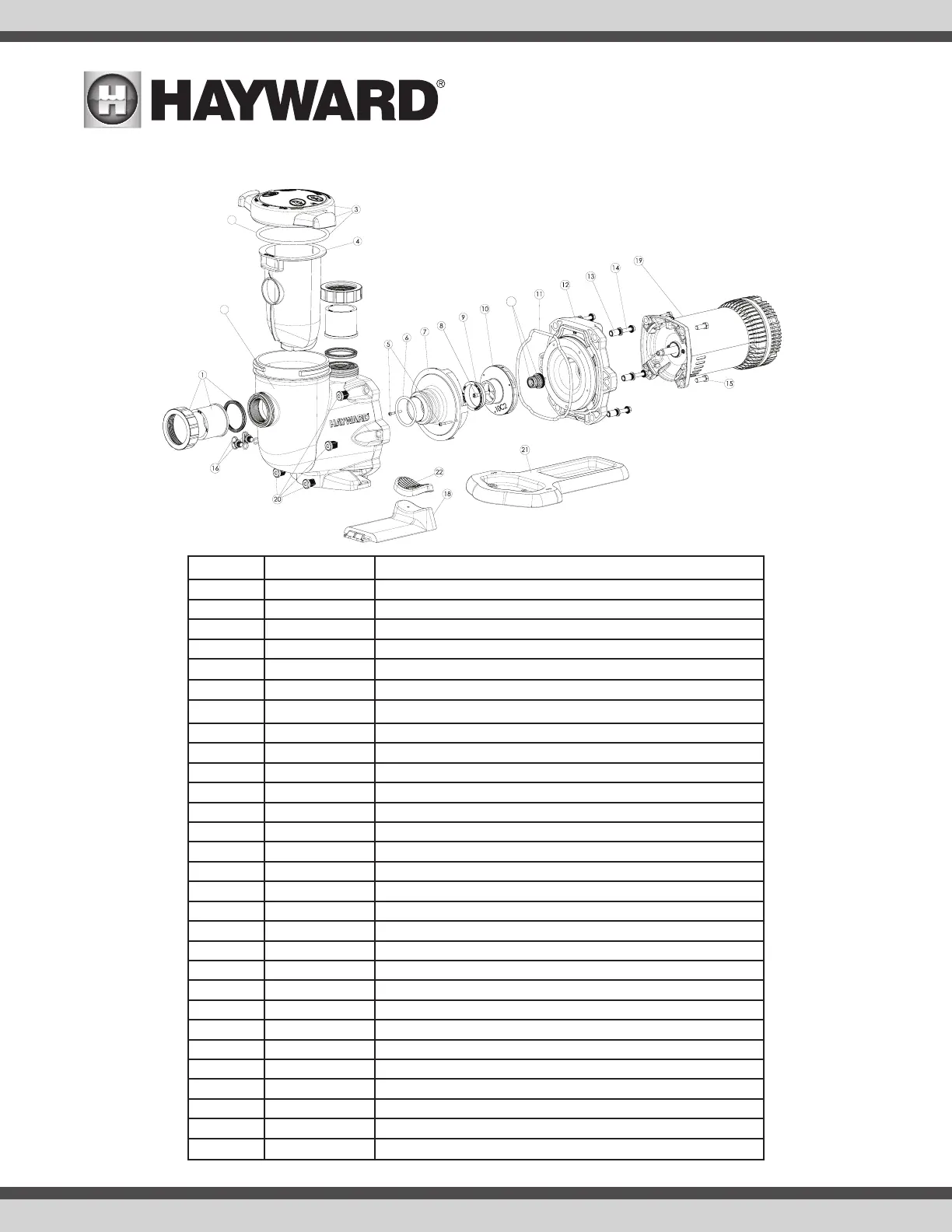

Replacement Parts
Ref. No. Part No. Description
1 SPX3200UNKIT Union Connector Kit (Includes 2 Nuts, Connectors & Gaskets)
2 SPX3200A Pump Strainer Housing, 2” x 2 1/2” with Drain Plugs
3 SPX3200DLS Strainer Cover Kit (Includes Strainer Cover, Lock Ring & O-Ring)
4 SPX3200M Strainer Basket
5 SPX3200Z8 Diffuser Screw
6 SPX4000Z1 Diffuser O-Ring
7 SPX3200B3 Diffuser
8 SPX3200Z1 Impeller Screw
9 SPX3021R Impeller Ring
10A SPX3207C 1.25THP Impeller with Impeller Screw
10B SPX3210C 1.85THP Impeller with Impeller Screw
10C SPX3215C 2.25THP Impeller with Impeller Screw
11 SPX3200T Housing O-Ring
12 SPX3200E Seal Plate
13 SPX3200Z211 Housing Insert/Seal Plate Spacer Kit
14 SPX3200Z3 Housing Bolt
15 SPX3200Z5PAK4 Motor Bolt (package of 4)
16 SPX4000FG Drain Plug with O-Ring
17 SPX3200S Strainer 0-Ring
18 SPX3200GA Motor Support
19A SPX3207X10XEPE 1.25 HP Power End includes #5-#12, #15, #18, #19, #22, #23
19B SPX3210X15XEPE 1.85 HP Power End includes #5-#12, #15, #18, #19, #22, #23
19C SPX3215X20XEPE 2.25 HP Power End includes #5-#12, #15, #18, #19, #22, #23
20 SPX3200Z211 Housing Insert/Seal Plate Spacer Kit
21A SPX3200WF Optional Riser Base (aligns with Pentair
®
WhisperFlo
®
pump*)
21B SPX3200SR Optional Riser Base (aligns with Pentair
®
WhisperFlo
®
pump*)
22 SPX3200Q2 Motor Support Adapter
23A SPX3200SA Shaft Seal Assembly
23B SPX4000SAV Shaft Seal Assembly (Viton)
TriStar XE
17
2
23
